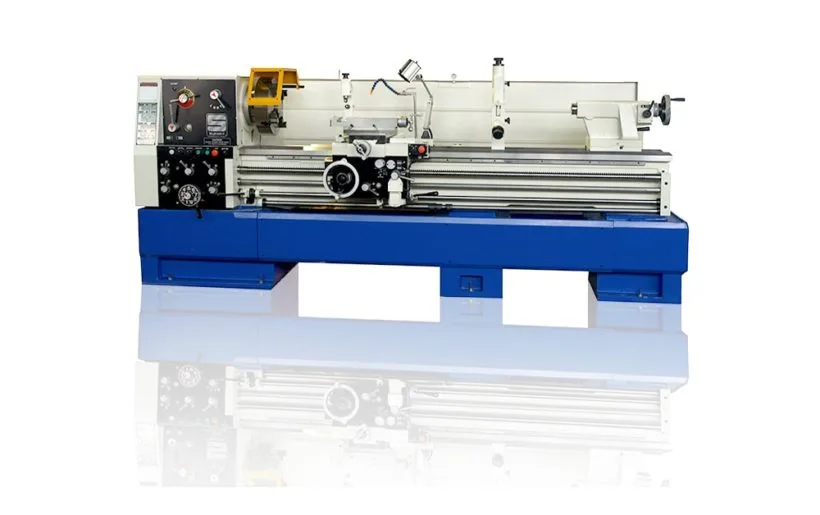

NEW SUMMIT 22″ PRECISION
Overview
Specs
Swing over bed: 22 in.
Swing over cross slide: 12.5 in.
Swing over gap: 32 in.
Distance between centers: 60 in., 80 in., 120 in., 160 in.
Hole through spindle: 4.125 in.
Spindle speeds: 12 speeds, 35 – 1,250 RPM (clutched headstock)
Spindle nose: D1-8 Camlock
Tailstock spindle (quill) diameter: 3 in.
Tailstock spindle (quill) travel: 6.5 in.
Tailstock spindle taper: MT #5
Threads per inch: 2-28 TPI (36 ranges)
Metric threads: 0.8-14 mm (65 ranges)
Bed width: 16 in.
Main drive motor: 15 HP
Equipped With
Standard Accessories: Thread dial, steady rest, follow rest, coolant system, taper attachment, work light, full-length splash guard, 3-jaw chuck, 4-jaw chuck, rapid traverse on carriage
Optional Accessories: Digital readout (DRO) system, Aloris quick-change tool post with holders, larger chucks, live center
