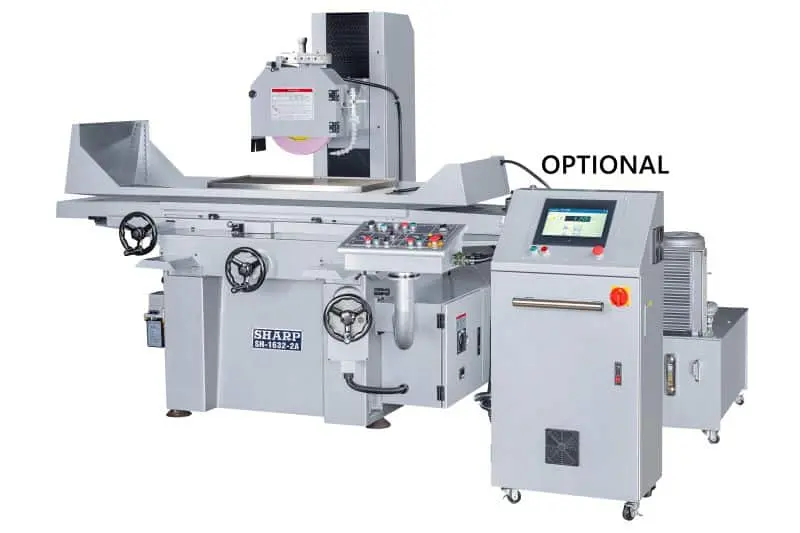

NEW SHARP SH-1632-2A
Specs
Max Grinding Length: 24 in. / 610 mm
Max Grinding Width: 11 in. / 279 mm
Center Height: 24 in. / 600 mm
Table Size: 16 x 32 in. / 400 x 800 mm
Longitudinal Travel: 36 in. / 914 mm
Cross Travel: 17.6 in. / 447 mm
Longitudinal Hand Feed Per Revolution: 0.1 in. / 2.54 mm
Longitudinal Hydraulic Feed: 6.6-82 ipm / 167.6-2,082.8 mm/min
Cross Hand Feed Per Revolution: 0.1 in. / 4 mm
Cross Hand Wheel Graduation: 0.0005 in. / 0.02 mm
Cross Intermittent Feed: 0.0039-0.39 in./feed / 0.1-10 mm/feed
Cross Continuous Traverse Feed: 39.37 in./min / 1000 mm/min
Vertical Hand Feed Per Revolution: 0.05 in. / 1.27 mm
Vertical Hand Wheel Graduation: 0.0001 in. / 0.00254 mm
Vertical NC Down Feed: 18.9 ipm / 480.06 mm/min
Spindle Motor: 5 HP / 3.72 KW
Spindle Speed: 1,720 rpm
Power Consumption (220V): 5.4 KVA / 25 amps (8KVA / 35 amps)
Power Consumption (440V): 5.4 KVA / 12.5 amps (4KVA / 5.5 amps)
Voltage: 220V/440V
Phase: 3 phase
Equipped With
Standard Accessories: Coolant System (25 Gal.), Wheel Balancer, Wheel Balancing Stand & Arbor, Ballscrew on Cross Feed, Electronic Crossfeed & Stroke Setting, Wheel Flange, Grinding Wheel 14” x 1.5” x 5” (SH-1632), Auto Lube System, Spindle head rapid up & down, Wired 220V or 440V. Please specify, Splash guard both front and back, 2-way auto (longitudinal and cross), Hydraulic table (w/ over travel protection) with pre-set functions, Auto crossfeed (intermittent and continuous mode), Slide ways are hand scraped and TURCITE coated, Preset hydraulic table speed control (6 fpm – 83 fpm), Extensive ribbing work table design, Double longitudinal “V” ways and cross “V” ways, Extra wide bed, 5 HP motor

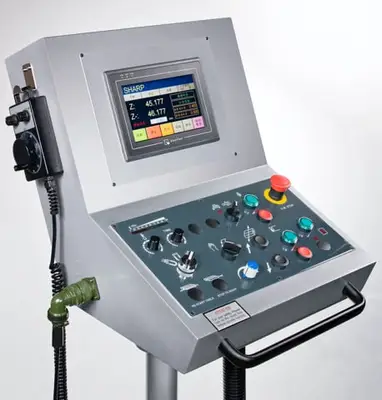

Optional Accessories: NC spindle down feed with touch screen, servo motor, ballscrew, Auto parallel dresser, 15HP Upgraded from 10HP, Coolant System w/Paper Filter & Magnetic Separator (30 Gal), Parallel Dresser (Manual), Parallel Dresser (Semi-Automatic), Spare Wheel Adaptor (Flange), Radius and Angle Dresser, Mist collection system, Optional NC downfeed with ballscrew and servo feed
