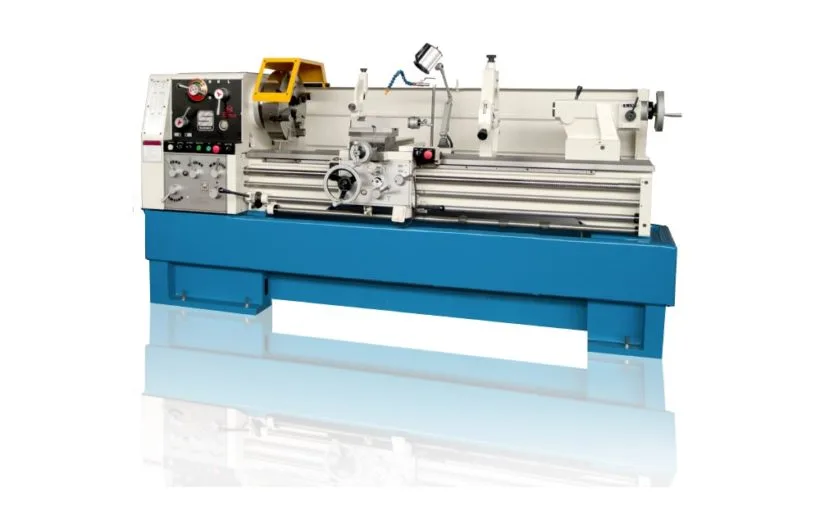

NEW SUMMIT 18″/20″ BIG SWING
Specs
Swing over bed (18″ Series): 18 in.
Swing over bed (20″ Series): 20 in.
Swing over cross slide (18″ Series): 11.25 in.
Swing over cross slide (20″ Series): 13.25 in.
Swing over gap (18″ Series): 28 in.
Swing over gap (20″ Series): 30 in.
Distance between centers: 40 in., 60 in., or 80 in.
Hole through spindle (18″ Series): 3 in.
Hole through spindle (20″ Series): 4 in.
Spindle speeds: 12 speeds, 32 – 1,500 RPM
Spindle nose: D1-8 Camlock
Tailstock spindle (quill) diameter: 3 in.
Tailstock spindle (quill) travel: 6 in.
Tailstock spindle taper: MT #5
Threads per inch: 2-72 TPI (45 ranges)
Metric threads: 0.2-14 mm (42 ranges)
Bed width: 13 in.
Main drive motor: 10 HP
Equipped With
Standard Accessories: Thread dial, steady rest, follow rest, coolant system, taper attachment, work light, full-length splash guard, 3-jaw chuck, 4-jaw chuck, rapid traverse on carriage
Optional Accessories: Digital readout (DRO) system, Aloris quick-change tool post with holders, larger chucks, live center
