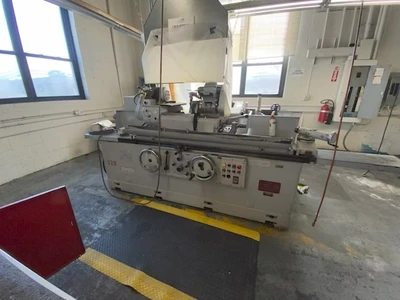

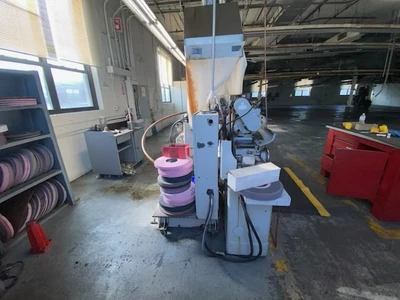

USED 1979 Toyoda GUP32X100, 1979, SWING DOWN ID., FULL AUTOMATIC

             12.6" X 40" TOYODA

  UNIVERSAL I.D./O.D. CYLINDRICAL GRINDER

 *** HIGH-PRECISION JAPANESE MADE MACHINE TOOL! ***

MODEL:GUP32X100     S/N: RB 3933    NEW: DECEMBER, 1979

CAPACITY:

MAX. SWING OVER TABLE ................ 12.6"

DISTANCE BETWEEN CENTERS ............. 40"

MAX. LOAD BETWEEN CENTERS ............ 330 LBS.

TABLE:

TABLE SWIVELS, COUNTERCLOCKWISE ...... 10°

LONGITUDINAL TABLE TRAVERSE SPEED .... 2" TO 157" IPM

WHEELHEAD:

WHEELHEAD SWIVELS LEFT & RIGHT ....... 30°

GRINDING WHEEL SIZE .................. 14" x 2" x 5"

WHEEL SPEEDS (2) ..................... 1650/2150 RPM

TOTAL STROKE ......................... 11.6"

HANDWHEEL INFEED STROKE .............. 6.3"

ADDITIONAL STROKE BY SLIDING ON

 SUB-SLIDE BASE ...................... 3.7"

AUTOMATIC RAPID INFEED STROKE ........ 1.6"

AUTOMATIC INFEED AT TABLE REVERSALS .. 0.0001" TO .0016"

AUTOMATIC PLUNGE INFEED .............. YES

AUTO PLUNGE INFEED W/POSITIVE STOP ... 0 TO .0315"

MOVEMENT PER GRAD. OF HANDWHEEL ...... 0.0001"

MOVEMENT PER TURN OF HANDWHEEL ....... 0.040"

WORKHEAD:

WORKHEAD SWIVELS,

  COUNTERCLOCKWISE .................... 90°

  CLOCKWISE ........................... 30°

WORKHEAD SPINDLE TAPER ................ #4 MT

INFINITELY VARIABLE SPINDLE SPEEDS .... 16 TO 250 RPM

TAILSTOCK:

TAILSTOCK SPINDLE CENTER .............. #4 MT

TAILSTOCK QUILL TRAVEL ................ 1"

APPROX. MACHINE WEIGHT ................ 6,820 LBS.

APPROX. MACHINE DIMENSIONS ....... 98" x 64"W x 57"H

MACHINE FEATURES:

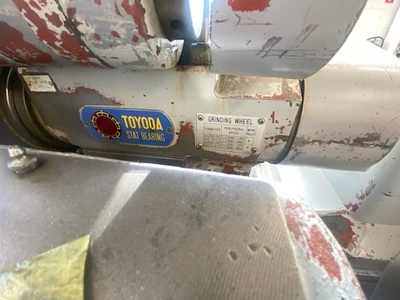

TOYODA "STAT" HYDROSTATIC WHEELHEAD BEARINGS

FULLY AUTOMATIC GRINDING CYCLE FEATURING:

 HYDRAULIC TABLE TRAVERSE

 AUTOMATIC INFEED

 AUTOMATIC PLUNGE INFEED

 POWER RAPID WHEELHEAD ADVANCE & RETRACTION            \

 SPARKOUT TIMER

 ADJUSTABLE TABLE TARRY

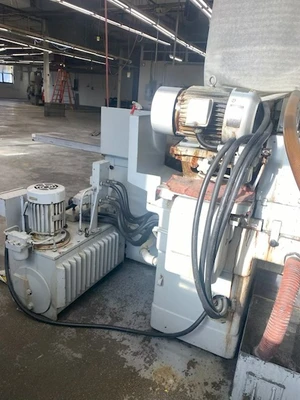

EXTERNAL HYDRAULIC SYSTEM

DUAL LIVE/DEAD WORKHEAD SPINDLE

ELECTRICAL SYSTEM CONNECTED ON MACHINE (NOT SEPARATE)

MOTORS ARE FOR 3/60/220-440 VOLT ELECTRICS

EQUIPPED WITH:

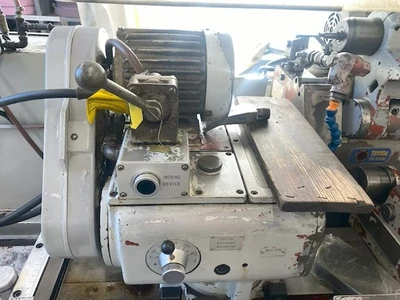

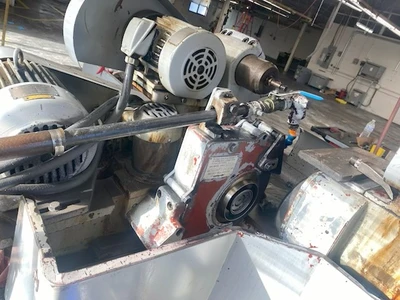

  SWING DOWN I.D. GRINDING ATTACHMENT

  (1) TOYODA I.D. SPINDLE.

  TABLE MOUNTED DRESSER

  TABLE MOUNTED ANGLE DRESSER

  EXTRA WHEEL HUB

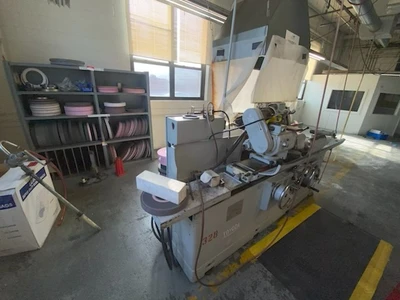

  MANY GRINDING WHEELS

  BACK PLATE

  T-SLOTTED FACE PLATE

  DIAL INDICATOR FOR TABLE SWIVEL

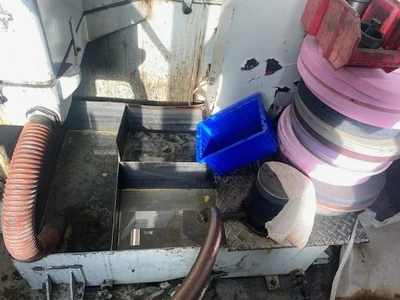

  EXTERNAL COOLANT SYSTEM

  MACHINE IS PRESENTLY WIRED FOR 3/60/220 VOLTS

** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **

** HIGH PRECISION JAPANESE MADE GRINDER **

** - EXCELLENT CONDITION & APPEARANCE - **

FOR MORE INFORMATION: Call Andy at 973-497-7600
