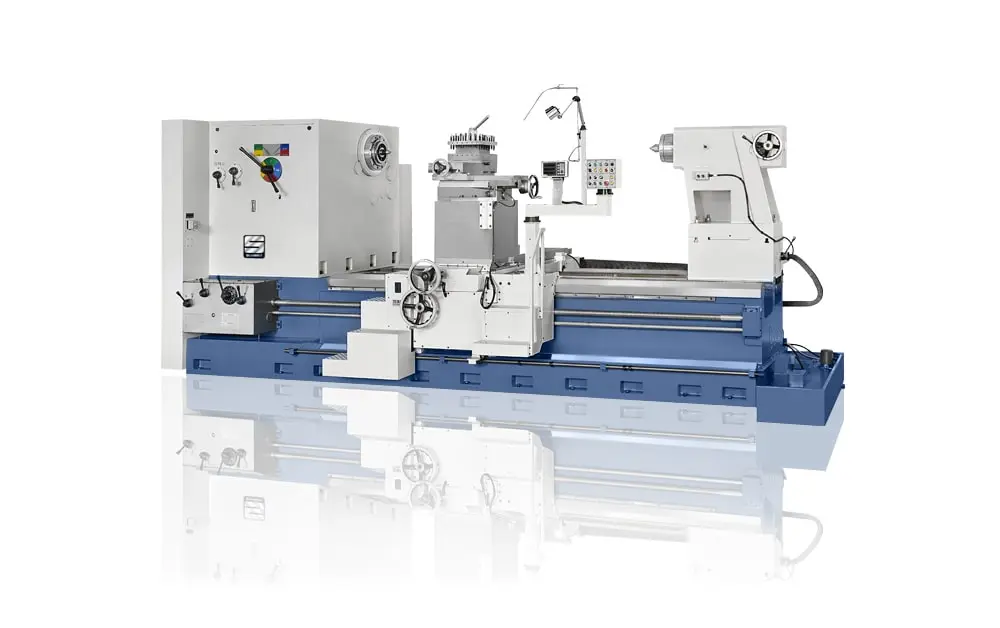

NEW SUMMIT 70″/80″/100″ BIG SWING
Specs
Swing over bed: 70.8 in. (70″ model) / 78.7 in. (80″ model) / 98.4 in. (100″ model)
Swing over cross slide: 53.1 in. (70″ model) / 61 in. (80″ model) / 80.7 in. (100″ model)
Distance between centers: 80 in. to 600 in.
Hole through spindle: 8 in.
Spindle speeds (70″ model): 5 – 400 RPM
Spindle speeds (80″ & 100″ models): Infinitely variable
Spindle nose: A2-15 Camlock
Tailstock spindle (quill) diameter: 11.4 in. (rotary quill)
Tailstock spindle (quill) travel: 11.8 in.
Tailstock spindle taper: MT #7
Cross slide travel: 49.2 in. (full length)
Bed width: 52.9 in.
Main drive motor: 75 HP
Max workpiece weight between centers: 55,000 lbs. (70″ model) / 77,000 lbs. (80″ & 100″ models)
Equipped With
Standard Accessories: Steady rest, follow rest, thread dial, chuck guards, halogen work light, coolant system, quick change gearbox (inch & metric threads), hardened & precision ground bed ways, 6-way rapid traverse, two-speed tailstock
Optional Accessories: Digital readout (DRO) system, quick-change tool post with holders, larger chucks, live center
