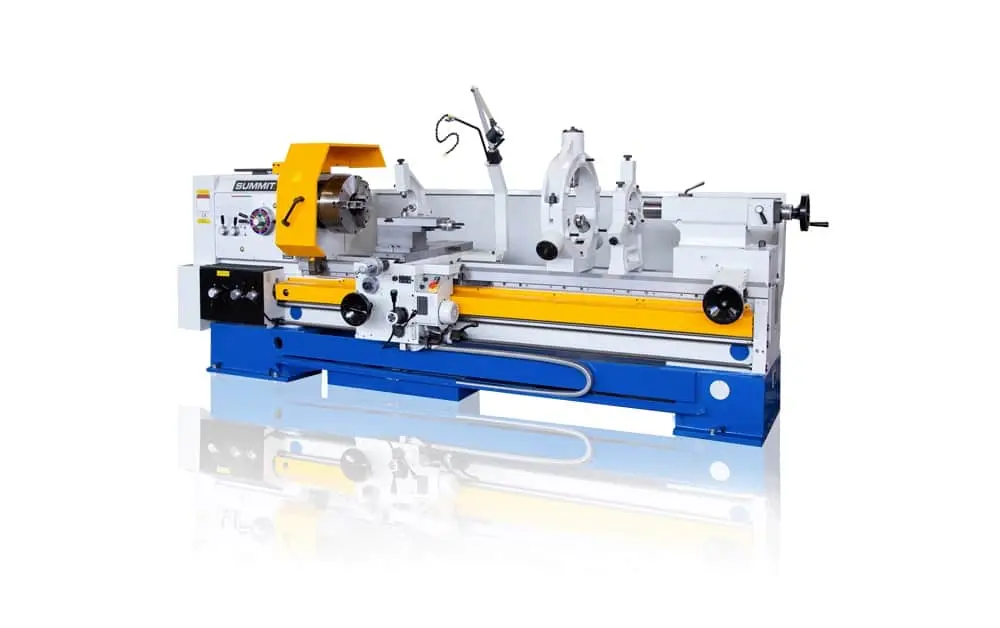

NEW SUMMIT 30″ BIG BORE
Overview
Specs
Swing over bed: 29.9 in.
Swing over cross slide: 20.5 in.
Distance between centers: 80 in., 120 in., 160 in., 200 in.
Hole through spindle: 5.1 in.
Spindle speeds: 17 speeds, 7.5 – 1,015 RPM
Spindle nose: D1-11 Camlock
Tailstock spindle (quill) diameter: 4.1 in.
Tailstock spindle (quill) travel: 8.8 in.
Tailstock spindle taper: MT #6
Threads per inch: 1.6-60 TPI (76 ranges)
Metric threads: 0.5-180 mm (76 ranges)
Bed width: 22 in.
Main drive motor: 25 HP
Equipped With
Standard Accessories: Standard steady rest, extra capacity steady rest with rollers, follow rest, thread dial, coolant system, taper attachment, 16″ 3-jaw chuck with solid jaws, carriage stop, work light, full-length splash guard, service wrenches & spanners, 2-speed tailstock, mechanical disc clutch, rapid traverse on carriage
Optional Accessories: Digital readout (DRO) system, Aloris quick-change tool post with holders, larger chucks, live center
