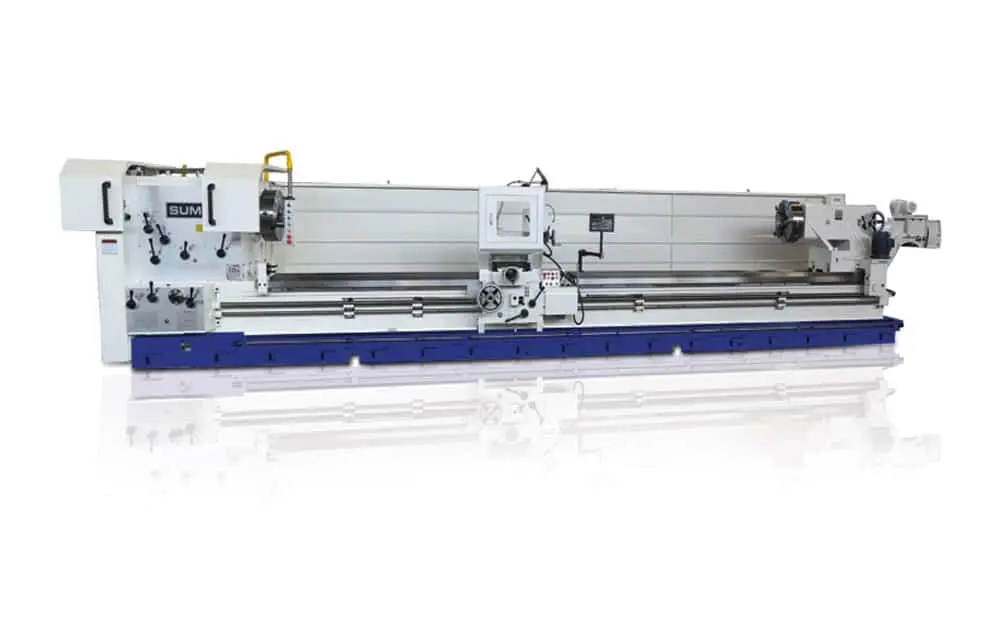

NEW SUMMIT 47″/55″/63″ BIG SWING HOLLOW SPINDLE
Specs
Swing over bed: 47 in. (47″ model) / 55 in. (55″ model) / 63 in. (63″ model)
Swing over cross slide: 32.6 in. (47″) / 40.5 in. (55″) / 48.4 in. (63″)
Distance between centers: 80 in. to 600 in.
Hole through spindle: 9 in. (47″) / 12.2 in. or 14.2 in. (55″) / 21 in. (63″)
Spindle speeds: 6-400 RPM (47″) / 5-300 RPM (55″) / 3-230 RPM (63″)
Spindle nose: A2-15 (47″) / A2-20 (55″) / A2-28 (63″)
Tailstock spindle (quill) diameter: 7.9 in. (standard)
Tailstock spindle (quill) travel: 11.8 in.
Tailstock spindle taper: MT #7
Threads per inch: 1-15 TPI (48 ranges)
Metric threads: 2-30 mm (48 ranges)
Bed width: 31.5 in.
Main drive motor: 30 HP (40 HP or 50 HP optional)
Equipped With
Standard Accessories: Quick change gearbox (inch & metric threads), hardened & precision ground bed ways, 4-way rapid traverse, two-speed tailstock, thread dial, steady rest, follow rest, full-length splash guard, chuck guards, taper attachment, halogen work light, coolant system
Optional Accessories: Quick change tool post with holders, digital readout (DRO) system, wide range of workholding devices, removable gap, rotary quill for tailstock, higher HP motors (40 HP or 50 HP)
