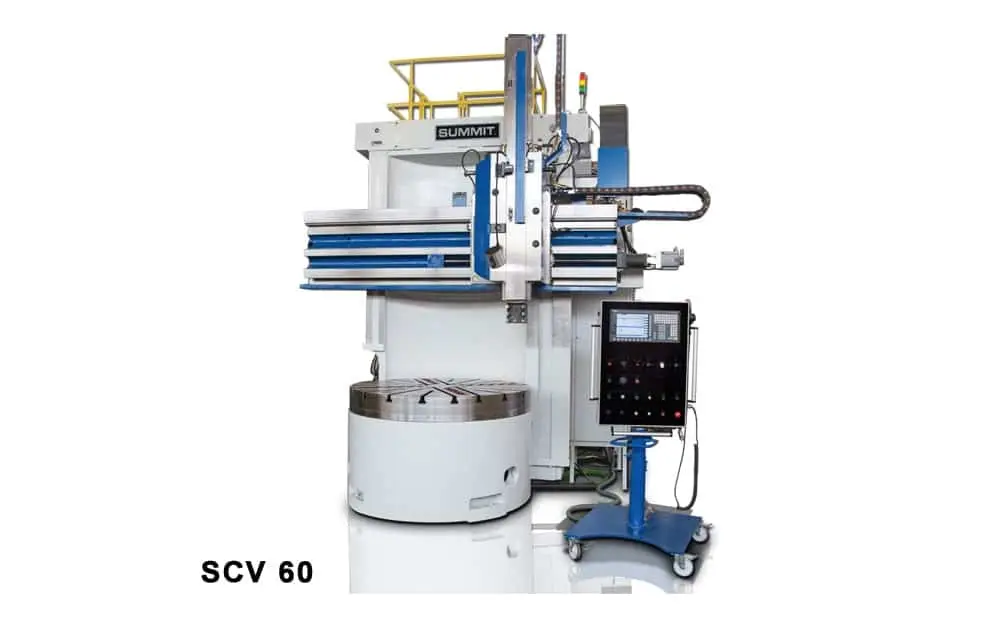

NEW SUMMIT SCV SERIES
Specs
Models Available: SCV48 / SCV60
Maximum diameter of swing: 55 in. (SCV48) / 63 in. (SCV60)
Maximum diameter of swing w/ slide head: 51 in. (SCV48) / 61 in. (SCV60)
Maximum machining height above table: 39 3/8 in. (SCV48) / 47 in. or 66 3/4 in. (SCV60)
Maximum weight of workpiece: 13,230 lbs. (SCV48) / 17,640 lbs. (SCV60)
Table Diameter: 47 in. (SCV48) / 57 in. (SCV60)
Table Speed (Infinitely Variable): 2.5-250 RPM (SCV48) / 2-220 RPM (SCV60)
Vertical heads (RH Pentagonal Turret / LH Plain Ram): 1 RH (SCV48) / 2 (SCV60)
Swivel of each vertical head: +/- 35°
Vertical travel right hand turret: 30 in.
Vertical travel left hand boring ram: N/A (SCV48) / 47 in. (SCV60)
Vertical travel of the side head: 35-7/16 in. (SCV48) / 47 in. (SCV60)
Horizontal travel of the side head: 25-1/2 in. (SCV48) / 27-1/2 in. (SCV60)
Vertical travel of Crossrail: 31-1/2 in. (SCV48) / 51 in. (SCV60)
Feeds (vertical & side heads): 16 ranges, 0.002 – 0.200 IPR
Rapid traverse for all heads: 98 IPM
Main drive motor (AC Brushless): 50/75 HP (SCV48) / 75/100 HP (SCV60)
Rail elevating motor: 5.5 HP (SCV48) / 10 HP (SCV60)
Rapid traverse motor: 4 HP
Equipped With
Standard Accessories: High precision ballscrews for vertical & horizontal head movement, precision hardened and ground gearing, power rapid traverse to all heads, constant surface speed controlled through PLC, centralized full-electric pendant control panel with built-in DRO, full-length Turcite tapered gibbing, chrome-plated hand wheels and dials, all axis driven by servo motors, heat treated and stress relieved castings, large diameter Timken type taper roller bearing, one vertical head with indexing pentagonal turret, one side head with standard tool holder, one vertical plain ram head (SCV60), precision hardened and ground crossrail guideways, totally enclosed electrical cabinet with PLC, pressurized lubrication system, set of four reversible table jaws, emergency stop switch, wipers on all ways, built-in leveling screws with mounting pads, set of service spanners
Optional Accessories: Additional heads or tooling configurations, digital readout enhancements
