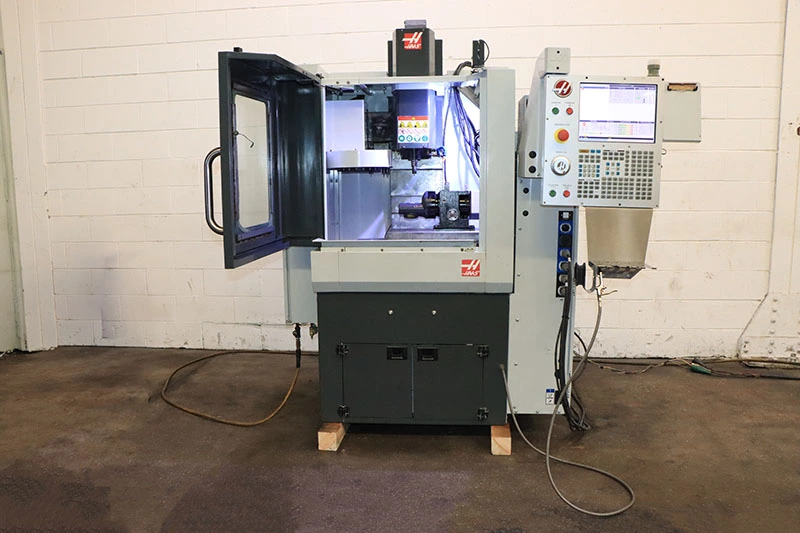

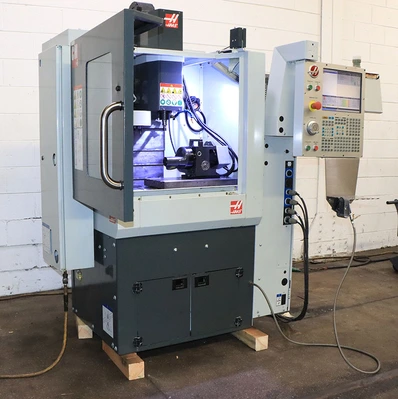

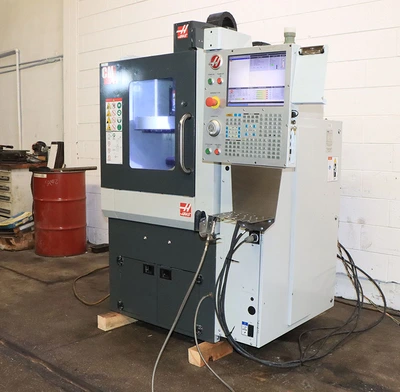

USED 2018 Haas CM-1 5-Axis, NextGen, TRT70 Table, 50,000 RPM

HAAS COMPACT MILL

5-AXIS MACHINING CENTER

MODEL: CM-1 w/TRT70 TABLE

S/N: 1150139, MFG: 2018

SPECIFICATIONS:

TABLE DIMENSIONS ...................... 22.5" X 10"

TABLE LOAD CAPACITY ................... 150 LBS.

X - AXIS TRAVEL ....................... 12"

Y - AXIS TRAVEL ....................... 10"

Z - AXIS TRAVEL ....................... 14"

SPINDLE NOSE TO TABLE ................. 2.6" - 16.6"

SPINDLE SPEED ......................... 50,000 RPM

MAIN MOTOR ............................ 5 HP

SPINDLE TAPER ......................... ISO/20

RAPID TRAVERSE ........................ 757 IPM

MAX. CUTTING .......................... 500 IPM

TOOL CHANGER .......................... 20 ATC

MAX. TOOL DIAMETER  ................... 2.3"

MAX. TOOL WEIGHT ...................... 5 LBS.

TOOL CHANGE TIME....................... 3.2 SECS

APPROXIMATE MACHINE WEIGHT ............ 2500 lbs.

EQUIPPED WITH:

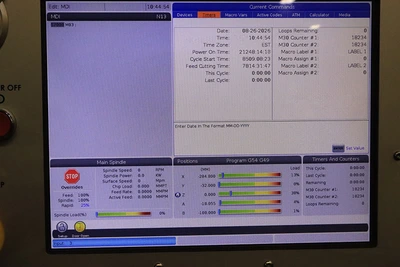

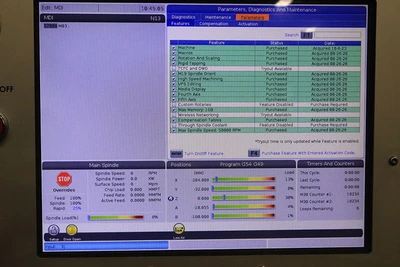

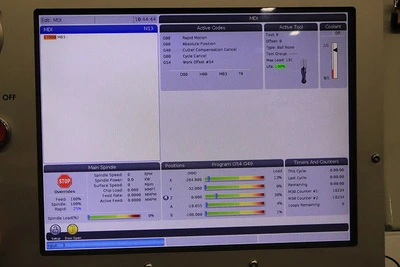

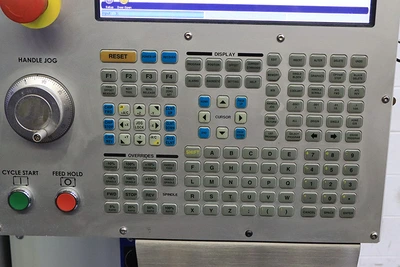

HAAS NEXTGEN 5-AXIS CONTROL:

  HIGH SPEED MACHINING, ROTATION & SCALING, MACROS,

  RIGID TAPPING, M19 SPINDLE ORIENT,

  MEDIA DISPLAY M-CODE, VISUAL PART PROG. (VPS EDITING)

  1GB MEMORY

4TH & 5TH AXIS DRIVES & WIRING

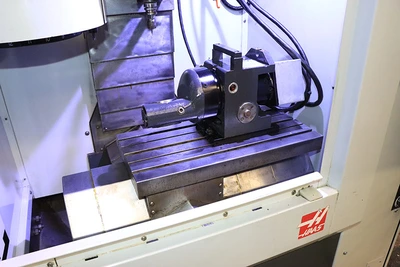

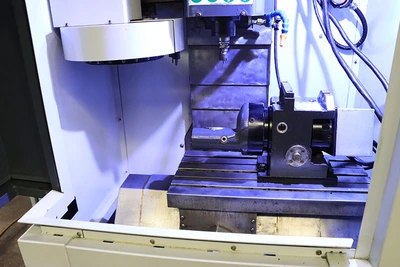

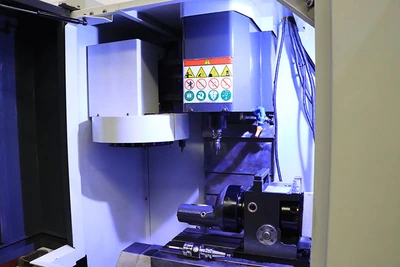

HAAS TRT70 DUAL AXIS TILTING ROTARY TABLE

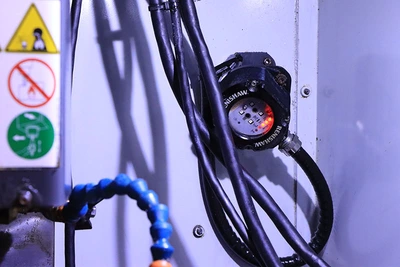

RENISHAW WIRELESS INTUITIVE PROBING SYSTEM (WIPS)

50,000 RPM SPINDLE (ISO 20 TAPER)

20 STATION AUTOMATIC TOOL CHANGER

REPLACEMENT COST, AS EQUIPPED $140,000

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE

FOR MORE INFORMATION: Call Sales at 973-497-7510
