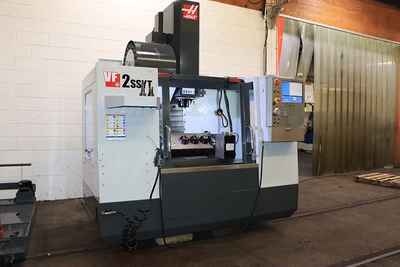

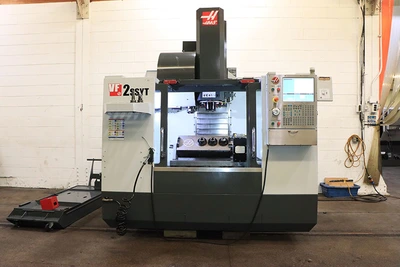

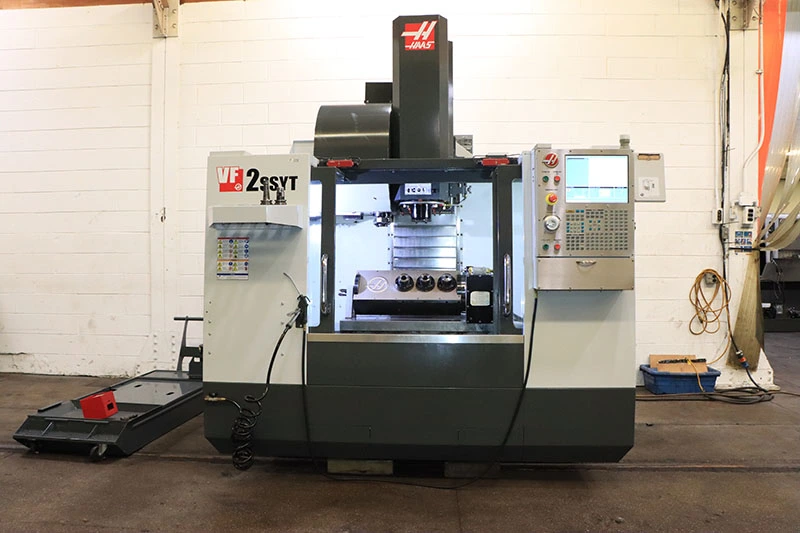

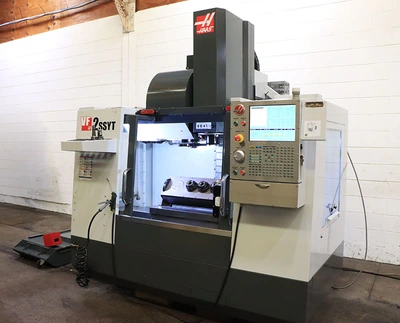

USED 2015 Haas VF-2SSYT 5-Axis, WIPS, 15,000 RPM, 24 ATC, BT40

HAAS VERTICAL MACHINING CENTER

MODEL: VF2SSYT, S/N: 1122667, NEW: 2015

SPECIFICATIONS:

TABLE SIZE ................. 36" x 18"

X-AXIS TRAVEL .............. 30" / 762mm

Y-AXIS TRAVEL .............. 20" / 508mm

Z-AXIS TRAVEL .............. 20" / 508mm

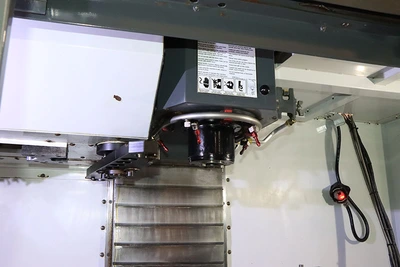

SPINDLE SPEED .............. 15,000 RPM

SPINDLE MOTOR .............. 30 HP

SPINDLE TAPER .............. BT 40

TOOL CAPACITY (ATC) ........ 24

RAPID TRAVERSE - X AXIS .... 1,400 IPM

RAPID TRAVERSE - Y AXIS .... 1,400 IPM

RAPID TRAVERSE - Z-AXIS .... 1,400 IPM

CUTTING FEEDRATE ........... 833 IPM

APPROXIMATE WEIGHT ......... 8,000 LBS

EQUIPPED WITH:

HAAS 5-AXIS CONTROL:

   ROTATION & SCALING, RIGID TAPPING, MACROS

   M19 SPINDLE ORIENT, HIGH SPEED MACHINING, ADV TOOL MGMT

   ETHERNET, USB PORT, 750MB EXPANDED MEMORY

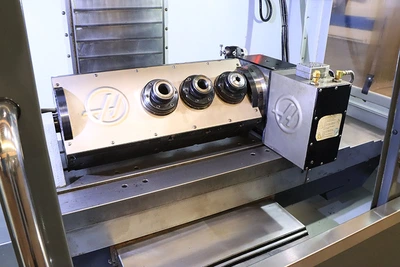

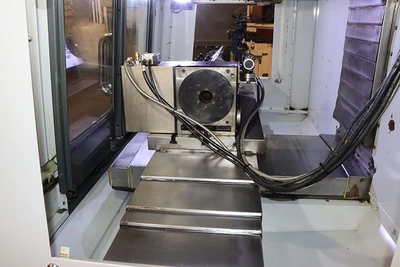

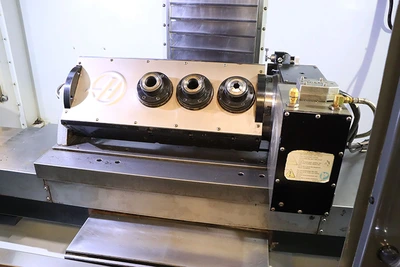

HAAS TC53 TILTING 3 HEADED 5C ROTARY TABLE

4TH & 5TH AXIS DRIVES + WIRING

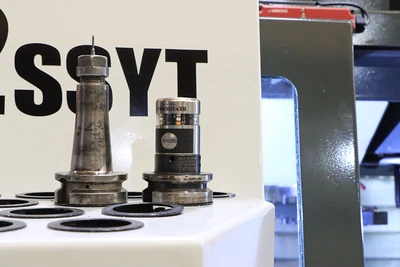

WIRELESS INTUITIVE PROBING SYSTEM (WIPS)

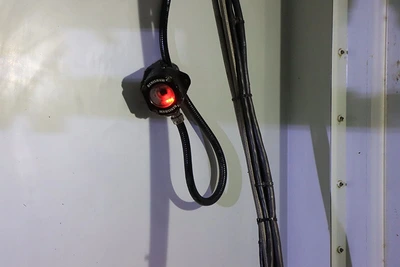

RENISHAW PART & TOOL PROBE

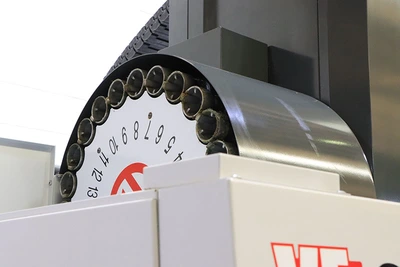

24 POSITION SIDE MOUNT AUTOMATIC TOOL CHANGER

COOLANT SYSTEM

REPLACEMENT COST FOR ABOVE HAAS VF-2SSYT AS EQUIPPED WITH  TABLE: $185,000

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE

FOR MORE INFORMATION: Call Sales at 973-497-7510
