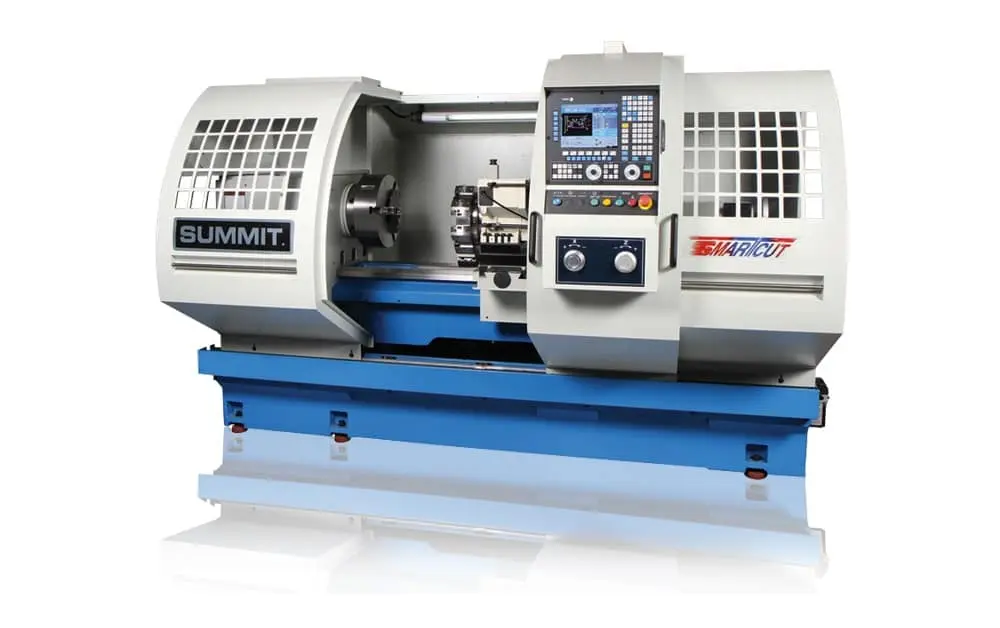

NEW SUMMIT SMARTCUT FLAT BED CNC
Specs
Models Available: SC22, SC26, SC30-4, SC30-6, SC32
Swing over bed: 22 in. (SC22) / 26 in. (SC26) / 30 in. (SC30-4 & SC30-6) / 31.5 in. (SC32)
Swing over cross slide: 13.4 in. (SC22) / 18 in. (SC26) / 22 in. (SC30-4 & SC30-6) / 20 in. (SC32)
Swing over gap: 30 in. (SC22) / 33 in. (SC26) / 37 in. (SC30-4 & SC30-6) / 43.3 in. (SC32)
Distance between centers: 40 in. to 160 in.
Hole through spindle: 3.312 in. (SC22) / 4.125 in. (SC26, SC30-4) / 6.1 in. (SC30-6) / 9.8 in., 12 in., or 14.9 in. (SC32)
Spindle speeds: Infinitely variable: 30-2000 RPM (SC22) / 22-1500 RPM (SC26, SC30-4) / 22-1000 RPM (SC30-6) / 4-600 RPM or 4-400 RPM (SC32)
Spindle nose: A2-8 (SC22) / A2-11 (SC26, SC30-6) / D1-11 (SC30-4) / A2-15 or A2-20 (SC32)
Tailstock quill diameter: 3 in. (SC22 to SC30) / 4.1 in. (SC32)
Tailstock quill travel: 6.25 in. (SC22) / 8.8 in. (SC26 to SC30) / 10.8 in. (SC32)
CNC Control: Fagor 8055TC with handwheels & self-teaching capability
Spindle motor: 15 HP (SC22) / 20 HP (SC26 to SC30) / 30 HP (SC32)
Equipped With
Standard Accessories: Fagor 8055TC CNC control with handwheels & self-teaching feature, steady rest with roller tips, follow rest, coolant system, work light, sliding enclosure doors, 3-jaw chuck (except SC32), front & rear 4-jaw chucks (SC32), hydraulic chuck with foot switch, automatic lubrication, full guarding, constant surface speed
Optional Accessories: Hydraulic steady rest, chip conveyor, bar feed interface, quick-change tool post with holders, live center
