NEW SUMMIT VS SERIES
Overview
Specs

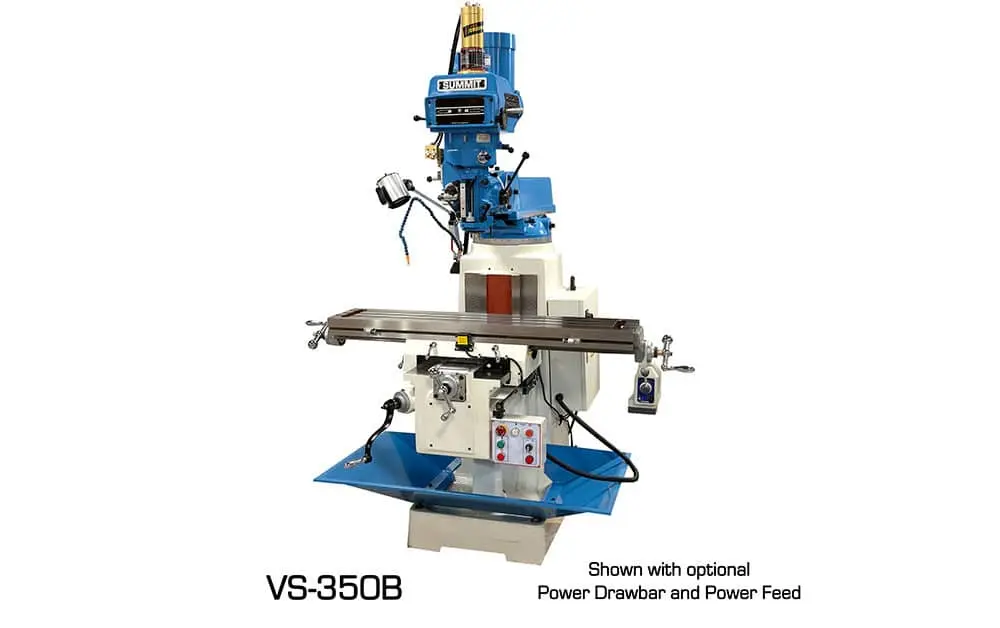

Models Available: VS-350B / VS-550B
Motor size: 3 HP (VS-350B) / 5 HP (VS-550B)
Spindle speeds: Infinitely variable, 60-4,200 RPM (VS-350B) / 80-3,500 RPM (VS-550B)
Spindle taper: R-8 (VS-350B) / NT40 (VS-550B)
Spindle travel: 5 in. (VS-350B) / 5.5 in. (VS-550B)
Spindle feed range: 0.0015 / 0.003 / 0.006 IPR
Head movement side to side: +/- 90°
Head movement front to back: +/- 45° (VS-350B only)
Table size: 10 in. x 50 in. (VS-350B) / 11 in. x 52 in. (VS-550B)
Longitudinal travel: 36 in. (VS-350B) / 32 in. (VS-550B)
Cross travel: 16 in.
Max workpiece weight: 850 lbs. (VS-350B) / 990 lbs. (VS-550B)
Over arm rotation: 360°
Over arm adjustment: 22 in. (VS-350B) / 24 in. (VS-550B)
Spindle nose to table: 2.5 in. – 18.5 in. (VS-350B) / 2 in. – 22 in. (VS-550B)
Equipped With
Standard Accessories: Heavy Meehanite cast construction, heavy box saddle, huge box type ways on knee, double table locks, Turcite-B inserted guideways, complete electrics with low voltage controls, way wipers for saddle and column, hardened & ground ways, one-shot lubrication, draw bar, way covers, built-in coolant system, halogen work light, clamping kit, service wrenches & tool box, R-8 collet set (VS-350B), power raise on knee (VS-550B), power draw bar (VS-550B)
Optional Accessories: Digital readout (DRO) system, power feed on X/Y/Z axis, air power draw bar, additional collets or tooling
