USED 1993 Kingston HJ-1100, Gap, Taper, 3&4 Jaw, 5C Collet, Steady

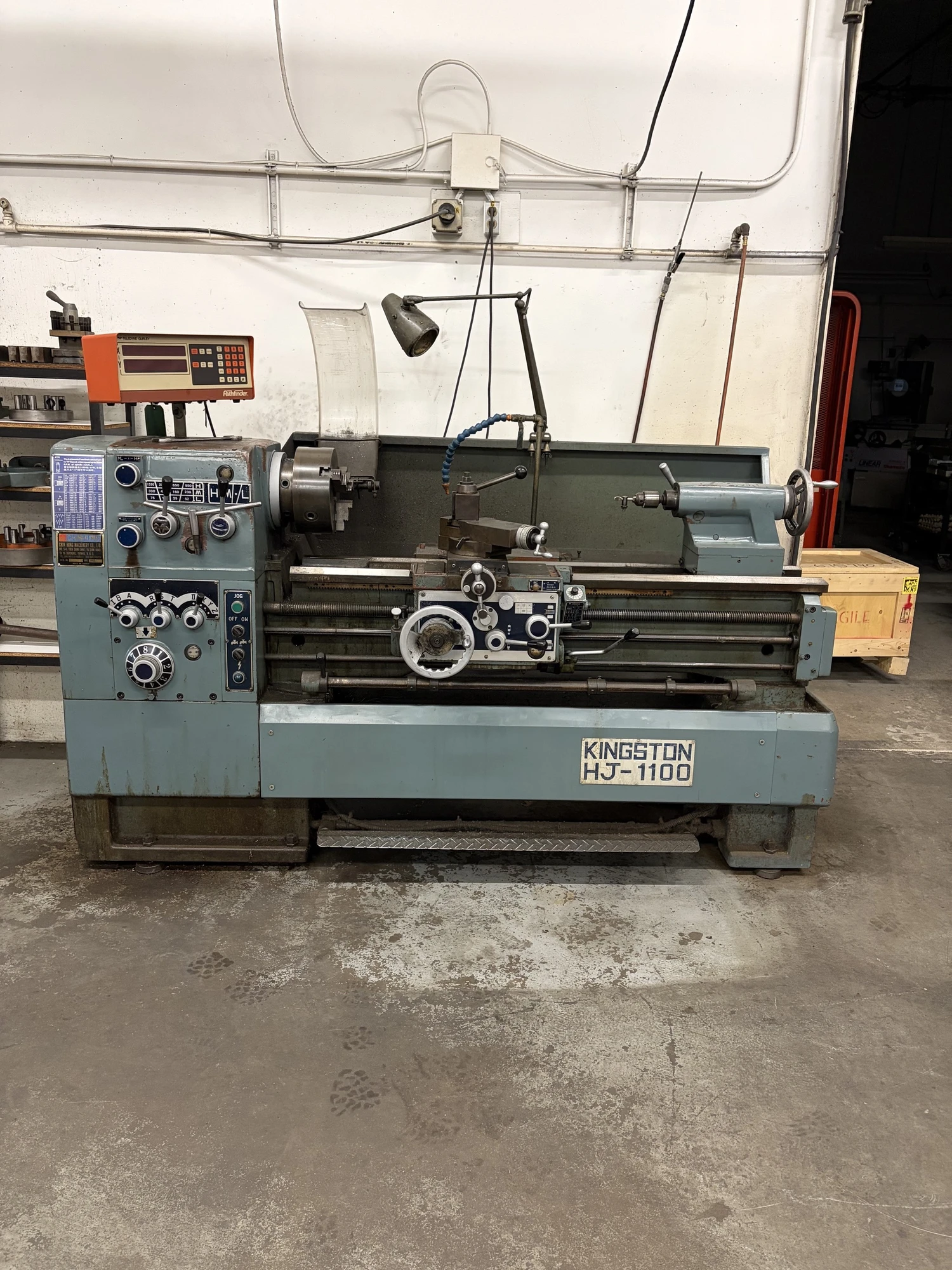

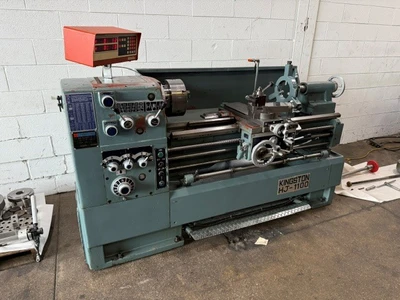

17"/24" X 43" KINGSTON REMOVABLE GAP BED LATHE

MODEL: HJ-1100,  NEW: 1992

SPECIFICATIONS:

SWING OVER BED ...................... 17"

SWING IN GAP ........................ 24"

SWING OVER CROSS SLIDE .............. 10-9/16"

DISTANCE BETWEEN CENTERS ............ 43-1/2"

SPINDLE BORE ........................ 2-1/4"

SPINDLE NOSE, CAMLOCK, SIZE ......... D1-6

SPINDLE SPEED RANGE (12) ............ 35 - 2,000 RPM

LONGITUDINAL FEED RANGE (16) ........ 0.0012 - 0.039 IPR

CROSS FEED RANGE (16) ............... 0.008 - 0.023 IPR.

ENGLISH THREADIN RANGE (44) ......... 2-72 T.P.I.

METRIC THREADING RANGE (39) ......... 0.2-14 MM

CROSS SLIDE TRAVEL .................. 10-2/5"

TAILSTOCK QUILL DIAMETER ............ 2-3/8"

TAILSTOCK SPINDLE TRAVEL ............ 5-7/8"

TAILSTOCK CENTER TAPER .............. #4 MORSE

WIDTH OF BED ........................ 11-3/4"

APPROX DIMENSIONS ................... 90" X 41" X 48"

APPROX WEIGHT ....................... 3,520 LBS

EQUIPPED WITH:

- REMOVABLE GAP BED

- INCH & METRIC THREADING CAPABILITY

- HARDENED BEDWAYS

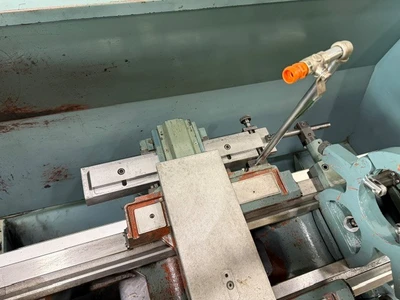

- TAPER TURNING ATTACHMENT

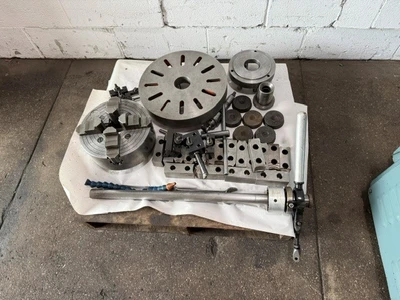

- 3-JAW CHUCK

- 4-JAW CHUCK

- 5C-LEVER TYPE COLLET CLOSER & NOSE PIECE

- STEADY REST

- QUICK CHANGE TOOLPOST w/HOLDERS

- FACEPLATE

- THREADING DIAL

- FOOT TREADLE OPERATED SPINDLE BRAKE

- FULL LENGTH CARRIAGE STOP BAR WITH ADJUSTABLE STOPS

- DRILL CHUCK FOR TAILSTOCK

- REMOVABLE CHIP PAN

- FULL LENGTH REAR SPLASH GUARD

- 7.5 HORSE POWER SPINDLE DRIVE MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE

FOR MORE INFORMATION: Call David at 973-497-7570
