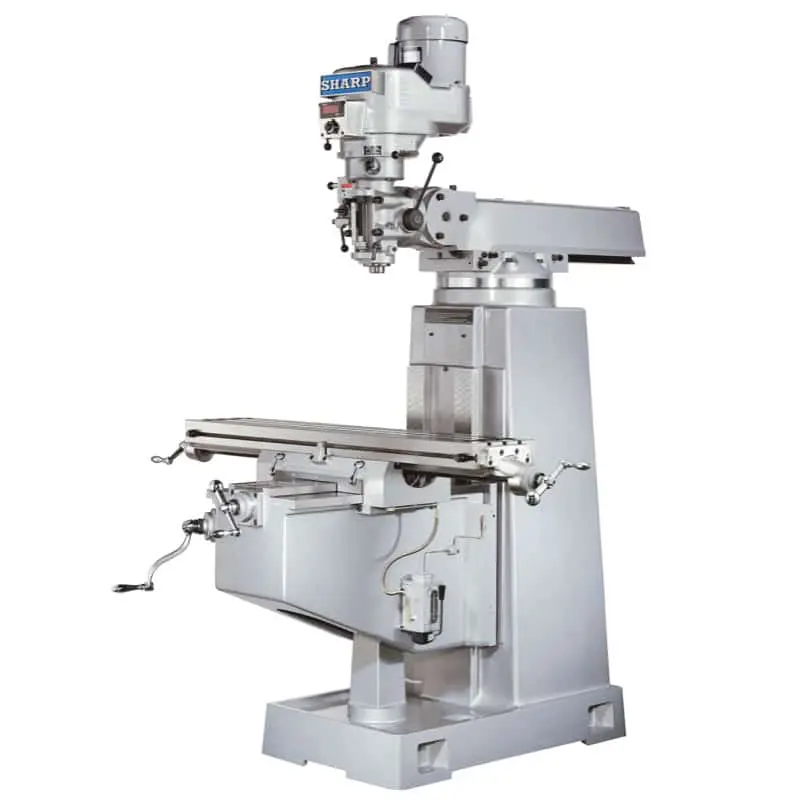

NEW SHARP TMV-DVS
Overview
Specs
Table Size: 10 x 54 in. / 254 x 1371.6 mm
T-slots (No., Size, Pitch): 3, 5/8 in., 2.5 in. / 3, 16 mm, 63.5 mm
Longitudinal Travel (X): 39 in. / 990.6 mm
Cross Travel (Y): 16.3 in. / 414.02 mm
Vertical Quill Travel (Z): 5 in. / 127 mm
Knee Travel: 15.3 in. / 388.62 mm
Ram Travel: 18.5 in. / 469.9 mm
Spindle Nose to Table: 5.37 – 16.9 in. / 136.3 – 429.26 mm
Spindle Speeds: 60 – 4500 rpm
No. of Spindle Speeds: Variable (Digital)
Spindle Nose: R-8
Quill Diameter: 3.37 in. / 85.59 mm
Quill Travel: 5 in. / 127 mm
Quill Center Taper: R-8
Quill Feeds (3 speeds): 0.0015, 0.003, 0.005 in./rev / 0.0381, 0.0762, 0.127 mm/rev
Head Swivel (Left/Right): 90°
Head Tilt (Up/Down): 45°
Spindle Motor: 3 HP / 2.23 KW
Voltage: 220V/440V
Phase: 3 phase
Equipped With
Standard Accessories: One Shot Lube System, Hard-Chromed Ways, Front and Rear Rubber Way Covers, Tool box with tools, Wired 220V or 440V
Optional Accessories: Auto Lube Pump with 2 Adjustments, “Sharp” Power Table Feed with Safety Handle, “Sharp” Power Cross Feed with Safety Handle, “Sharp” Power Knee Feed with Safety Handle, 6 in. “Kurt” Vise with Swivel Base, Right Angle Milling Attachment with Arbor, Drill Chuck & Drill Arbor, 6 in. Riser Block, Coolant System with Chip Pan (pump included), “Maxi Torque Rite” Power Draw Bar, Clamping Kit (52 pcs/Steel Rack), Halogen Work light, CE mark, 380V and 575V transformer, UL components upgrade with electrical box, UL compliance certificate under State of California, Digital Readout System
