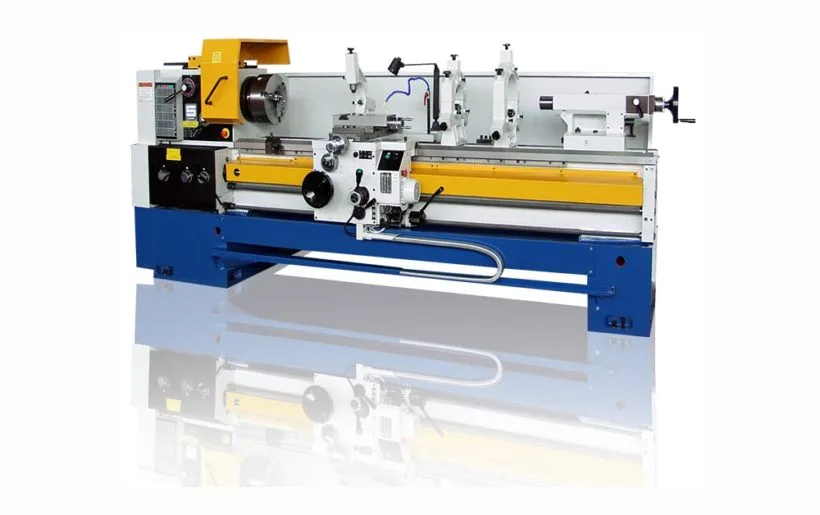

NEW SUMMIT 20″/24″/28″
Overview
Specs
Swing over bed (20″ Series): 20.25 in.
Swing over bed (24″ Series): 25 in.
Swing over bed (28″ Series): 28.5 in.
Swing over cross slide (20″ Series): 11.875 in.
Swing over cross slide (24″ Series): 17 in.
Swing over cross slide (28″ Series): 19.625 in.
Distance between centers: 40 in., 60 in., 80 in., 120 in., 160 in., 200 in.
Hole through spindle: 4 in.
Spindle speeds (20″ Series): 15 speeds, 11.5 – 1,400 RPM
Spindle speeds (24″/28″ Series): 21 speeds, 20 – 1,250 RPM
Spindle nose: D1-8 Camlock
Tailstock spindle (quill) diameter: 3.5 in.
Tailstock spindle (quill) travel: 9.5 in.
Tailstock spindle taper: MT #5
Threads per inch: 0.25 – 60 TPI (64 ranges)
Metric threads: 0.5 – 120 mm (64 ranges)
Bed width: 15.75 in.
Main drive motor (20″ Series): 10 HP
Main drive motor (24″/28″ Series): 15 HP
Equipped With
Standard Accessories: Thread dial, standard steady rest, extra capacity steady rest, follow rest, coolant system, carriage stop, taper attachment, work light, full-length splash guard, 3-jaw chuck, rapid traverse on carriage (4-way joystick), 2-speed tailstock, clutched headstock
Optional Accessories: Digital readout (DRO) system, Aloris quick-change tool post with holders, larger chucks, live center
