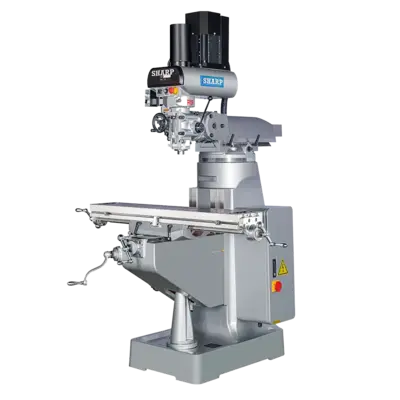

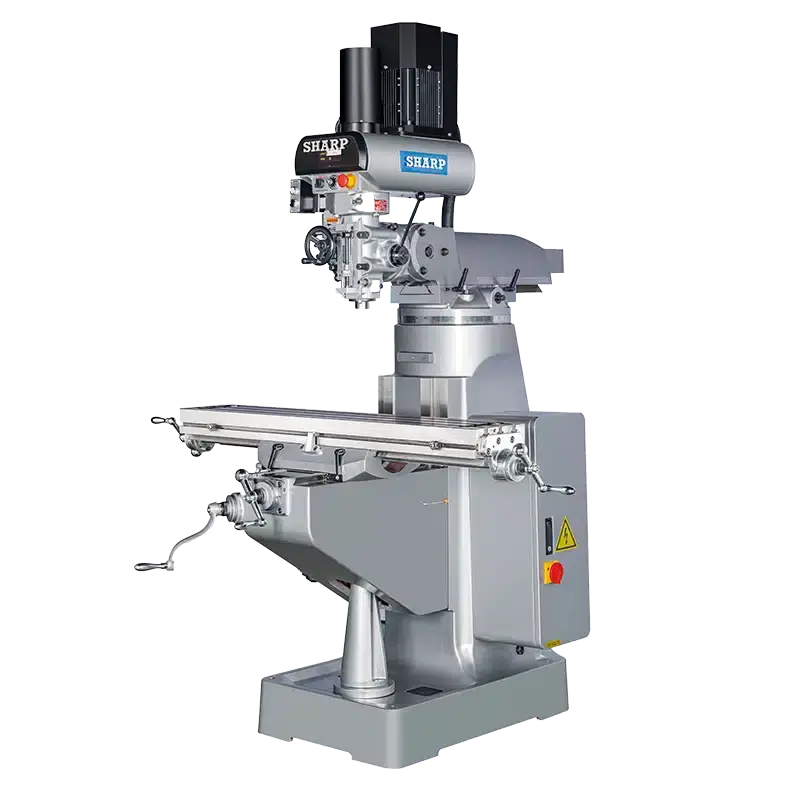

NEW SHARP LMV-49-SMD
Overview
Specs
Table Size: 9 x 49 in. / 228.6 x 1,244.6 mm
Longitudinal Travel (X): 36.6 in. / 929.64 mm
Cross Travel (Y): 12 in. / 304.8 mm
Vertical Quill Travel (Z): 5 in. / 127 mm
Knee Travel: 16 in. / 406.4 mm
Ram Travel: 12 in. / 304.8 mm
Spindle Nose to Table: 2.125 – 18 in. / 53.975 – 457.2 mm
Spindle Speeds: 65 – 4500 rpm
No. of Spindle Speeds: Variable (Digital)
Spindle Nose: R-8
Quill Diameter: 3.375 in. / 85.7 mm
Quill Travel: 5 in. / 127 mm
Quill Center Taper: R-8
Quill Feeds (3 speeds): 0.0015, 0.003, 0.006 in./rev
Head Swivel: 360°
Head Tilt (Left/Right): 45°
Head Tilt (Up/Down): 45°
Spindle Motor: 11 HP / 8.2 KW
Voltage: 220V/440V
Phase: 3 phase
Equipped With
Standard Accessories: Servo Motor Drive, Digital Variable Speed Spindle, Load Meter for real-time spindle power monitoring, Power Draw Bar, Meehanite Casting, Front & Rear Way Covers, One Shot Lubrication System, Transformer in electrical control cabinet for 110V power to DRO or X, Y, Z-Knee power feeds, Hardened & Ground Slideways with Turcite-B coating, Precision Quill with 5 in. travel, hard chrome-plated, mounted on high precision angular contact bearings, Backlash elimination through double-nut design, Patented Knuckled Head Design with six bolts fitted into circular T-slots, Precision thrust bearings at table end to eliminate end play, Digital display for spindle speed
