Conveyor, Belt, 20" x 66", S/st, Incline, Dewatering #S743099
Overview
Description

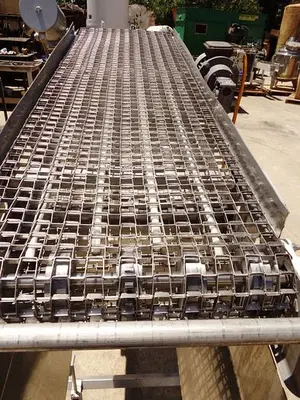

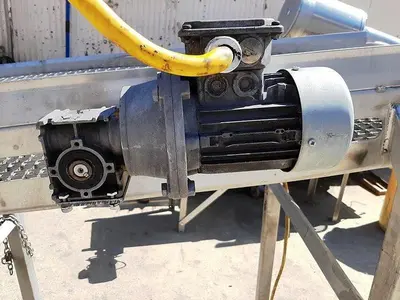

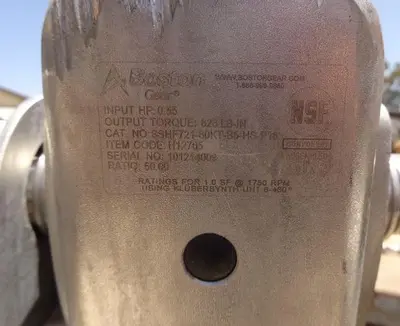

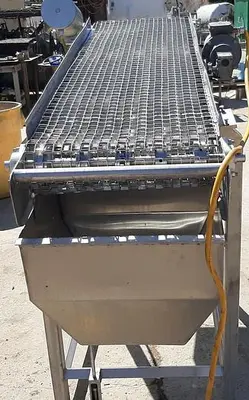

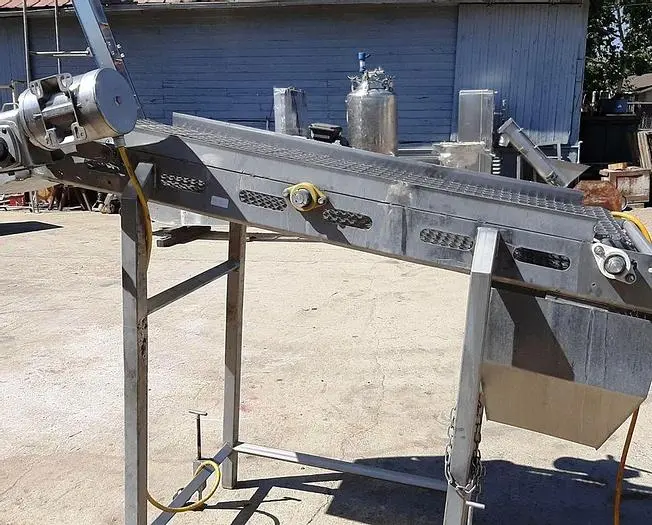

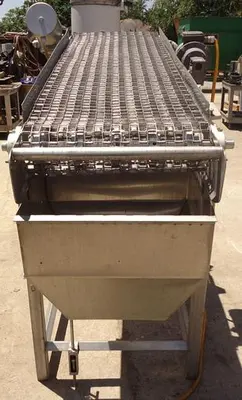

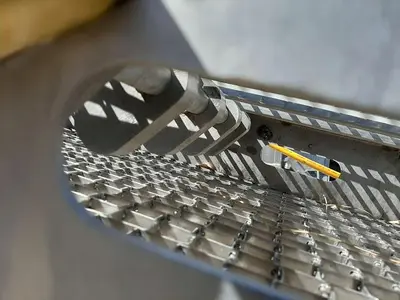

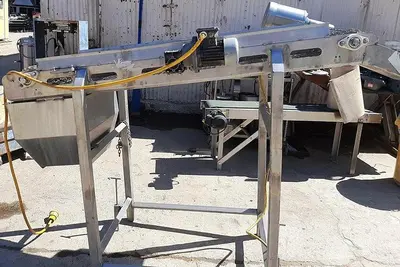

Stainless Steel Dewatering Belt Conveyor, includes Honeycomb flat wire open mesh belt, Inclined Conveyor. Measures 20" wide X 66" long with 50" discharge height , 44" infeed. Belt driven by 1/2 HP, 230/460 V, 3/60 Hz, 1725 RPM motor thru gearbox with 60:1 ratio , final output 30 rpm. Includes (5) paddles shakers between belts, paddles measure 2" x 3" x 1", driven by 1/4 gearhead motor (no nameplate). Mounted on stainless steel frame, with drip pan under belts, belt tensioner and bottom discharge hopper with screen. Hopper measures 16" x 20" x 20" and includes 7/8" screen with oversize discharging at 50" and undersize going through hopper, 24" discharge height. Appears to be used in fruits & vegetables application for dewatering and washing. Good condition.
Specifications
Stock Number: S743099
Measurements: 20" Wide X 66" Long
Materials of Construction: Stainless Steel
HP: .5
Previous Use: Snack Foods
Type: Dewatering Conveyor
Basis: FOB
