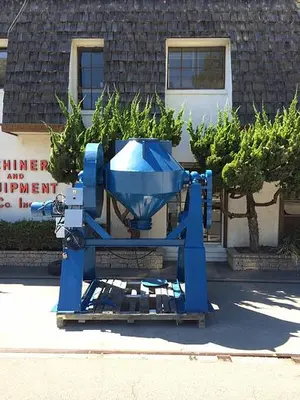

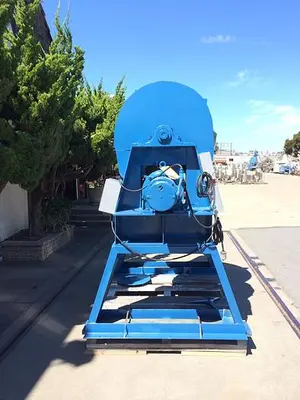

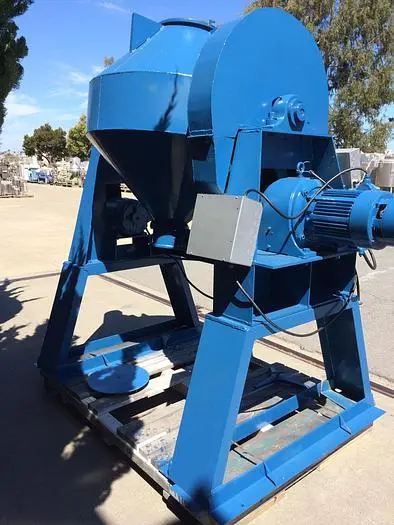

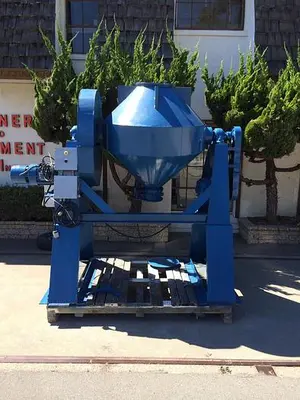

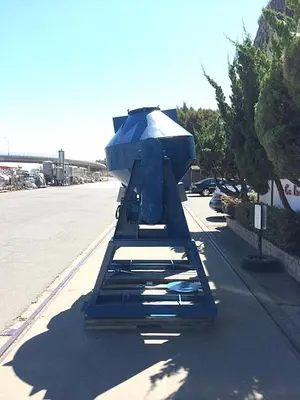

Mixer, Conical, 20 CF, C/st, Internsifier Bar, 5 HP, #C734672

Conical mixer, double cone, approximately 20 cubic feet capacity, carbon steel construction, includes Internsifier bar. Mixer measures 44" diameter x 12" straight side, plus 15" cone ends, feed cone has 18" diameter opening with cover, discharge end has 10" diameter discharge with manual valve. Mixer is driven by 5 HP, 220/440V, 1750 RPM motor thru gearbox and gear drive. Bar is driven by 5 HP, 220/440V, 1725 RPM motor thru V-belt drive. Previously used to mix ceramic powders. Unit appears to be in good condition.

Stock Number: C734672
Cubic Feet: 20
HP: 5
Materials of Construction: Carbon Steel
Basis: FOB
