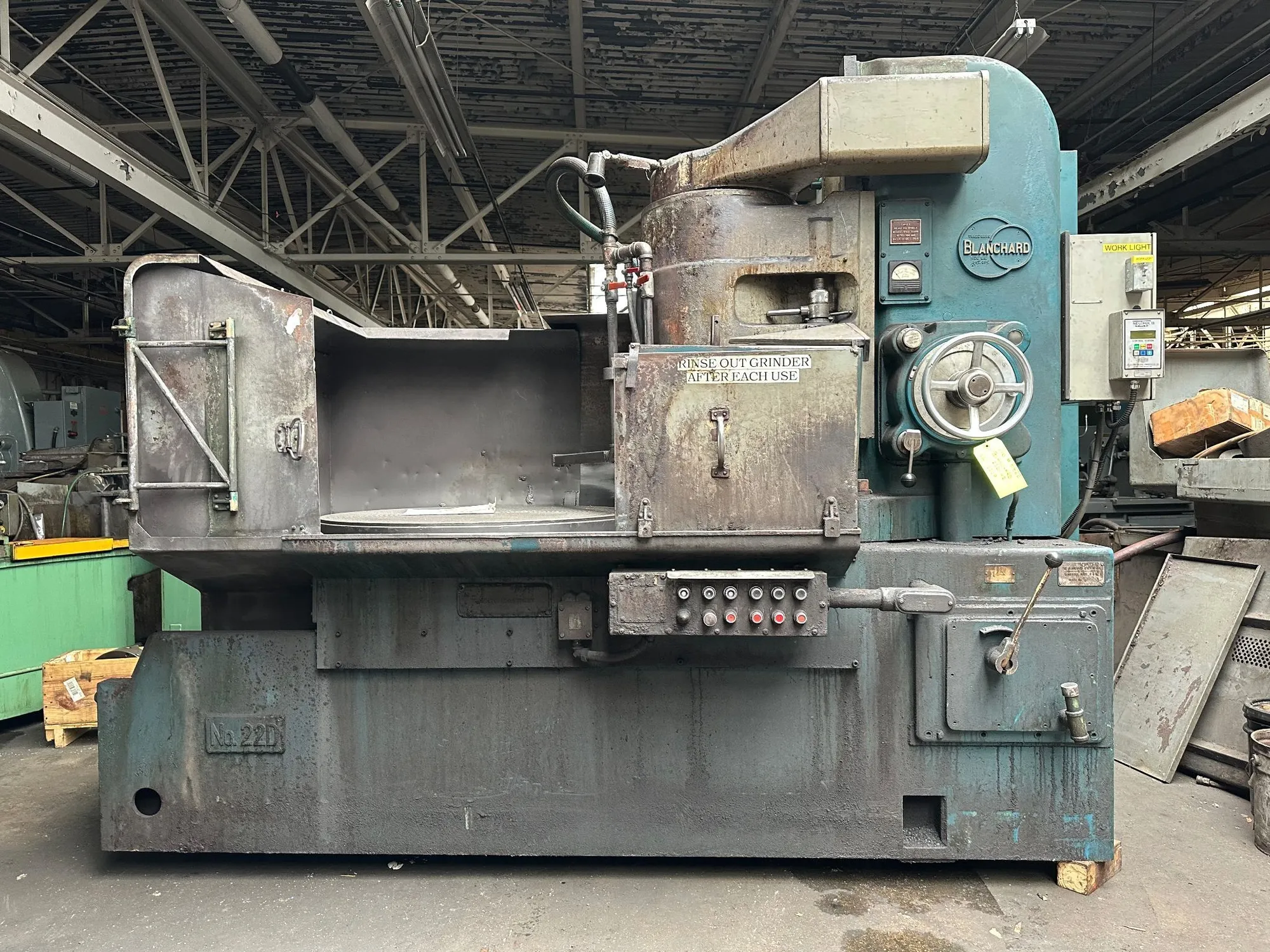

USED 1967 BLANCHARD 22D - 42

#22D-42 BLANCHARD EXTENDED VERTICAL
ROTARY SURFACE GRINDER

S/N 12229 Year: 1967

STANDARD SPECIFICATIONS

RANGE
48" Swing diameter x 18" high over 42" diameter chuck with new segments.

WORKTABLE
One piece 42" diameter magnetic chuck. 1200 watts, 230 volts (standard), 115 volts (special), D.C. 3,000 pounds maximum load.
Five CD-22L 22" Cortland chuck segments, each 11 1/4" x 2 1/4" x 6" long.

WHEEL
50 H.P. Spindle motor, 720 R.P.M. on 60 cycles, 750 R.P.M., 60 cycles 5,7, 10, 15, 20 and 27 R.P.M. on 50 cycles.

OTHER MOTORS
Chuck rotation – 1200 R.P.M. (60 cycles); table traverse and head raising – 900 R.P.M. (60 cycles).
Wet – 125 gallon tank in base.

FLOOR SPACE AND HEIGHT
11’ 11" X 8’ 4"
Maximum height…………………………………………… 9’ 1"
Minimum height……………………………………………. 8’ 7"

WEIGHT
Domestic shipping weight………………………………….. 19,000 pounds

EQUIPMENT AND FEATURES
42" One piece magnetic chuck.
50 H.P. 220/440 volt.
Wheel dresser.
Load meter.
Guards.
Dry base.
18” Vertical.
Newer Elmatco Neutrofier II chuck control.
Trabon lube.
Load meter.

Specifications are deemed accurate, however, subject to verification or prior sale.
