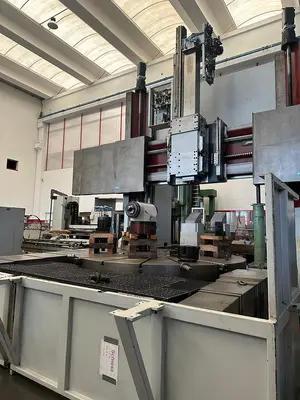

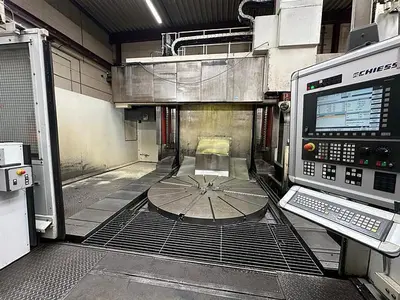

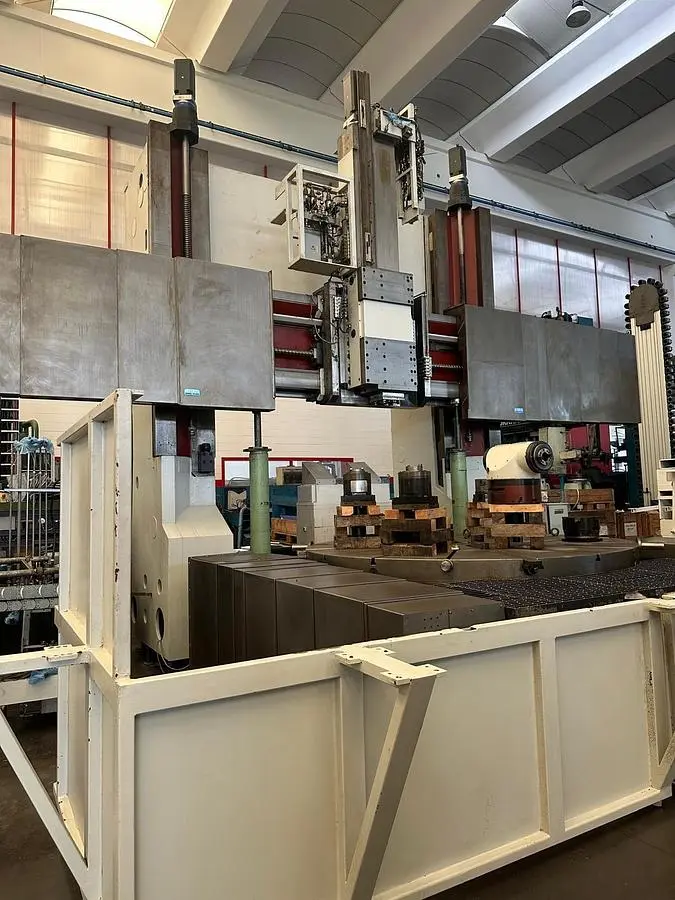

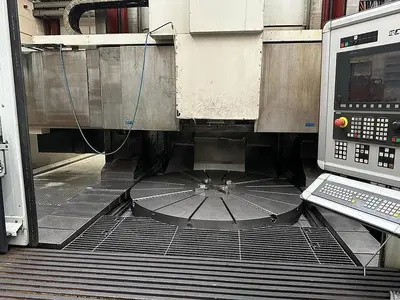

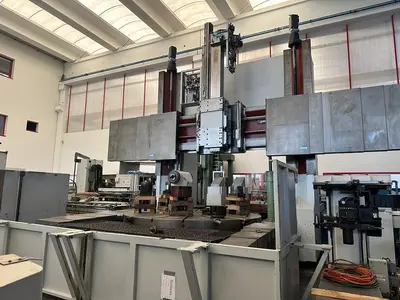

Schiess VMG CNC Vertical Boring & Milling Machine with Live Spindle & Table C Axis
Overview

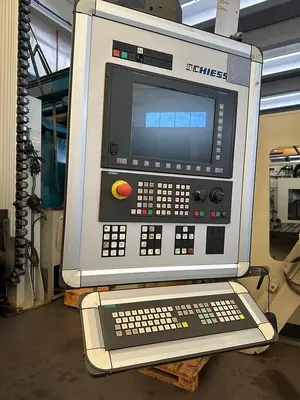

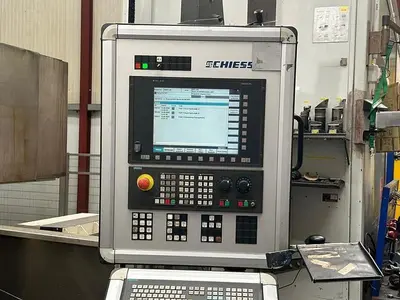

Siemens 840D CNC Control
Travelling Column Y-Axis - ±1,600 mm
Live Spindle - 25 kW
Table C-Axis - Continuous Table Indexing Angle

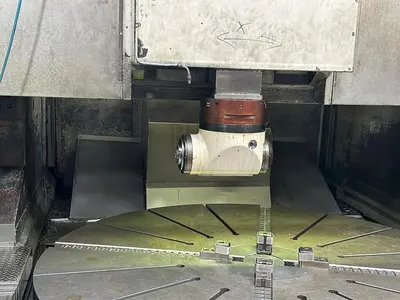

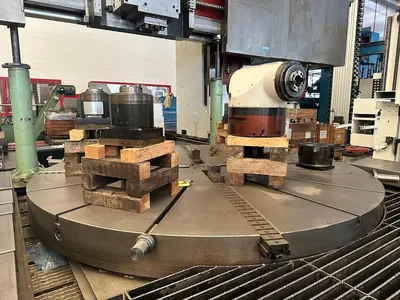

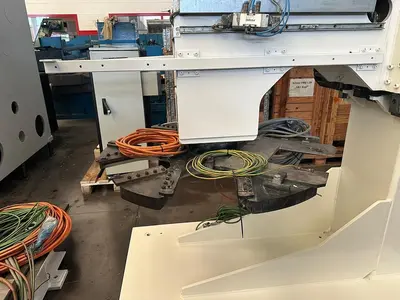

Head Changer with Vertical & Horizontal Heads

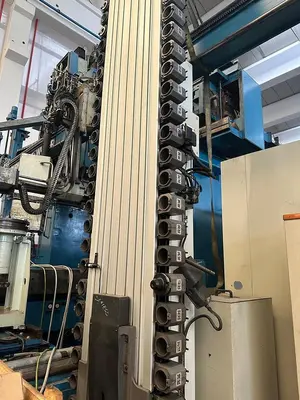

60 Position Tool Changer

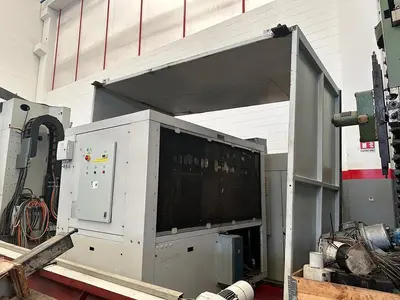

Chip Conveyor

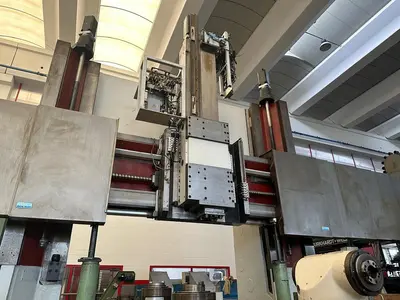

Moving Crossrail - 1,700 mm travel
Tool Setting
Control Keyboard
Specs
Manufacturer: Schiess
Year: 2006
Condition: Used
Stock Number: 5654411

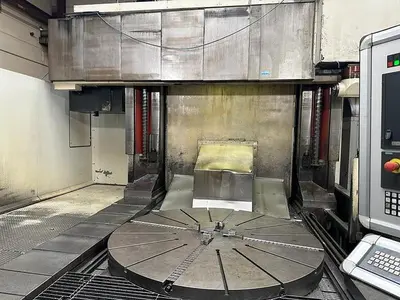

Table diameter: 2,800 mm
Swing: 3,200 mm
Table capacity: 25,000 kg
Max diameter vertical carriage: 2,950 mm
Max height vertical carriage: 2,500 mm

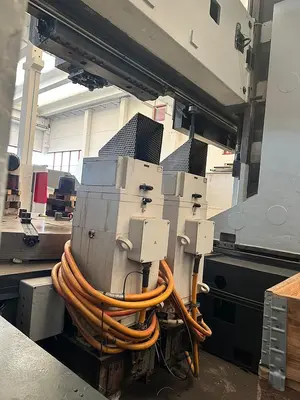

Motor power, double motor: 70,000 Nm
Table turn speed: 0.62 - 210 rpm
Crossrail travel: 1,700 mm
Ram travel: 1,400 mm
Live spindle taper: ISO 50
Live spindle motor: 25 kW
Y axis travelling coumns: ± 1,600 mm
Machine dimensions: 10,100 x 8,350 x 7,000 mm
