USED PHYSICAL TESTING IP4
Overview

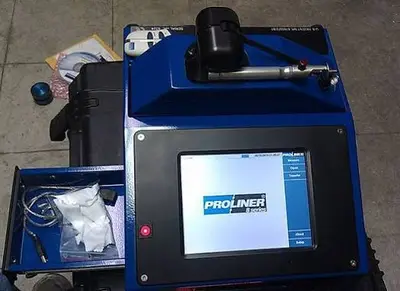

The Prodim Proliner 8CS System is a portable 2D and 3D digital templating and coordinate measuring machine used for fast, precise on-site measurements.
Specs
Software & CapabilitiesFunctions: 2D and 3D measuring, dimension checking, drawing modification, and integrated CAD functionalityLeapfrog Software: Integrated software to easily measure surfaces larger than the direct 15m rangeFile Formats / Output: Export capabilities for DXF, CCD, and TXT files directly to a USB stick for use with CNC machines or CAD programs
Equipped With
Hardware Specifications Display: 10” touchscreen
Weight: 10 kg (22 lbs)Housing Dimensions: 38 x 32 x 18 cm
Precision / Accuracy: ± 0.6 mm repeatability Direct Working Range / Reach: Up to ~15 meters (49 ft) diameter without relocating Wire Length: 7.5 meters (extendable via Leapfrog software for larger surfaces)Level Sensors: Built-in water-level sensors to check level and plumb
Connectivity: Bluetooth, USB, and UTP Power Supply: Rechargeable batteries and AC wall power cord (self-contained unit)Design: Foldable measuring head for protection during transport; fits in overhead airplane compartments
