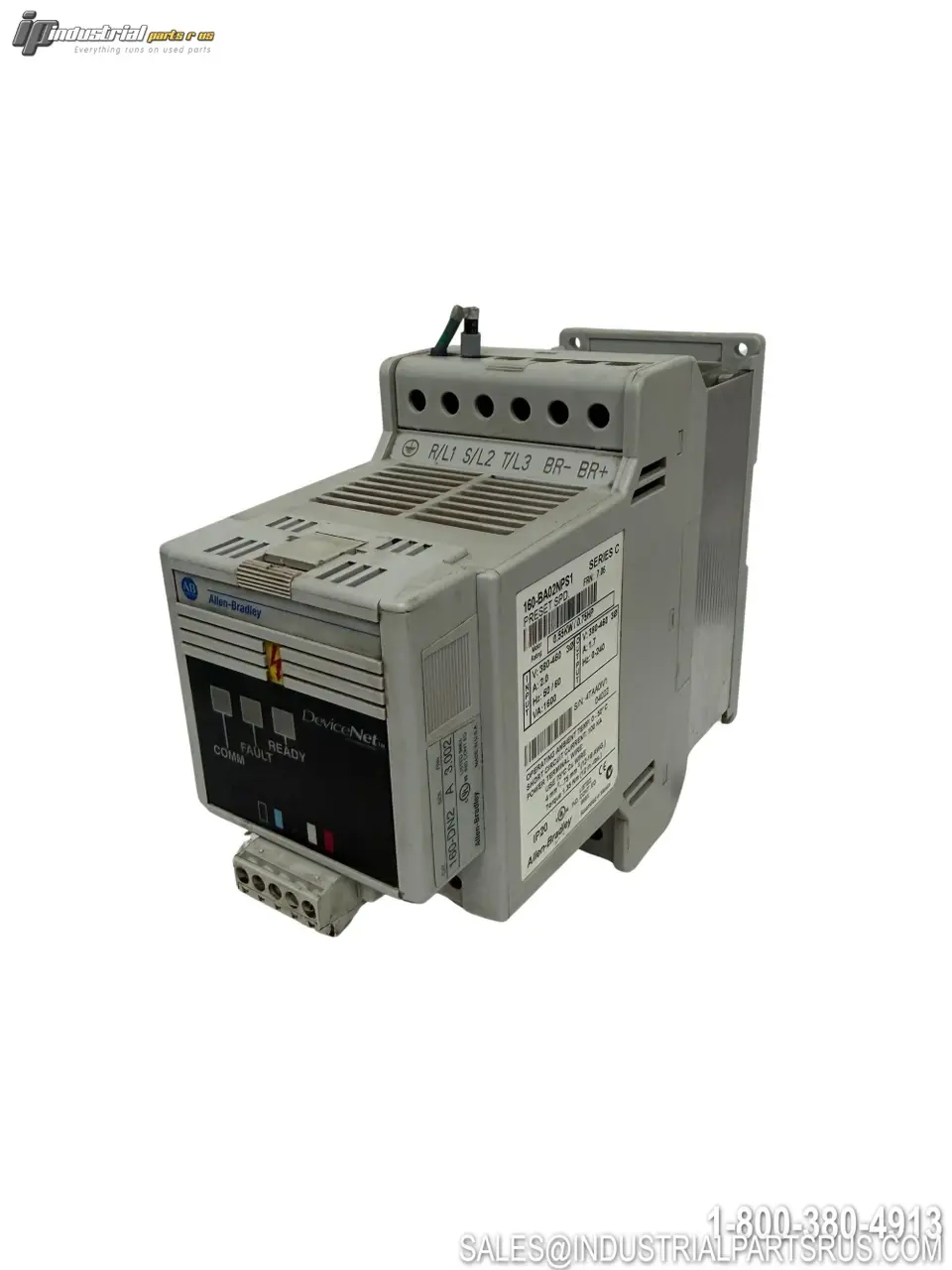

USED ALLEN-BRADLEY 160-BA02NPS1

The Allen-Bradley 160-BA02NPS1 is a Bulletin 160 Smart Speed Controller (SSC), a compact variable frequency drive (VFD) designed for speed control of three-phase induction AC motors. It is microprocessor-controlled and fully programmable, accepting a 380–460V three-phase input and delivering up to 2.3A output current at a 0.75kW (1 HP) motor rating. This is the Preset Speed (NPS1) variant, offering up to eight user-defined preset speeds via open-collector control inputs, and features Sine Weighted PWM with Harmonic Compensation using IGBT switching technology.
Specification
Value
Brand
Allen-Bradley
Model / Part Number
160-BA02NPS1
Product Family
Bulletin 160 SSC (Smart Speed Controller)
Series
See label (B and C confirmed in market)
Firmware Revision (FRN)
See label
Drive Type
Variable Frequency Drive (VFD) / Variable Speed Drive
Control Mode
Preset Speed (NPS1)
Input Voltage
380–460V AC
Input Frequency
50/60 Hz
Input Phase
3-Phase
Output Voltage
380–460V AC (3-Phase)
Output Current Rating
2.3A
Rated Power (kW)
0.75 kW
Rated Power (HP)
1 HP
Output Frequency Range
0–240 Hz (programmable)
PWM Algorithm
Sine Weighted PWM with Harmonic Compensation
Switching Device
IGBT (Intelligent Power Module)
Carrier Frequency
2–8 kHz adjustable (factory default 4 kHz)
Speed Control Method
Volts/Hertz (V/Hz), programmable ratio
Preset Speeds
Up to 8 preset speeds via open-collector inputs (SW1, SW2, SW3)
Enclosure Type
IP20 / Open Style (Chassis Mount)
Cooling Method
Convection cooled
Operating Temperature
0–50°C
Storage Temperature
-40–85°C
Mounting
Panel (flat vertical surface) or 35mm DIN Rail
Clearance Required
12.5mm front, top, and bottom; none between units
Control Terminal Block
TB3 (Forward/Reverse, Start, Stop, SW1, SW2, SW3)
Relay Output
1 programmable Form C relay (0.4A@125VAC, 0.2A@230VAC, 2A@30VDC)
Indicators
Ready and Fault indicator LEDs / panel
Optional Communications
DeviceNet, RS-232 (optional modules)
Motor Type
3-Phase AC Induction Motor
Manufacturer
Rockwell Automation / Allen-Bradley
Status
Discontinued
We warranty all items for 30 days from date of purchase.
