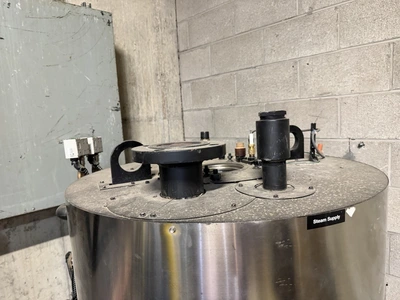

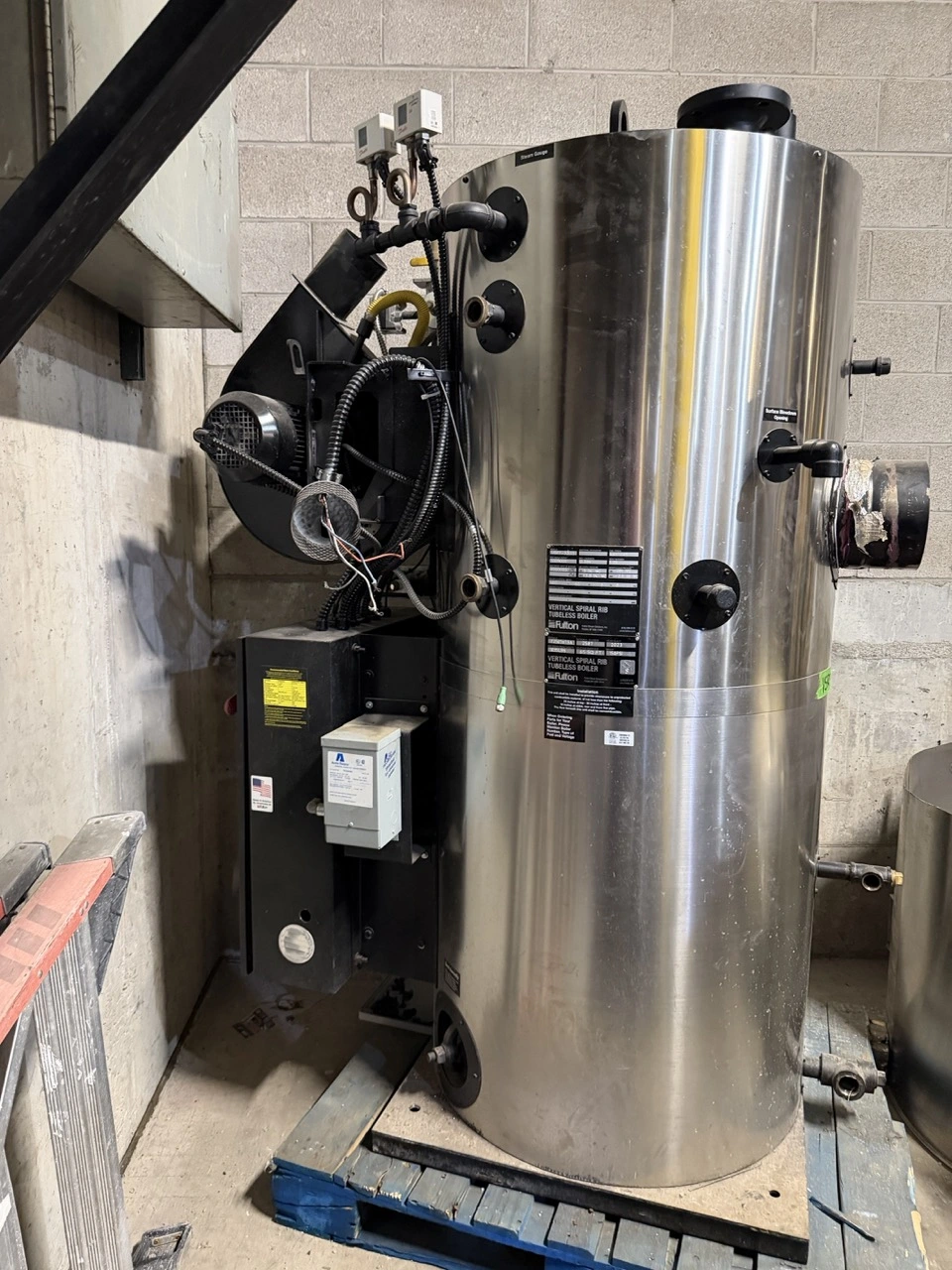

USED 2023 FULTON VSRT 30

Vertical Spiral Rib Tubeless Steam Boiler
Fuel: Natural Gas
Rated Output at High Fire: 300 kW
Minimum Output at Low Fire: 50 kW
Steam Output: 470 kg/hr (approx. 1,036 lb/hr)
Maximum Allowable Working Pressure: 1,034 kPa (150 PSI)
Efficiency: Up to 86%
Burner Turndown: Up to 6:1
Low NOx: <20 ppm
Natural Gas Consumption at Rated Input: 32.72 m³/hr
Minimum Gas Pressure: 19 mbar
Maximum Gas Pressure: 35 mbar
Electrical: 415V / 3 Phase / 50 Hz
Control Voltage: 110 VAC
Boiler Full Load Amps: 21.6A
Feed Pump Full Load Amps: 2.5A
Water Capacity at Normal Working Level: 424 L
Dry Weight: 1,284 kg / approx. 2,831 lb
Approx. Shipping Weight: 1,543 kg / 3,402 lb
Approx. Operating Weight: 1,708 kg / 3,765 lb
