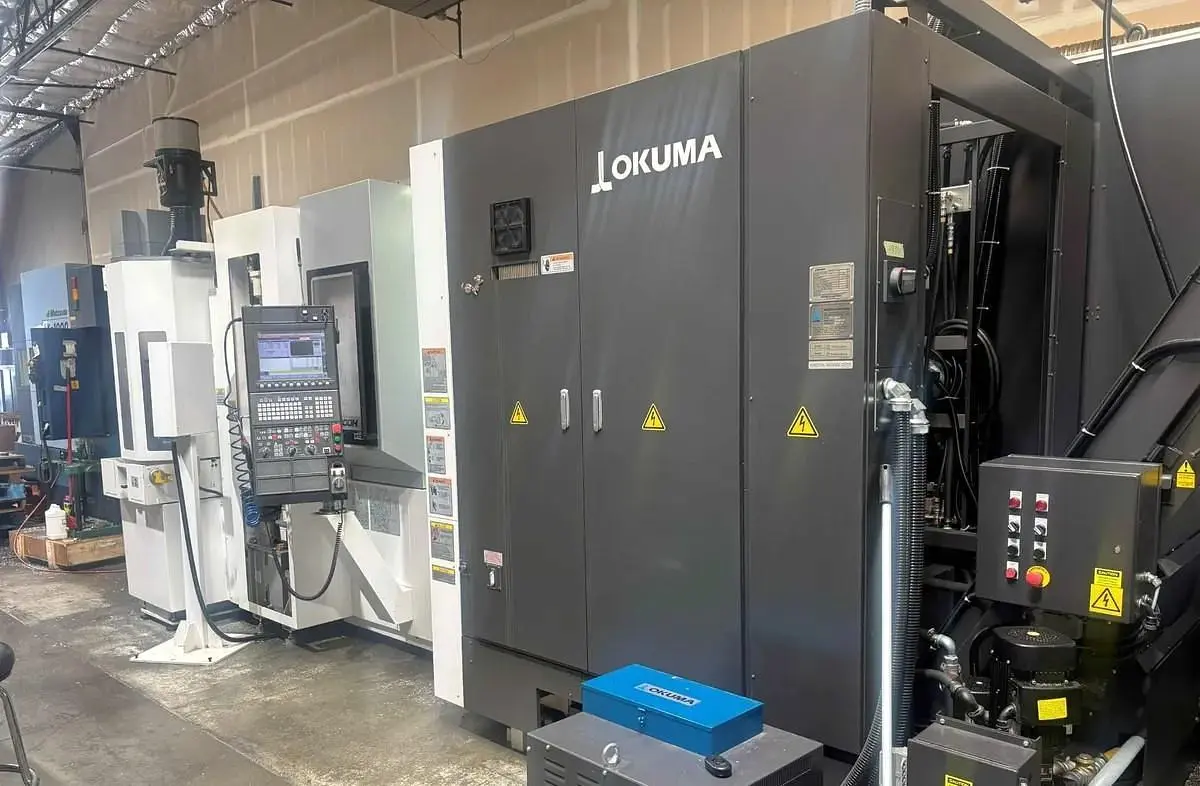

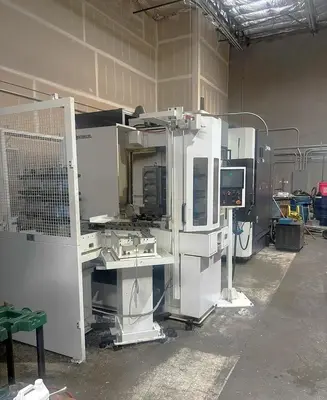

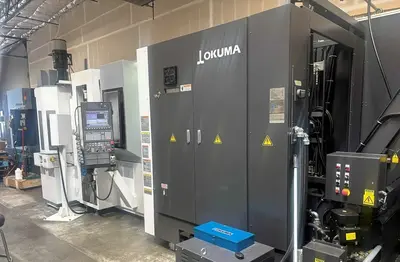

USED 2020 OKUMA MB-4000H WITH 6 PALLET CHANGER
Overview

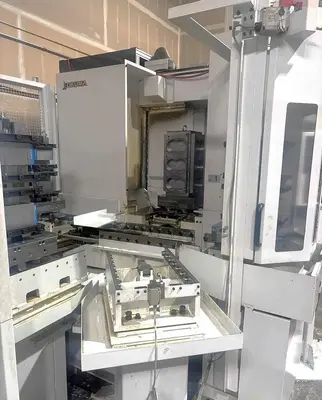

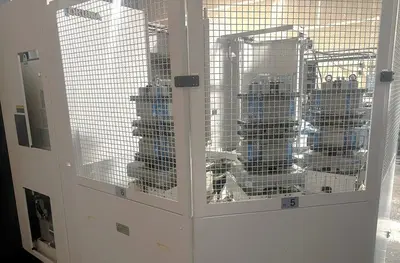

6 Pallet Rotary Changer System

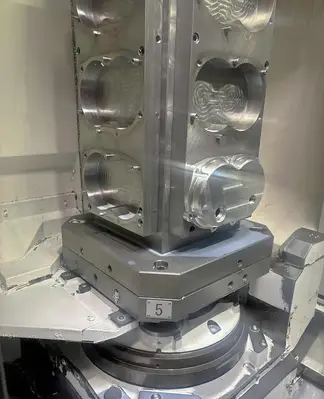

Full 4th Axis Rotary Table
146 Station Tool Changer

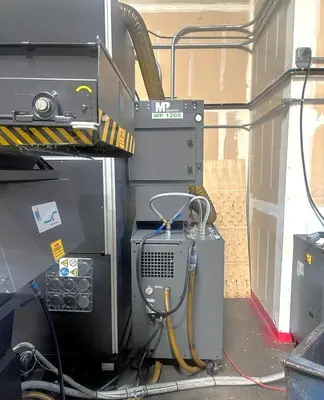

MP Systems MP1200 High Pressure Coolant Through the Spindle
15,000 RPM Spindle
Renishaw RMP600 / RMI-Q Probing Systems with Renishaw Inspection Plus Software w/ GUI

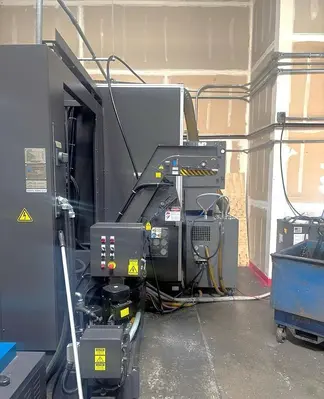

Chip Conveyor - Mayfran ConSep 2000
Shower Coolant
Tool Breakage Detection
Rigid Tapping
Spindle Chiller Unit
Ballscrew Chiller
Extended Tool Length
Remote Jog Handle
USB Port Interface
RS 232 Port Interface
Linear Guide Rail Design
All Available Manuals
The 2020 Okuma MB-4000H is a reliable and efficient CNC horizontal machining center, suitable for various industrial applications. This machine features a six-pallet changer and is equipped with a full 4th axis capability, enhancing its versatility for diverse machining tasks. Controlled by the Okuma OSP P-300M, this unit allows for precision and ease of use.
Key specifications include a table size of 15.75" x 15.75" capable of handling workpieces up to 23.62" x 35.43" and supporting a maximum table load of 880 lbs. The machine offers impressive X, Y, and Z-axis travel of 22.05", 22.05", and 24.61" respectively, along with a spindle speed ranging from 50 to 15,000 RPM. Its CAT 40 spindle is powered by a robust 35 HP motor, ensuring efficient operation in demanding settings.
Additional features include a Renishaw probing system, high-pressure coolant through spindle, and a substantial 146-position automatic tool changer. The machine's dimensions are 186" x 96" x 106", and it weighs 21,000 lbs, making it a substantial piece of equipment designed for heavy-duty performance coupled with a rapid traverse and cutting feedrate of 2,362 IPM. This machine is perfect for businesses seeking precision and productivity in their machining operations.
Specs
Machine Control: Okuma OSP P-300M Control
Table Size / Number of Pallets: 15.75" x 15.75" / 6 Pallet Changer
Maximum Workpiece Dimensions: 23.62" x 35.43"
Maximum Table Load: 880 lbs
Pallet Indexing: .001 Degrees Full 4th
X-Axis Travel: 22.05"
Y-Axis Travel: 22.05"
Z-Axis Travel: 24.61"
Spindle Speed: 50 - 15,000 RPM
Spindle Taper: CAT 40 Taper
Spindle Motor: 35 HP
Spindle Center to Table Top: 1.97" - 24.02"
Spindle Nose to Pallet Center: 3.35" - 27.95"

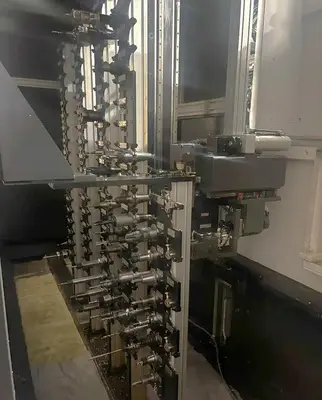

Tool Magazine Capacity: 146 Station Tool Changer
Maximum Tool Diameter / Length / Weight: 5.91" / 11.81" / 22 lbs.
Rapid Traverse Rates: 2,362 IPM
Cutting Feedrates: 2,362 IPM
Machine Dimensions LxWxH: 186" x 96" x 106"
Machine Weight: 21,000 lbs
