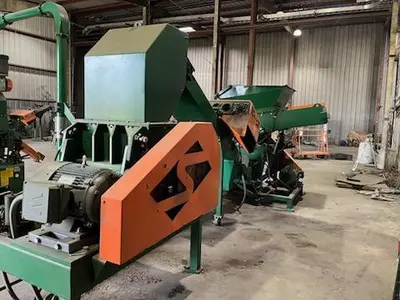

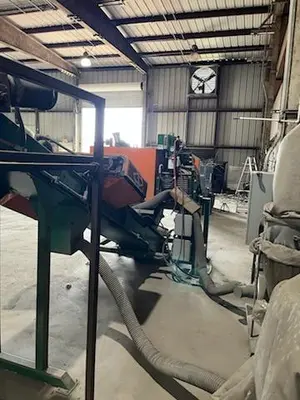

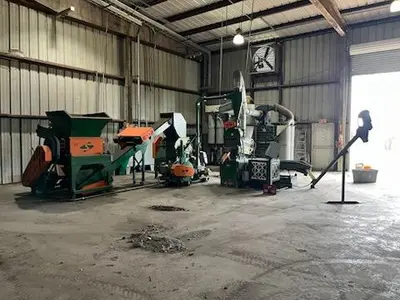

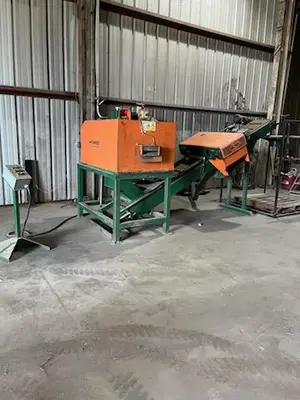

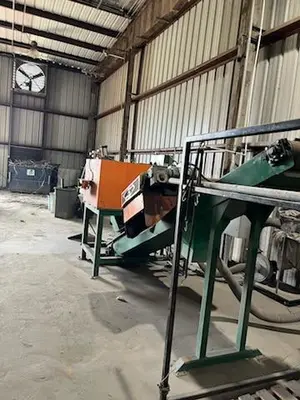

USED SWEED SWEED 30-40-30-(1)3G WIRE SEPARATION SYSTEM

SWEED 30-40-30-(1)3G WIRE SEPARATION SYSTEM  (L26-08.28)

Price FOB Loaded on your trucks................US$360,000
    FINANCING AVAILABLE
**Complete Wire Chopping & Separation System**

Sweed 30-40-30-(1)3G Wire Separation System designed for processing **#1 and #2 insulated copper wire**. The system incorporates pre-chopping, granulation, turbo mill processing, density separation, magnetic separation, dust collection, and integrated touchscreen controls.
The system is designed so **larger-diameter conductors can bypass the turbo mill**, while smaller-diameter #2 wire can be processed through the turbo mill for increased recovery and throughput.
### SYSTEM INCLUDES:

**Sweed PCR1034 Pre-Chopper – 30 HP**

* 34" long variable-speed rotor

* Load-sensing ram-fed hopper

* Hydraulic quick-access to knife and screen areas

**Granulator Infeed Conveyor with Magnetic Cross-Belt**

* Magnetic head pulley for additional ferrous separation

* Granulator load-sensing automatic start/stop based on preset load points

**Sweed SG1826 Granulator – 40 HP**

* 40 HP premium-efficiency motor

* Hydraulic quick-access design for knife and screen areas

* Load-monitoring controls with percentage load feedback

**Air Conveyance Outtake with Turbo Mill Bypass**

* Helps keep granulator cool and material contained

* Allows turbo mill bypass for processing #1 wire

* Includes vacuum airlock and cyclone

* Wear-resistant elbows

**Sweed TM3022 Turbo Mill – 30 HP**

* 30 HP premium-efficiency motor

* Variable-speed control

* Load-monitoring controls with percentage load feedback

* Designed to **increase #2 wire throughput by approximately 40%**

**Density Separation Air Table**

* Stainless-steel high-wear screen tops

* Designed for fine-gauge wire processing

* Simple, repeatable adjustment controls

**Integrated Motor Control & Touchscreen Control System**

* Color touchscreen HMI

* Monitors pre-chopper and granulator amperage

* Adjustable load set points

* Automatic start/stop sequencing

* Overload motor protection and detection

**8,000 CFM Dust Collection System**

* 40 HP cyclone with integrated 8,000 CFM / 20" S.P. blower

* After-filter baghouse

* 1,075 sq. ft. filtration area

* Manual shake option

* Designed for use with 55-gallon drum collection *(drum not included)*

**Sweed CE 5503XHD ACSR System**

* 5503XHD chopper system

* 3-phase, 400V, 50 Hz

* 25 HP motor with hydraulic feed works

* Outtake conveyor with magnetic cross-belt

* Stand included
### APPLICATION

A heavy-duty, integrated system for processing insulated copper wire with the flexibility to handle both **#1 and #2 wire streams**. The bypass configuration allows larger conductors to run without the turbo mill, while smaller conductors can utilize the turbo mill for enhanced liberation and increased throughput.
Price FOB Loaded on your trucks................US$360,000
    FINANCING AVAILABLE

SELLING;   ESCOBAR  TRADING  MIAMI

                    ENRIQUE ESCOBAR
