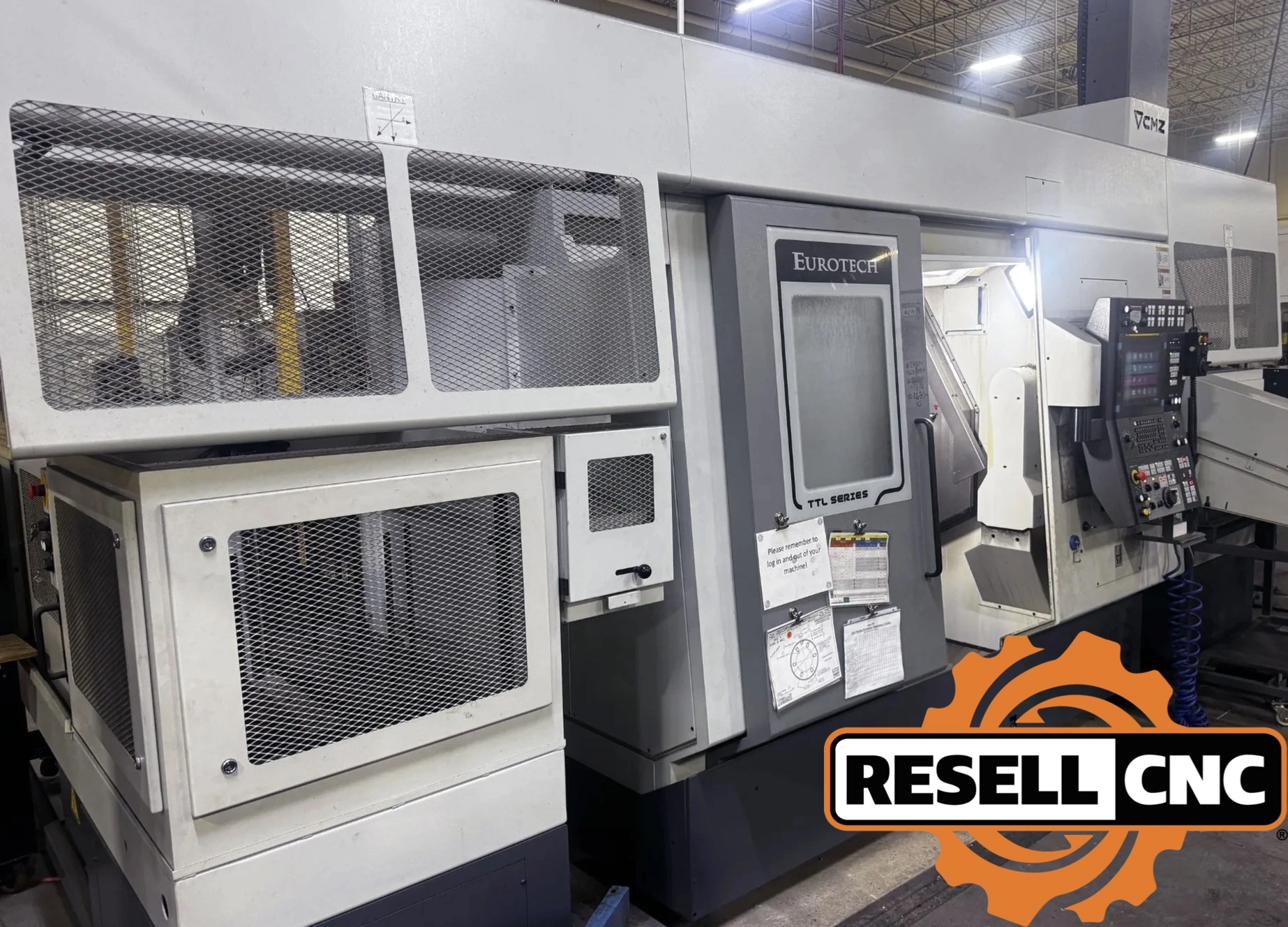

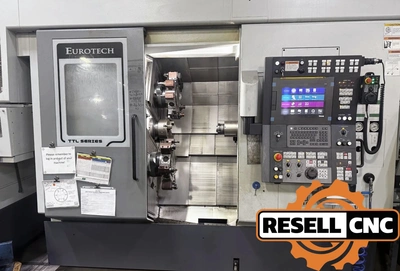

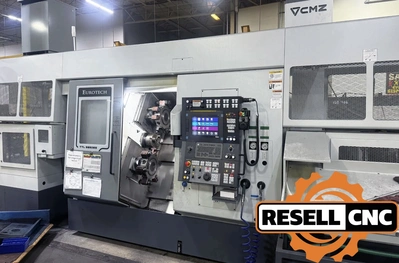

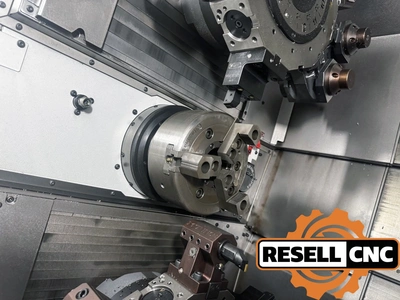

USED 2023 Eurotech TTL-66-66-T1Y-TY2

X2nd Turret Live Tooling: true
X2nd Turret Max Rpm: 12000
X2nd Turret Positions: 12
X4th Axis: false
X5th Axis: false
Additional Control Options: Fanuc iHMI Software

G Codes Type A in Fanuc

Tool Life Management Function

Tool Load Monitoring Function

Barfeed Interface - Unimag

Interface for Mist Collector

Additional Machine Specs: Outside Bearing Ø: 5.91"

Inside Bearing Ø: 3.94"

Spindle Nose Mounting: ASA 6" A2

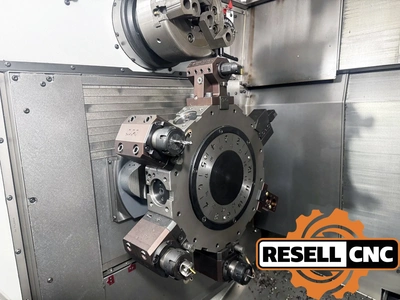

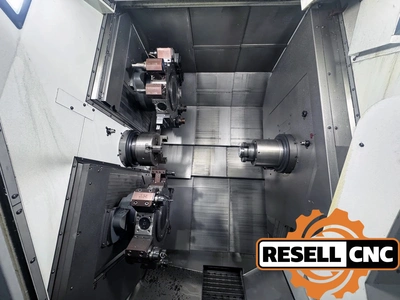

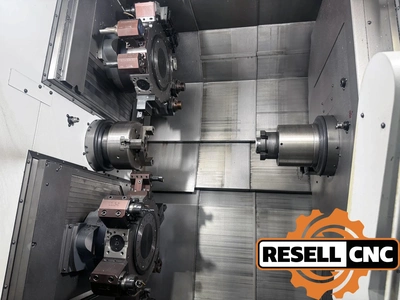

Twin 12-Station Turrets, both with Y-Axis

Gantry Automation Compatible

Coolant Through Left Spindle

SMW-Autoblock BB-D 210 3-Jaw Chuck L/R Spindles

Upper Turret HP Coolant Pump (6+15 bar, 55l/min)

Lower Turret HP Coolant Pump (6+15 bar, 55l/min)

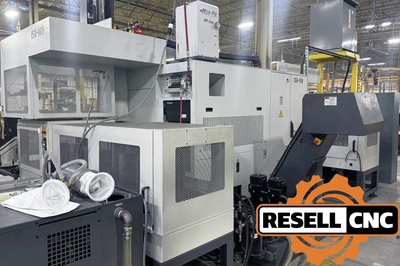

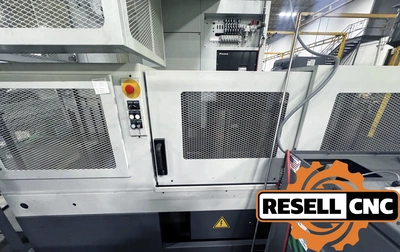

GL20-II 3-Axis CNC Gantry Loader Side Loading

Servo 2 x 180° Dual Gripper Gantry Swivel Head

Work Stocker WS-280 x 400 x 14 (R/L Side of Machine)

Pallet with auto-centering Rods

Test Piece Chute and Table

MP Systems Variable Rate HP Coolant System

Gantry Covers

Bar Capacity: 2.05
B Axis: false
C Axis: true
Chuck Size: 8.27

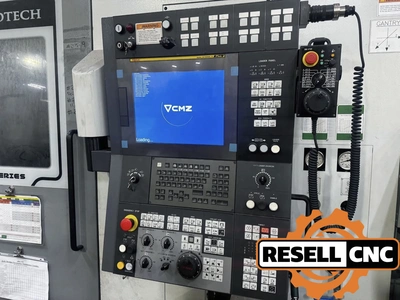

Control Make Model: Fanuc 31iT CNC Control
Control Options: Color Monitor
Distance Between Centers: 20.28
Live Milling Max Rpm: 12000
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: true
Machine Options: Tool Presetter, Transformer, Mist Collector
Max Cutting Turning Diameter: 9.45
Max Swing Over Bed: 9.45
Max Turning Cutting Length: 20.28
Programmable Tailstock: false
Second Bar Capacity: 2.6
Second Chuck Size: 8.0
Second Spindle Bore: 2.99
Second Spindle Motor: 47.6 HP
Second Spindle Speed: 4000
Single Turret: false
Single Turret Live Tooling: true
Spindle Bore: 2.4
Spindle Motor: 47.6
Spindle Speed: 4000.0
Sub Spindle: true
Tailstock: false
Tool Positions: 12.0
Total Spindles: 2
Turret Max Rpm: 12000
Twin Turret: true
Y Axis: true
