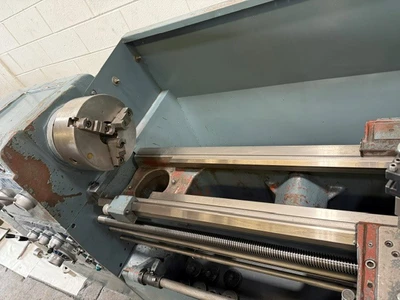

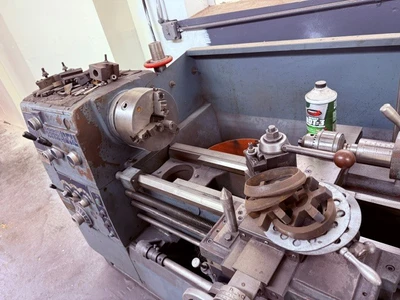

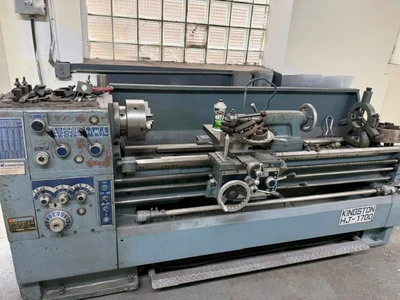

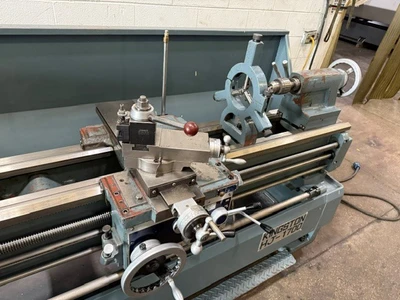

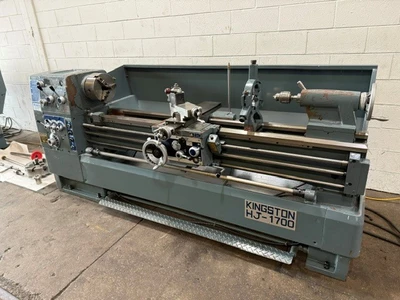

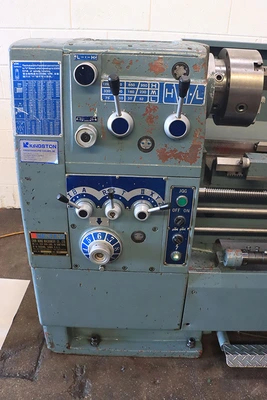

USED 1997 Kingston HJ-1700

17"/24" X 67" KINGSTON REMOVABLE GAP BED LATHE

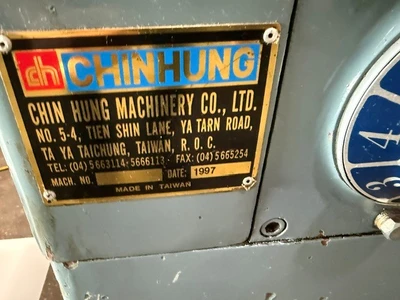

MODEL: HJ-1700,   NEW: 1997

SPECIFICATIONS:

SWING OVER BED ...................... 17"

SWING IN GAP ........................ 24"

SWING OVER CROSS SLIDE .............. 10-9/16"

DISTANCE BETWEEN CENTERS ............ 67"

SPINDLE BORE ........................ 2-1/4"

SPINDLE NOSE, CAMLOCK, SIZE ......... D1-6

SPINDLE SPEED RANGE (12) ............ 35 - 2,000 RPM

LONGITUDINAL FEED RANGE (16) ........ 0.0012 - 0.039 IPR

CROSS FEED RANGE (16) ............... 0.008 - 0.023 IPR.

ENGLISH THREADIN RANGE (44) ......... 2 - 72 T.P.I.

METRIC THREADING RANGE (39) ......... 0.2 - 14 MM

CROSS SLIDE TRAVEL .................. 10-2/5"

TAILSTOCK QUILL DIAMETER ............ 2-3/8"

TAILSTOCK SPINDLE TRAVEL ............ 5-7/8"

TAILSTOCK CENTER TAPER .............. #4 MORSE

WIDTH OF BED ........................ 11-3/4"

APPROX DIMENSIONS ................... 108" X 41" X 48"

APPROX WEIGHT ....................... 3,950 LBS

EQUIPPED WITH:

- REMOVABLE GAP BED

- INCH/METRIC THREADING CAPABILITY

- DUAL READING INCH/METRIC DIALS ON COMPOUND AND CROSS SLIDE HANDWHEELS

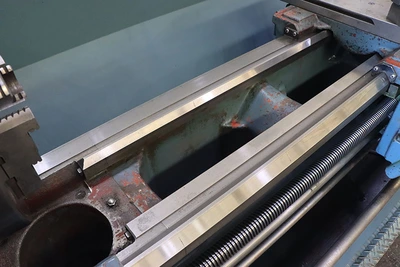

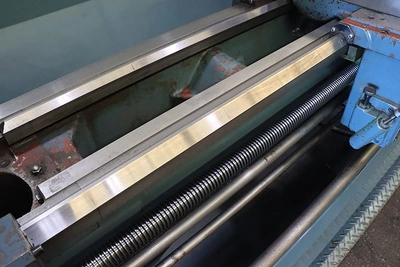

- HARD WAYS

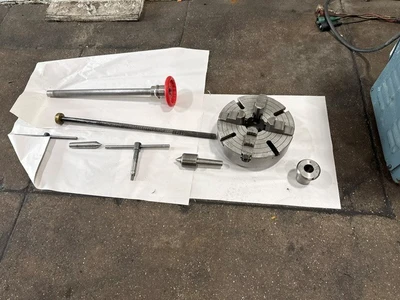

- 12" 4-JAW CHUCK

- 10" 3-JAW CHUCK

- 5C DRAW BAR & NOSE PIECE

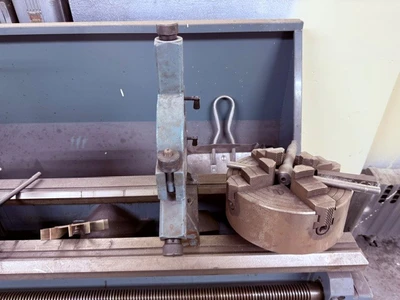

- STEADY REST

- 3/4" CAPACITY JACOBS "SUPER CHUCK" DRILL CHUCK

- LIVE CENTER & DEAD CENTER

- QUICK CHANGE TOOLPOST w/HOLDERS

- THREADING DIAL

- FOOT TREADLE OPERATED SPINDLE BRAKE

- FULL LENGTH CARRIAGE STOP BAR WITH ADJUSTABLE STOPS

- REMOVABLE CHIP PAN

- FULL LENGTH REAR SPLASH GUARD

- 7.5 HORSE POWER SPINDLE DRIVE MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE

FOR MORE INFORMATION: Call David at 973-497-7570
