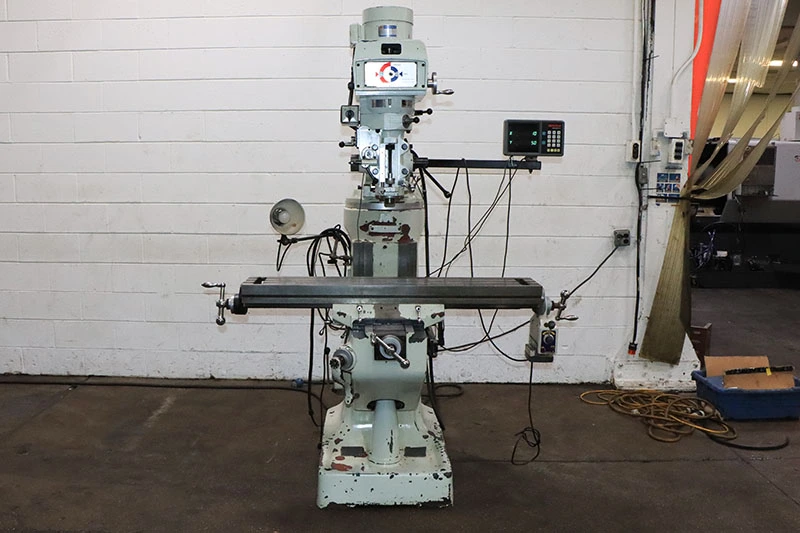

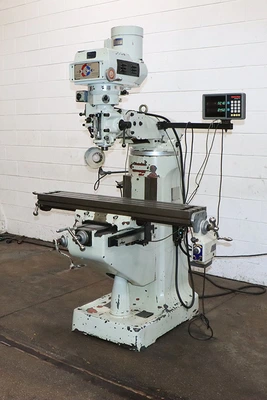

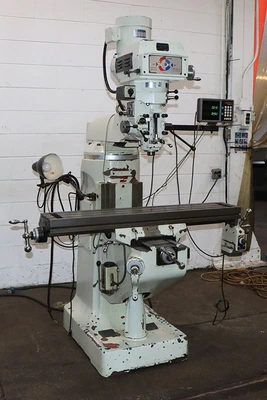

USED 2004 Manford SP-150VS

MANFORD VERTICAL MILLING MACHINE

MODEL: SP-150VS,  NEW: 2004

SPECIFICATIONS:

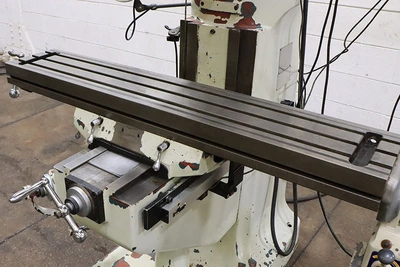

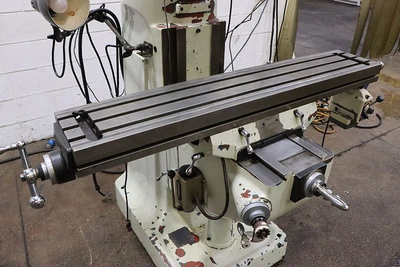

TABLE SIZE .............................. 9" X 49"

NUMBER OF T-SLOTS ....................... 3

LONGITUDINAL TABLE TRAVEL ............... 36"

CROSS TRAVEL ............................ 12"

QUILL TRAVEL ............................ 5"

KNEE TRAVEL ............................. 16"

RAM TRAVEL .............................. 14"

MAX/MIN DISTANCE, SPINDLE NOSE TO TABLE . 17-3/8" / 1-3/8"

MAX/MIN DISTANCE, CENTERLINE OF SPINDLE.

    TP FACE OF COLUMN ................... 21" / 6"

HEAD TILT, LEFT & RIGHT ................. 90 DEGREES

HEAD TILT, FRONT & REAR ................. 45 DEGREES

INFINITELY VARIABLE SPEED RANGE ......... 60-4,500 RPM

SPINDLE TAPER ........................... R-8

MAX COLLET CAPACITY ..................... 3/4"

QUILL TRAVEL ............................ 5"

QUILL FEEDS ........................ 0.0015", 0.003", 0.006"

APPROXIMATE WEIGHT ...................... 2,000 LBS

EQUIPPED WITH:

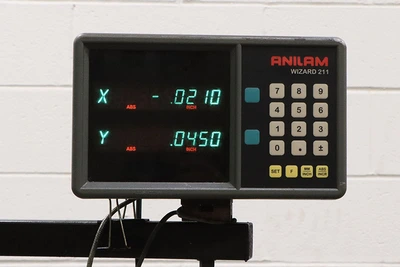

ANILAM TWO AXIS DIGITAL READOUT

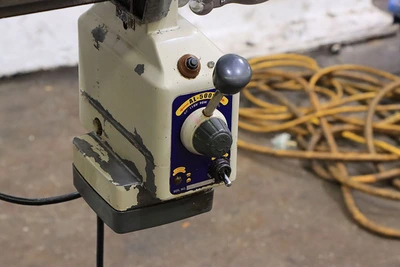

POWER FEED FOR LONGITUDINAL TRAVEL

ONE-SHOT LUBRICATION SYSTEM

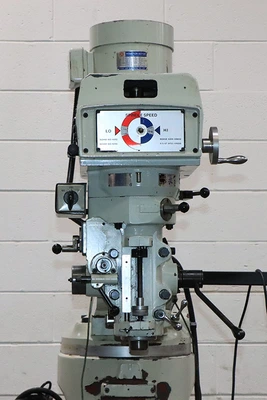

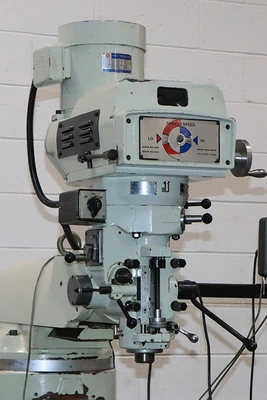

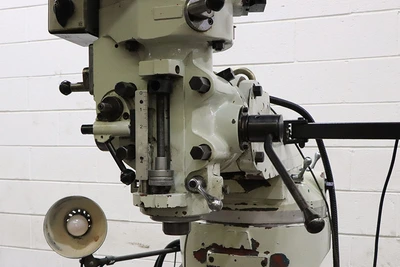

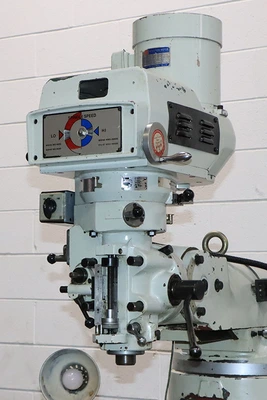

BRIDGEPORT SERIES I MILLING HEAD

3 HORSE POWER SPINDLE MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE

FOR MORE INFORMATION: Call David at 973-497-7570
