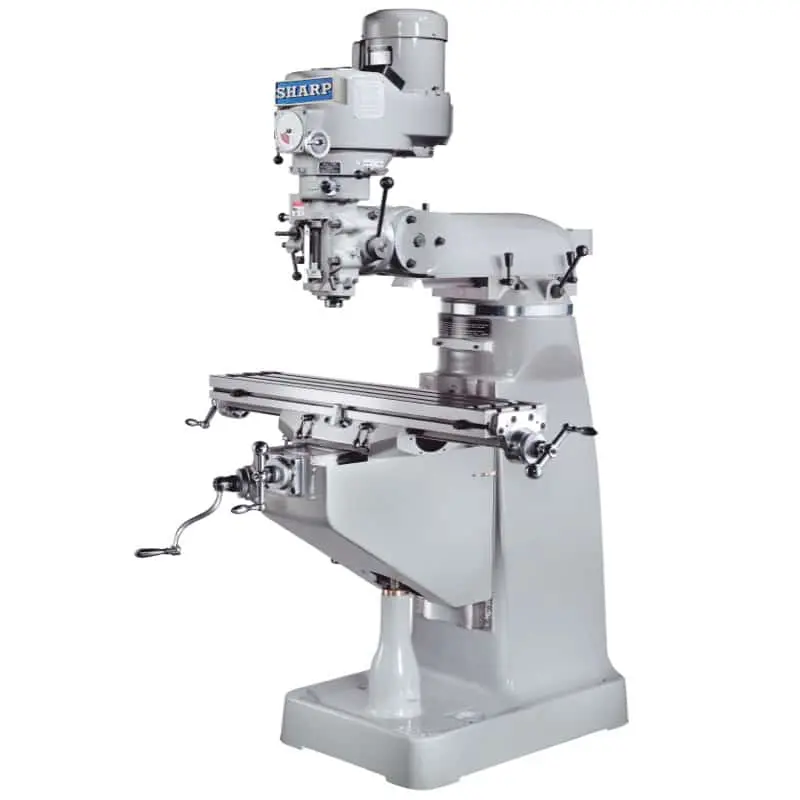

NEW SHARP LMV-50

Table Size: 9 x 50 in. / 230 x 1270 mm
T-slots (No., Size, Pitch): 3, 5/8 in., 2.5 in. / 3, 16 mm, 63.5 mm
Longitudinal Travel (X): 37 in. / 940 mm
Cross Travel (Y): 12 in. / 304 mm
Vertical Quill Travel (Z): 5 in. / 127 mm
Ram Travel: 12 in. / 304.8 mm
Knee Travel: 16 in. / 406 mm
Spindle Center to Column: 6.75 – 18.5 in. / 171 – 470 mm
Spindle Nose to Table: 2.125 – 18 in. / 3.1 – 457 mm
Spindle Speeds: 60 – 4500 rpm
No. of Spindle Speeds: Variable
Spindle Nose: R-8
Quill Diameter: 3.375 in. / 85.7 mm
Quill Travel: 5 in. / 127 mm
Quill Center Taper: R-8
Quill Feeds (3 speeds): 0.0015, 0.003, 0.006 in./rev / .038, .076, .152 mm/rev
Head Swivel: 360°
Head Tilt (Left/Right): 45°
Head Tilt (Up/Down): 45°
Spindle Motor: 3 HP / 2.25 KW
Voltage: 220V/440V
Phase: 3 phase
