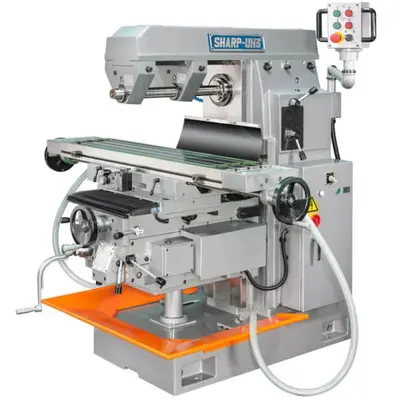

NEW SHARP UH-3
Overview
Specs
Table Size: 11.81 x 53.93 in. / 300 x 1370 mm
T-slots (No., Size, Pitch): 3, 0.629 in., 2.75 in. / 3, 16 mm, 70 mm
Longitudinal Travel (X): 39.37 in. / 1000 mm
Cross Travel (Y): 15.74 in. / 400 mm
Knee Travel: 16.54 in. / 420 mm
Ram Travel: Not specified
Spindle Nose: NST #50
Spindle Speeds: 80 – 1,200 rpm
No. of Spindle Speeds: 12 steps
Spindle Nose to Table: 0 – 16.53 in. / 0 – 420 mm
Spindle Motor: 7.5 HP / 5.59 KW
Voltage: 220V/440V
Phase: 3 phase
Equipped With
Standard Accessories: Coolant System, Pressurize auto lube System, Electro Magnetic Spindle Brake, Chip Pan, Wired Dual 220V or 440V, 1-1/4 in. Dia. Horizontal Arbor & 2 Arbor Supports, Tool Kit
Optional Accessories: Power draw bar, 6 in. KURT vise, Digital Readout System, Clamping kit
