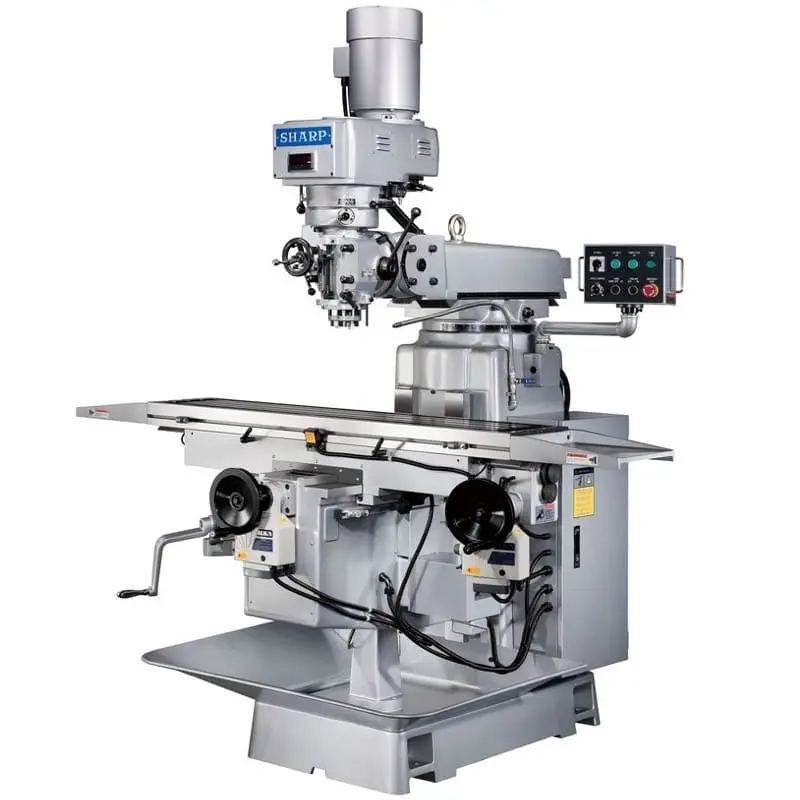

NEW SHARP V-1
Overview
Specs
Table Size: 12 x 58 in. / 304.8 x 1,473.2 mm
Longitudinal Travel (X): 40 in. / 1,016 mm
Cross Travel (Y): 16 in. / 406.4 mm
Vertical Quill Travel (Z): 5 in. / 127 mm
Knee Travel: 16 in. / 406.4 mm
Ram Travel: 17.8 in. / 452.12 mm
Spindle Nose to Table: 2-18 in. / 50.8-457.2 mm
Spindle Speeds: 70-4,000 rpm
No. of Spindle Speeds: Variable (Digital)
Spindle Nose: NT-40
Quill Diameter: 4.12 in. / 104.64 mm
Quill Travel: 5 in. / 127 mm
Quill Center Taper: NT-40
Quill Feeds (3 speeds): 0.0015, 0.003, 0.006 in./rev / 0.038, 0.076, 0.152 mm/rev
Head Swivel: 360°
Head Tilt (Left/Right): +/- 90°
Head Tilt (Up/Down): +/- 45°
Spindle Motor: 5 HP / 3.72 KW
Voltage: 220V/440V
Phase: 3 phase
Equipped With
Standard Accessories: Power feed table and saddle, Motorized rapid knee positioning, Coolant System, Front and Rear Rubber Way Cover, Auto-lube System, Rubber Way Cover at back of Saddle, Halogen Worklight
Optional Accessories: 440V Transformer, Power Draw Bars, “Align” Power Draw Bar w/Foot Pedal Control, “Maxi Torque Rite” Power Draw Bar, 6 in. Kurt Vise with Swivel Base, Right Angle Milling Attachment w/ Arbor (#40), Riser blocks, 4 ins, 6 ins, 8 ins, sizes, Drill Chuck & Drill Arbor, Clamping Kit (52 pcs/steel racks), Digital Readout System
