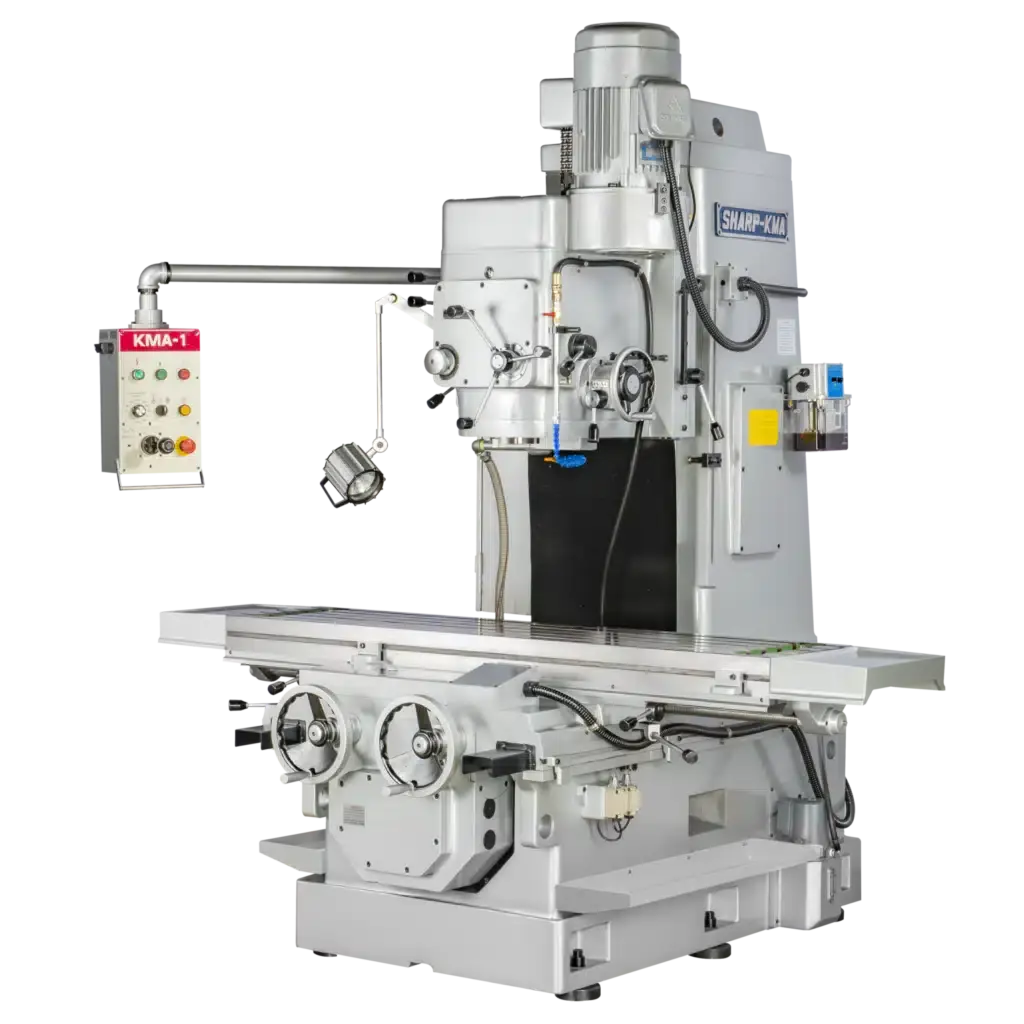

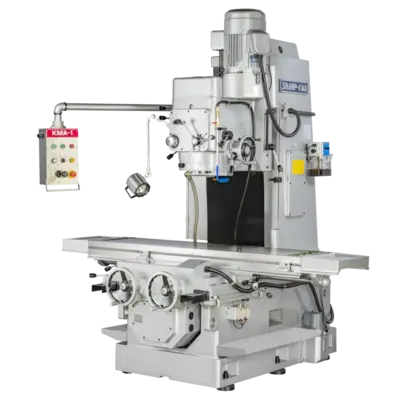

NEW SHARP KMA-1

Table Size: 14.93 x 67 in. / 379.2 x 1701.08 mm
T-slots (No., Size, Pitch): 5 x 0.75 x 2.75 in. / 5 x 19.05 x 69.85 mm
Longitudinal Travel (X): 39.37 in. / 1,000 mm
Cross Travel (Y): 14.93 in. / 379.22 mm
Vertical Quill Travel (Z): 19.68 in. / 500 mm
Spindle Nose: NST #50
Spindle Speeds: 45 – 1500 rpm
No. of Spindle Speeds: Variable
Spindle Feeds: 0.002 – 0.008 in./rev / 0.05 – 0.2 mm/rev
Spindle Center to Column: 14.93 in. / 379.22 mm
Spindle Nose to Table: 3.93 – 23.62 in. / 99.82 – 599.94 mm
Longitudinal Feeds: 1.12 – 39.37 ipm / 26 – 1000 mm/min
Longitudinal Rapids: 110 ipm / 2,800 mm/min
Cross Feeds: 1.12 – 39.37 ipm / 26 – 1000 mm/min
Cross Rapids: 110 ipm / 2,800 mm/min
Spindle Motor: 5 HP / 3.7 KW
Voltage: 220V/440V
Phase: 3 phase
