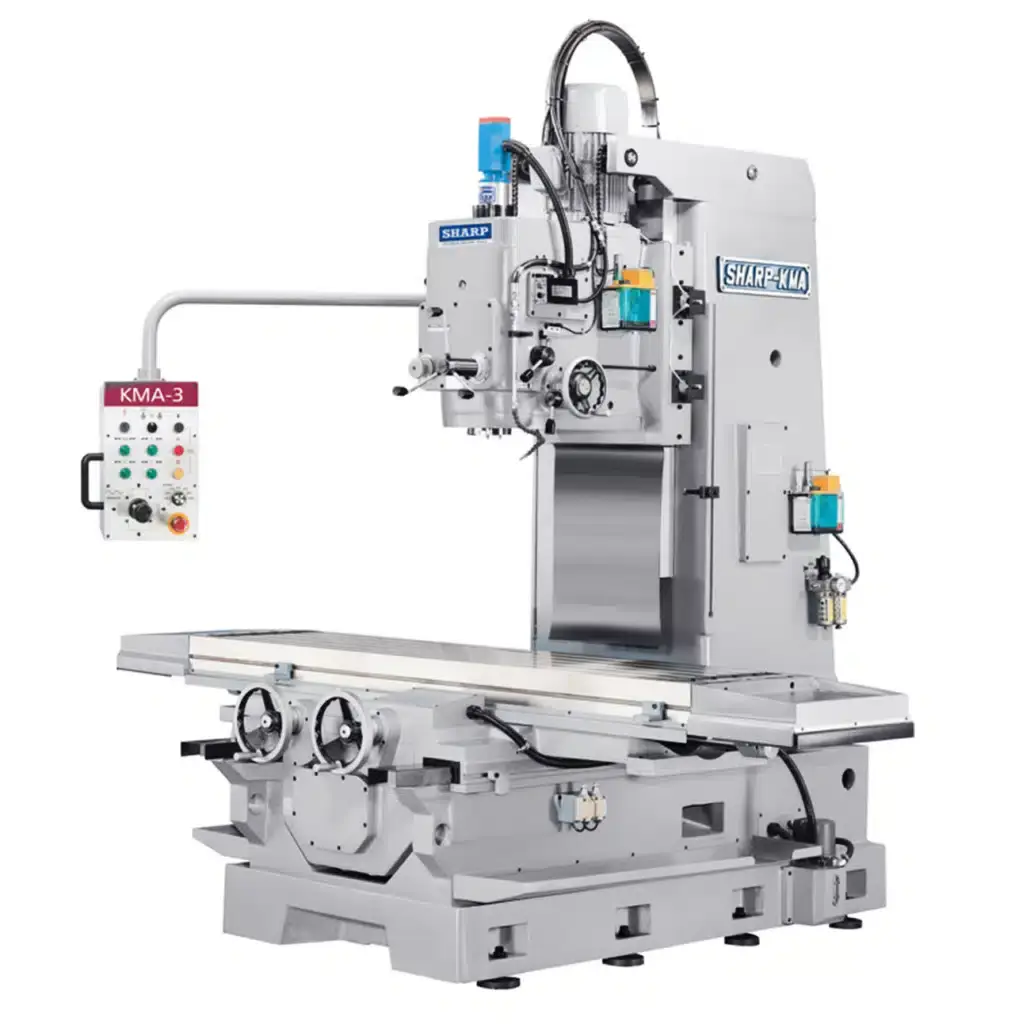

NEW SHARP KMA-3

Table Size: 86.62 x 19.68 in. / 2200.14 x 499.87 mm
T-slots (No., Size, Pitch): 5 x 0.75 x 3.56 in. / 5 x 19.05 x 90.42 mm
Longitudinal Travel (X): 59 in. / 1498.6 mm
Cross Travel (Y): 23.62 in. / 599.94 mm
Vertical Quill Travel (Z): 27.56 in. / 700.02 mm
Spindle Nose: NST #50
Spindle Speeds: 45 – 1500 rpm
Spindle Center to Column: 21.62 in. / 549.14 mm
Spindle Nose to Table: 3.93 – 31.5 in. / 99.82 – 800.1 mm
Longitudinal Feeds: 1.12 – 39.37 ipm / 28.44 – 1000 mm/min
Longitudinal Rapids: 130 ipm / 3302 mm/min
Cross Feeds: 1.12 – 23.62 ipm / 28.44 – 600 mm/min
Cross Rapids: 130 ipm / 3302 mm/min
Quill Feeds (3 speeds): 0.002 – 0.008 in./rev / 0.05 – 0.2 mm/rev
Spindle Motor: 20 HP / 14.9 KW
Feed Motor: 2 HP / 1.5 KW
Coolant Motor: 1.12 HP / 0.83 KW
Voltage: 220V/440V
Phase: 3 phase
