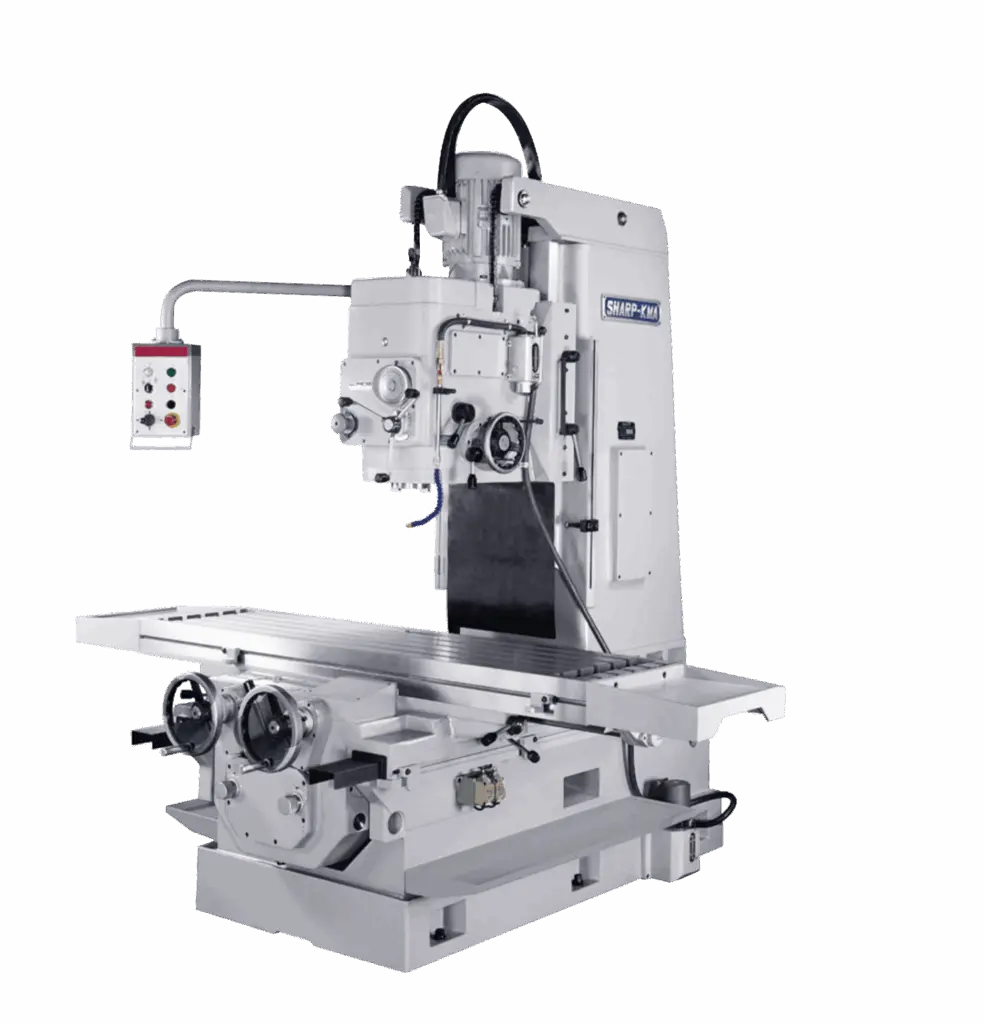

NEW SHARP KMA-2

Table Size: 74.81 x 17.68 in. / 1900.17 x 449.07 mm
T-slots (No., Size, Pitch): 5, 0.7 in., 3.12 in. / 5, 17.78 mm, 79.24 mm
Longitudinal Travel (X): 47.25 in. / 1200.15 mm
Cross Travel (Y): 17.68 in. / 449.07 mm
Vertical Quill Travel (Z): 21.62 in. / 549.14 mm
Spindle Nose: NST #50
Spindle Speeds: 45 – 1500 rpm
No. of Spindle Speeds: 12 steps
Spindle Feeds: 0.002 – 0.008 in./rev / 0.050 – 0.203 mm/rev
Spindle Center to Column: 17.68 in. / 449.07 mm
Spindle Nose to Table: 3.93 – 25.62 in. / 99.8 – 650.74 mm
Longitudinal Feeds: 1.12 – 34.43 ipm / 28.44 – 874.52 mm/min
Longitudinal Rapids: 113.37 ipm / 2879.59 mm/min
Cross Feeds: 1.12 – 34.43 ipm / 28.44 – 874.52 mm/min
Cross Rapids: 113.37 ipm / 2879.59 mm/min
Spindle Motor: 15 HP / 5.59 KW
Voltage: 220V/440V
Phase: 3 phase
