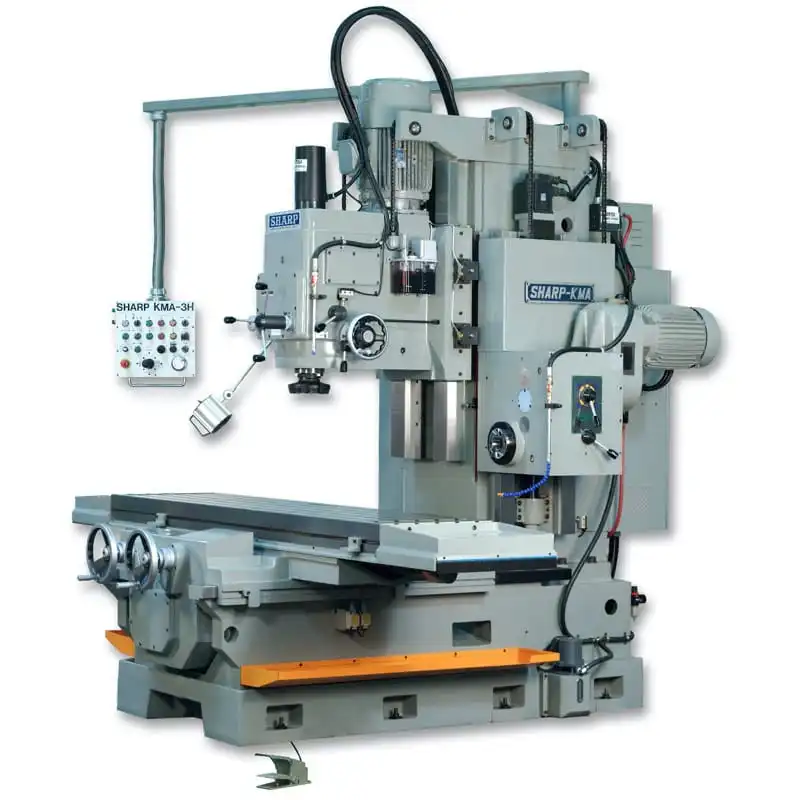

NEW SHARP KMA-3H

Table Size: 19.68 x 86.62 in. / 499.87 x 2,200.14 mm
T-slots (No., Size, Pitch): 5 x 0.75 x 3.56 in. / 5 x 19.05 x 90.42 mm
Longitudinal Travel (X): 59 in. (79 in. Opt) / 1,498 mm (2,006 mm Opt)
Cross Travel (Y): 23.6 in. / 599 mm
Vertical Quill Travel (Z): 27.5 in. / 698 mm
Horizontal Head Travel (Up/Down): 25.5 in. / 647 mm
Vertical Spindle Nose: NST #50
Vertical Spindle Speeds: 45 – 1,500 rpm (12 steps)
Vertical Head Feeds: 0.002 – 0.008 in./rev / 0.05 – 0.2 mm/rev
Horizontal Spindle Nose: NST #50
Horizontal Spindle Speeds: 40 – 1,450 rpm (12 steps)
Spindle Center to Column: 21.62 in. / 549.14 mm
Spindle Nose to Table: 4 – 31.5 in. / 101.6 – 800.1 mm
Distance Between Vertical and Horizontal Spindle: 21.5 in. / 546 mm
Longitudinal Feeds: 1.12 – 39.37 ipm / 26 – 1,000 mm/min
Longitudinal Rapids: 129.875 ipm / 3,300 mm/min
Cross Feeds: 1.12 – 39.37 ipm / 26 – 1,000 mm/min
Cross Rapids: 129.875 ipm / 3,300 mm/min
Horizontal/Vertical Rapids: 150 ipm / 3,800 mm/min
Vertical Spindle Motor: 20 HP / 14.91 KW
Horizontal Spindle Motor: 7.5 HP / 5.59 KW
Table Feed and Rapid Motor: 4.7 HP / 3.5 KW
Vertical Rapid Motor: 1.14 HP / 0.85 KW
Coolant Motor: 0.125 HP / 0.093 KW
Voltage: 220V/440V
Phase: 3 phase
