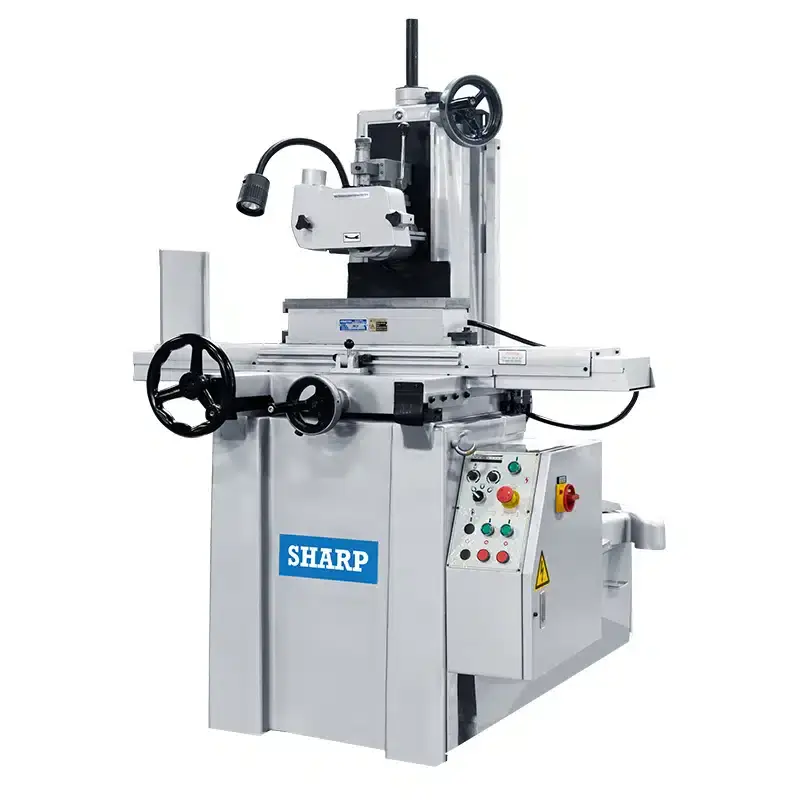

NEW SHARP SG-618

Max Grinding Length: 18.5 in. / 470 mm
Max Grinding Width: 6.3 in. / 160 mm
Max Distance Table to Spindle Center (Center Height): 15.7 in. / 400 mm
Table Size: 6 x 18.3 in. / 150 x 465 mm
Longitudinal Travel: 18.9 in. / 480 mm
Cross Travel: 7 in. / 177 mm
Longitudinal Feed of Table – Hand Feed Per Revolution: 4.2 in. / 106.68 mm
Cross Feed of Saddle – Hand Feed Per Revolution: 0.2 in. / 5.08 mm
Cross Feed of Saddle – Hand Wheel Graduation: 0.001 in. / 0.0254 mm
Vertical Feed of Wheel – Hand Feed Per Revolution: 0.05 in. / 1.27 mm
Vertical Feed of Wheel – Hand Wheel Graduation: 0.0001 in. / 0.00254 mm
Grinding Wheel Outside Diameter: 8 in. / 203.2 mm
Grinding Wheel Bore: 1.25 in. / 31.7 mm
Grinding Wheel Width: 0.63 in. / 16.002 mm
Spindle Motor: 2 HP
Power Consumption (220V): 1.5KVA / 4 amps
Floor Area (W x D x H): 55.1 x 39.4 x 70.9 in. / 1400 x 1000 x 1800 mm
Approximate Weight: 1,540 lbs. / 698.53 Kg
