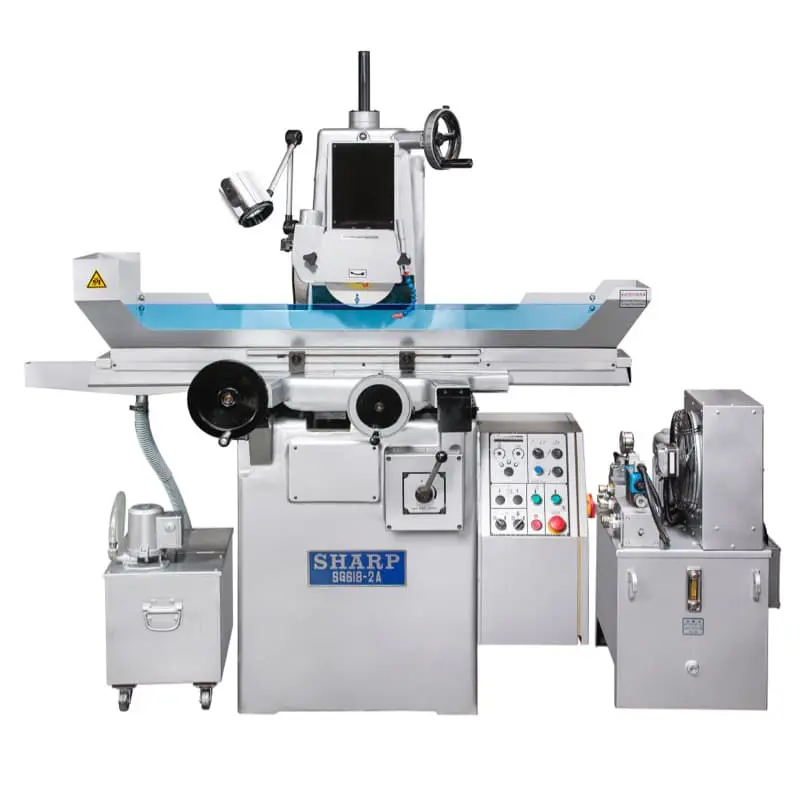

NEW SHARP SG-618-2A

Max Grinding Length: 19.7 in. / 500.38 mm
Max Grinding Width: 5.9 in. / 149.8 mm
Max Distance Table to Spindle Center (Center Height): 16 in. / 406.4 mm
Table Size: 6 x 18.3 in. / 152.4 x 464.8 mm
Longitudinal Travel: 21.6 in. / 548.6 mm
Cross Travel: 7 in. / 177.8 mm
Longitudinal Feed Of Table – Hand Feed Per Revolution: 2.7 in. / 68.58 mm
Longitudinal Feed Of Table – Hydraulic Feed: 3.3 – 83 fpm / 83.82 – 2,108.2 mm
Cross Feed Of Saddle – Hand Feed Per Revolution: 0.02 in. / 0.508 mm
Cross Feed Of Saddle – Hand Wheel Graduation: 0.001 in. / 0.0254 mm
Cross Feed Of Saddle – Intermittent Feed: 0.006 – 0.4 in. / 0.1524 – 10.16 mm
Cross Feed Of Saddle – Continuous Traverse Feed: 47 ipm / 47 ipm
Vertical Feed of Wheel – Hand Feed Per Revolution: 0.05 in. / 1.27 mm
Vertical Feed of Wheel – Hand Wheel Graduation: 0.0001 in. / 0.00254 mm
Grinding Wheel Outside Diameter: 8 in. / 203.2 mm
Grinding Wheel Bore: 1.25 in. / 31.75 mm
Grinding Wheel Width: 0.63 in. / 16.002 mm
Spindle Motor: 2 HP / 1 KW
Hydraulic Table Motor: 1 HP / 0.75 KW
Power Consumption (220V): 2 KVA / 5 amp
Power Consumption (440V): 2 KVA / 2.5 amp
