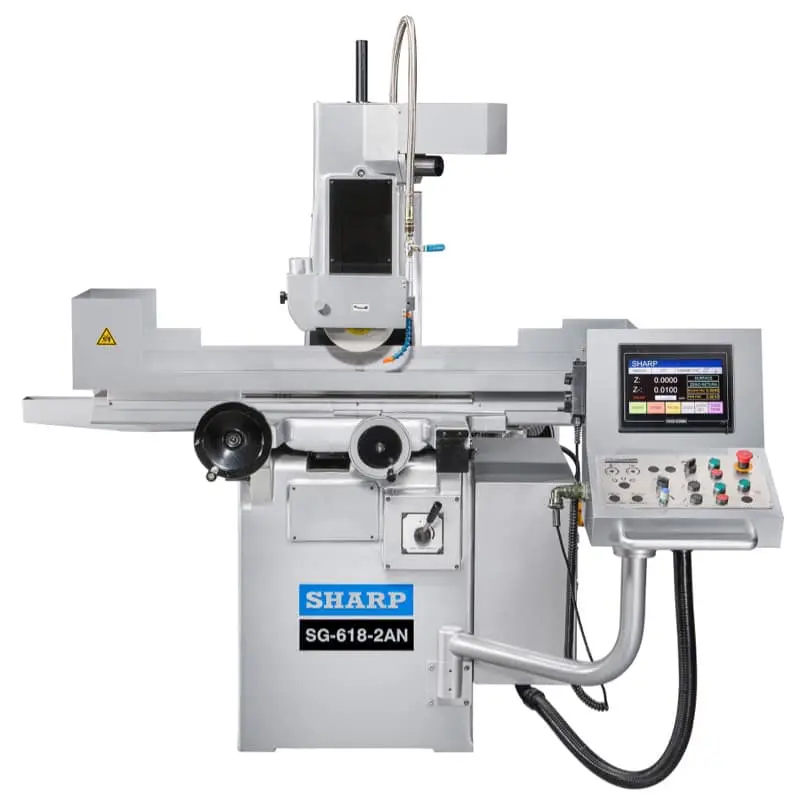

NEW SHARP SG-618-2AN

Max Grinding Length: 19.7 in. / 500.38 mm
Max Grinding Width: 5.9 in. / 149.8 mm
Max Distance Table to Spindle Center (Center Height): 16 in. / 406.4 mm
Table Size: 6 x 18.3 in. / 152.4 x 464.8 mm
Longitudinal Travel: 21.6 in. / 548.6 mm
Cross Travel: 7 in. / 177.8 mm
Hand Feed per Revolution (Longitudinal Feed of Table): 2.7 in. / 68.58 mm
Hydraulic Feed (Longitudinal Feed of Table): 3.3 – 83 fpm / 1,005.84 – 25,298 mm
Hand Feed Per Revolution (Cross Feed of Saddle): 0.02 in. / 0.508 mm
Hand Wheel Graduation (Cross Feed of Saddle): 0.001 in. / 0.0254 mm
Intermittent Feed (Cross Feed of Saddle): 0.006 – 0.4 in. / 0.152 – 10.16 mm
Continuous Traverse Feed (Cross Feed of Saddle): 47 ipm / 1,193.8 mm/min
Hand Feed Per Revolution (Vertical Feed of Wheel): 0.05 in. / 1.27 mm
Hand Wheel Graduation (Vertical Feed of Wheel): 0.0001 in. / 0.00254 mm
Grinding Wheel Outside Diameter: 8 in. / 203.2 mm
Grinding Wheel Bore: 1.25 in. / 31.75 mm
Grinding Wheel Width: 0.63 in. / 16.002 mm
Spindle Motor: 2 HP / 1 KW
Hydraulic Table Motor: 1 HP / 0.75 KW
Power Consumption (220V): 2 KVA / 5 amp
Power Consumption (440V): 2 KVA / 2.5 amp
