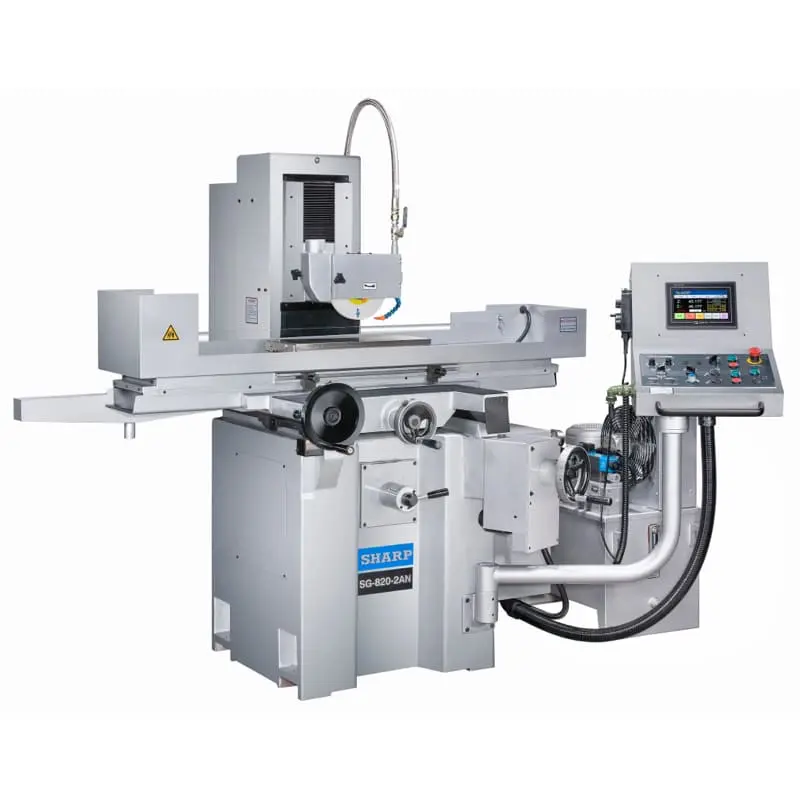

NEW SHARP SG-820-2AN

Max Grinding Length: 21.7 in. / 551.18 mm
Max Grinding Width: 8.7 in. / 220.98 mm
Max Distance Table to Spindle Center (Center Height): 15.7 in. / 398.78 mm
Table Size: 8 x 20 in. / 203.2 x 508 mm
Longitudinal Travel: 23.6 in. / 599.4 mm
Cross Travel: 9.25 in. / 234.9 mm
Longitudinal Feed of Table – Hand Feed Per Revolution: 2.7 in. / 68.58 mm
Longitudinal Feed of Table – Hydraulic Feed: 3.3-82 ipm / 83.82 – 2,082.8 mm
Cross Feed of Saddle – Hand Feed Per Revolution: 0.2 in. / 5.08 mm
Cross Feed of Saddle – Hand Wheel Graduation: 0.0005 in. / 0.0127 mm
Cross Feed of Saddle – Intermittent Feed: 0.006-0.4 in. / 0.152 – 10.16 mm
Cross Feed of Saddle – Continuous Traverse Feed: 47 ipm / 1,193.8 mm/min.
Vertical Feed of Wheel – Hand Feed Per Revolution: 0.05 in. / 1.27 mm
Vertical Feed of Wheel – Hand Wheel Graduation: 0.0001 in. / 0.00254 mm
Grinding Wheel Outside Diameter: 8 in. / 203.2 mm
Grinding Wheel Bore: 1.25 in. / 31.75 mm
Grinding Wheel Width: 0.5 in. / 12.7 mm
Spindle Motor: 2 HP / 1.49 KW
Hydraulic Table Motor: 1 HP / 0.75 KW
Power Consumption (220V): 4KVA / 11 amps
Power Consumption (440V): 4KVA / 5.5 amps
Center Height: 16 in.
Spindle RPM: 3,420 rpm
