Used

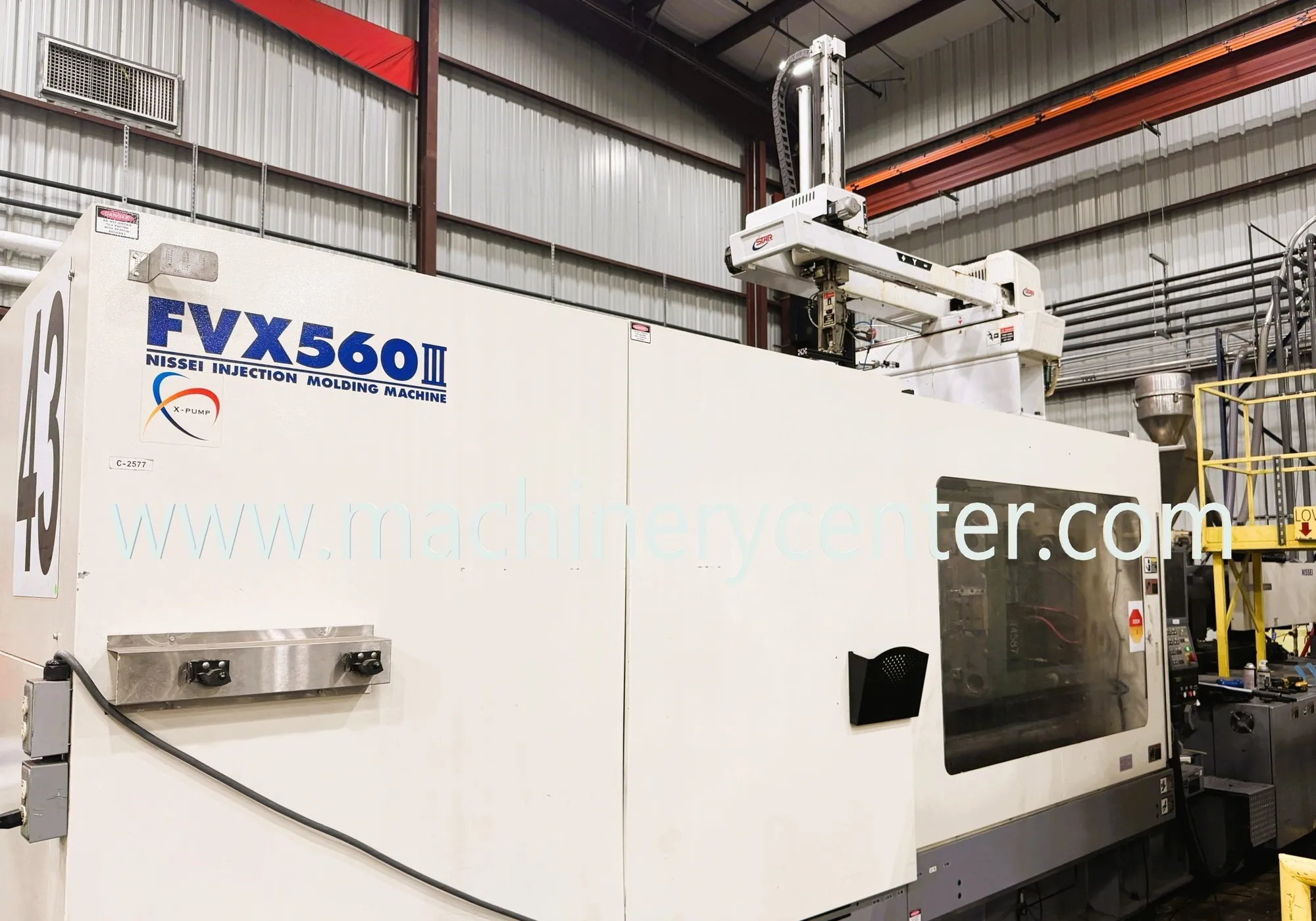

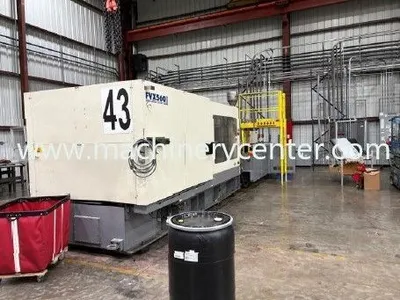

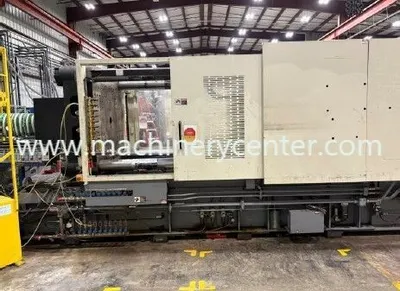

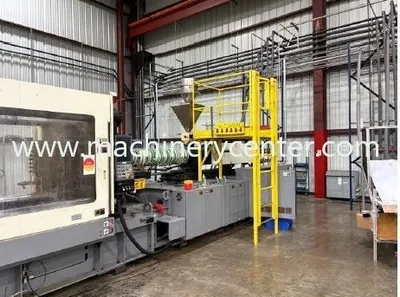

USED 2017 NISSEI FVX560 III - 310L

Tennessee, United States
Asking Price
USD $179,500.00
1 available
859Listings|122Followers
Overview
Injection Molding Machines

618 Ton, 132 Oz. Nissei Hybrid Injection Molding Machine '17
Model: FVX560III-310L
Hours: 23,122

Specs
Year
2017
Tonnage
618
Shot Size
132
Platen Size
53.5" × 53.5"
Tie Bar Spacing
38.2" × 38.2"
Mold Height (Min)
15.7"
Mold Height (Max)
35.4"
Daylight
71.3"
Ejector Stroke
7.1"
Clamp Stroke
35.4"
Screw Diameter
3.5"
Voltage
400 Volt/3 Phase
Core Pull
Yes
Control

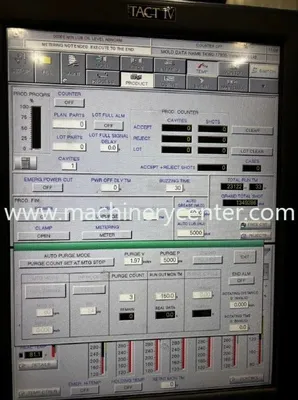

Tact IV
Horz/Vert
Horz
Dimensions
Clamp: 17.6" x 6.9" x 7.2" / Inj. Unit: 14.6" x 5.11" x 6.11"
Weight
Clamp: 45000 Lbs./Inj. Unit: 18,000 Lbs
Equipped With

132 Oz. Injection Unit
Core Pull
Air Blow
Air Blast
