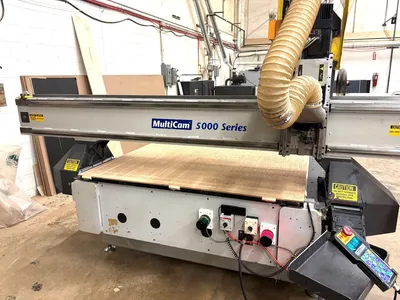

USED 2010 MULTICAM 5000 SERIES

MULTICAM
Model: 5000 SERIES
Year: 2010

High-Speed CNC Router

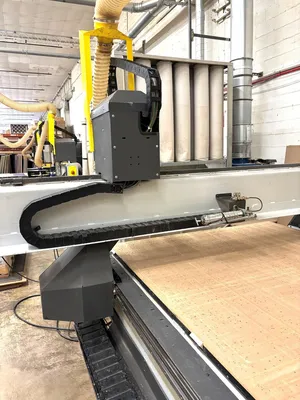

Moving Gantry System
Usage: Plastics, Metals, Woods
OEM: MultiCam (Dallas, TX)
Model: 5000 Series Router
DOM: 2010

System Power: 380 VAC, 3 Phase, 50-60 Cycle, 64 FLA
Spindle Power: 380 VAC, 3 Phase, 50-60 Cycle, 30 FLA

Features and Specifications:

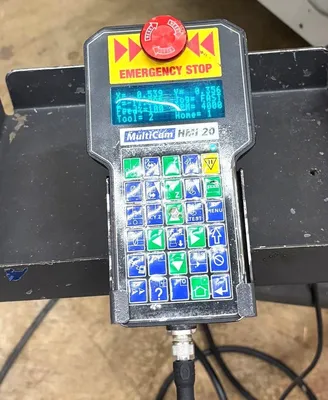

...CNC Controls: MultiCam EZ Control w/ Pendant

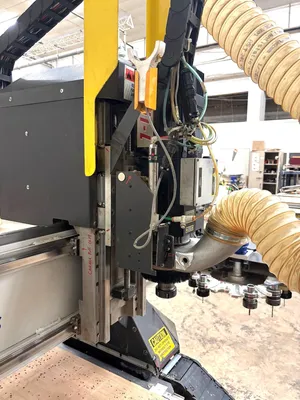

...Tool changer Positions: 12

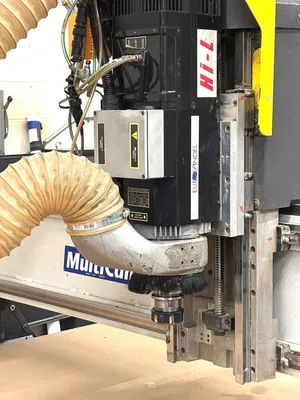

...Spindle Speed: 24,000 RPM (Standard)

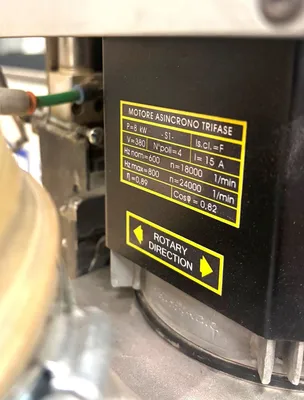

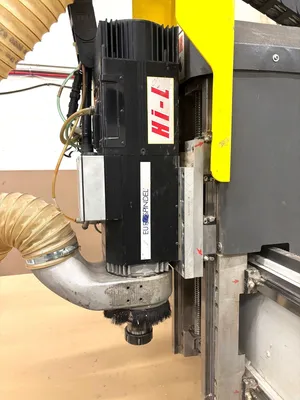

EURO 10HP Spindle
...Cut Speed: 1,800 IPM
...Rapid Traverse: 3,000 IPM
...Z-Axis Clearance: 8"

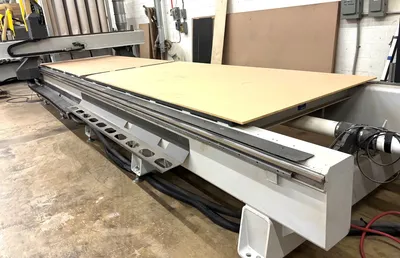

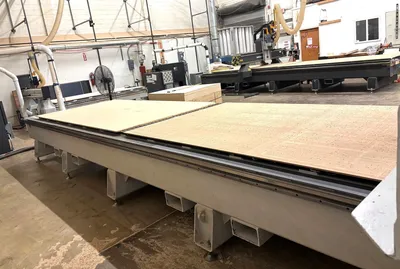

...Table Size: 5' x 20'
...Table Surface: Phenolic w/ Grid Pattern
...Repeatability: 1/1000th Inch
...Helical Rack & Pinion on X, Y Axis
...Ball Screw on Z-Axis
Pneumatic pop up pins

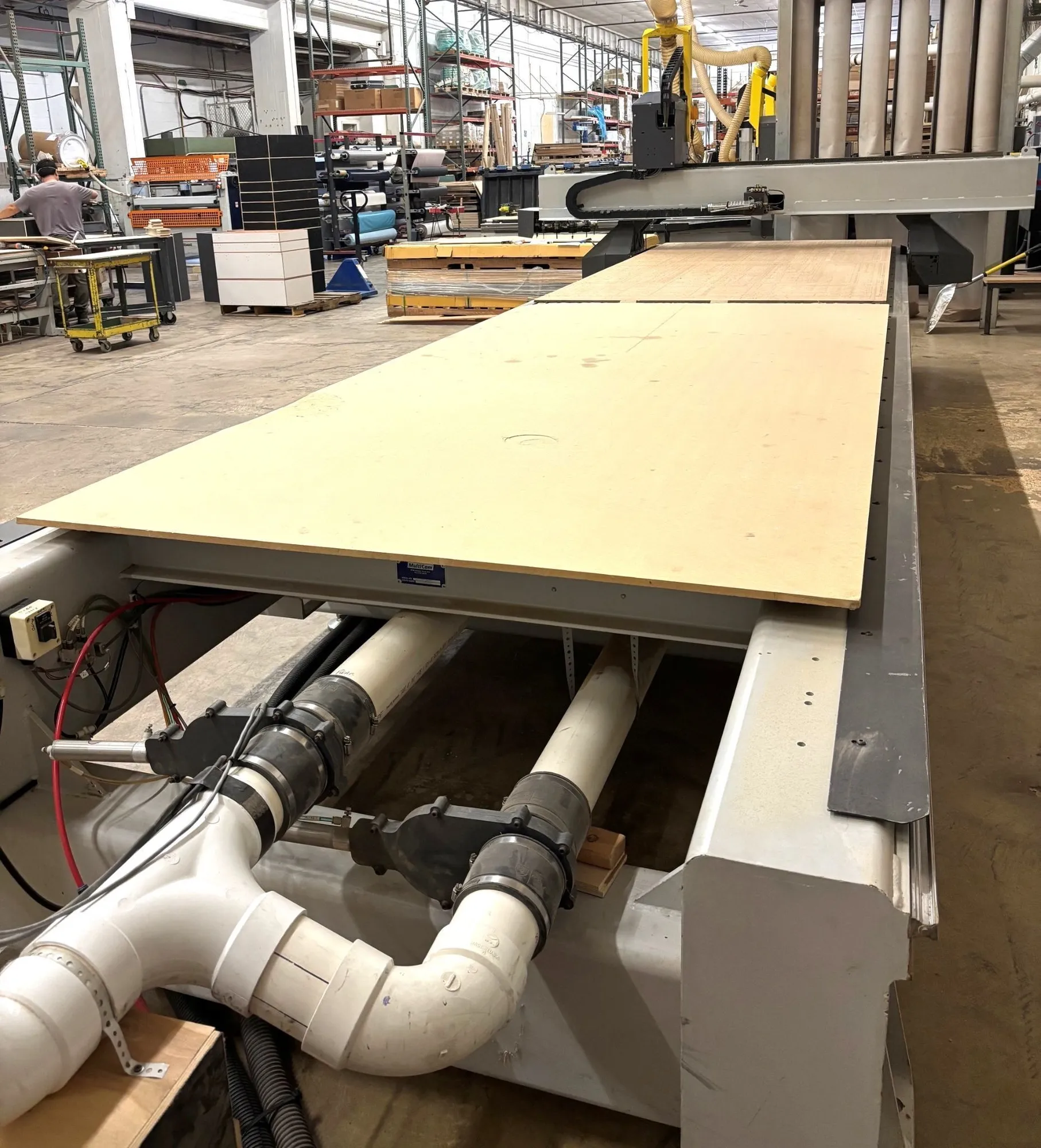

4 zone vacuum table
Additional 8 position bar type tool changer

Machine Size (approx.)256" x 118" x 96"
Working Table (approx.): 61" x 122" (5' x 10')

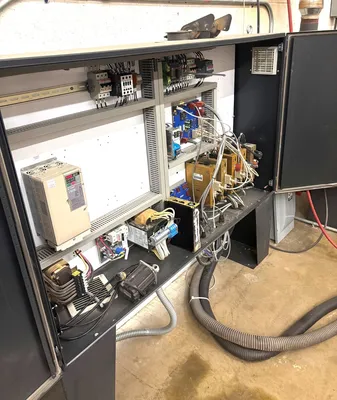

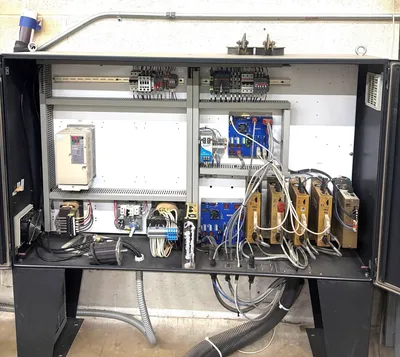

Control Cabinet (approx.): 67" x 16" x 55"
Machine Weight (approx.) 20,000 lbs.

Approximate specifications
