USED 2011 SOUTHWESTERN INDUSTRIES TRAK 2460SX
Overview

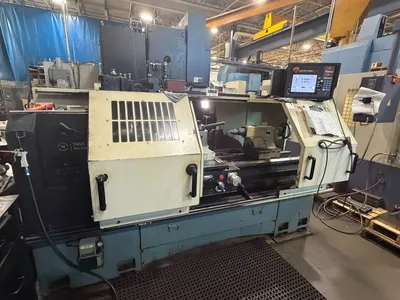

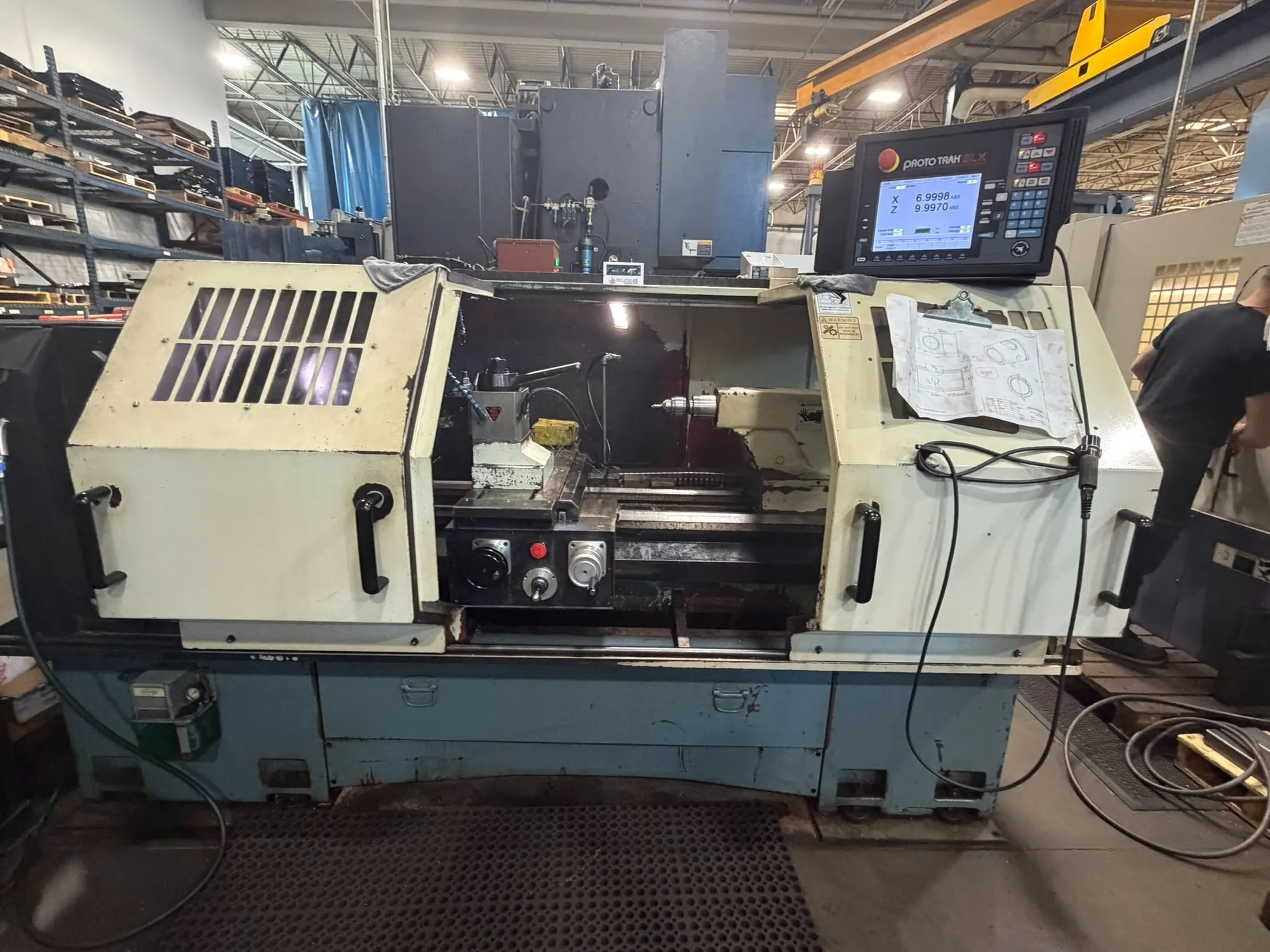

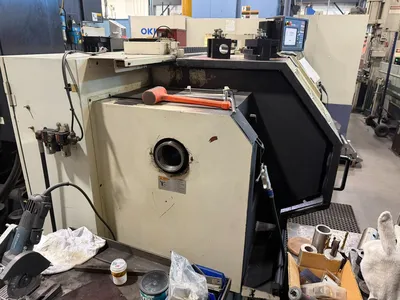

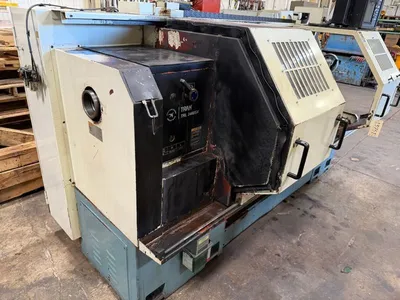

Southwestern Industries Trak 2460SX 2-Axis CNC Lathe, used. Features 24" swing over bed, 60" max distance between centers, and spindle speeds up to 1800 RPM. Equipped with Proto Trak SLX controller, 12" chuck, and coolant system.
Specs
HEIGHT OF CENTERS .......................... 12"
SWING OVER BED ............................. 24"
SWING OVER CROSS SLIDE ..................... 14.5"
MAX DISTANCE BETWEEN CENTERS ............... 60"
CROSS SLIDE TRAVEL (X) ..................... 12.5"
SPINDLE SPEEDS TWO RANGES:
LOW RANGE ............................... 40 - 670 RPM
HIGH RANGE .............................. 100 - 1800 RPM
SPINDLE BORE ............................... 4.09"
SPINDKE NOSE ............................... D1-8
WIDTH OF BED ............................... 15.75
TAILSTOCK QUILL TRAVEL ..................... 6.88"
TAILSTOCK QUILL DIAMETER ................... 3"
TAILSTOCK QUILL TAPER HOLE ................. #5 MT
APPROX WEIGHT .............................. 7,500 LBS
APPROX DIMENSIONS .......................... 114" X 53" X 70"
Equipped With

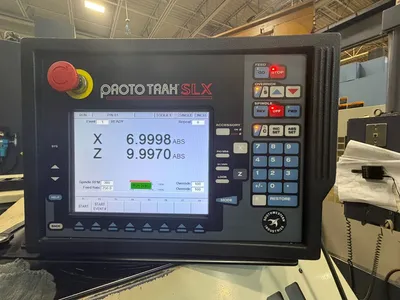

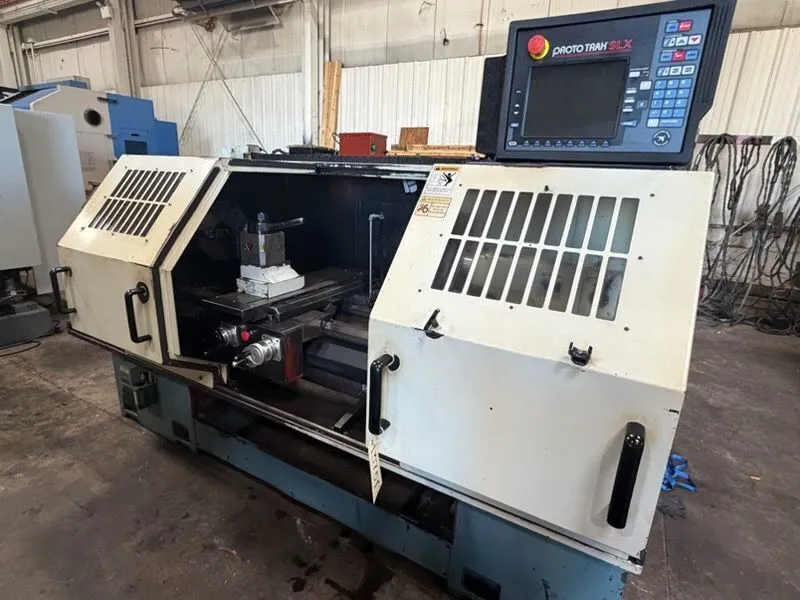

Proto Trak SLX Controller

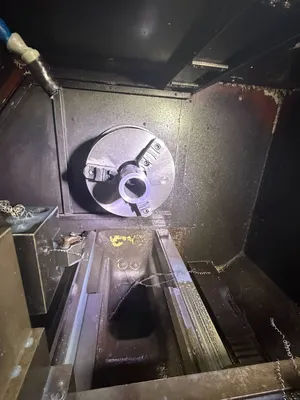

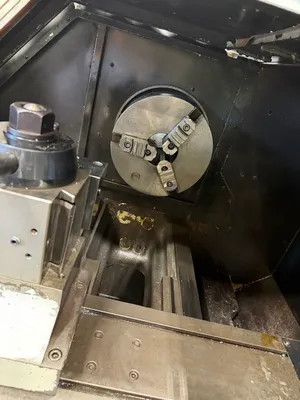

12″ Chuck

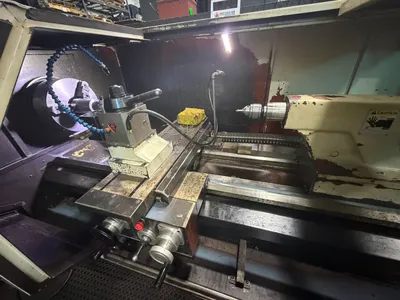

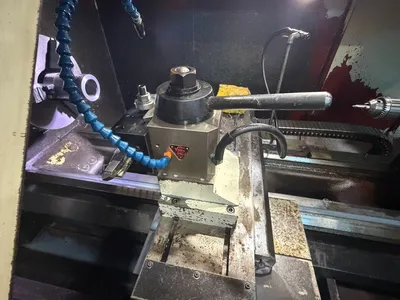

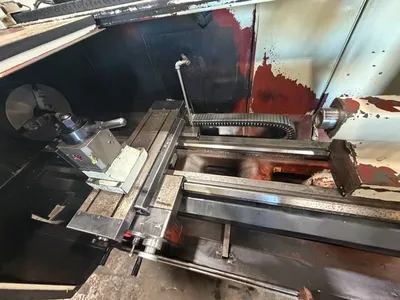

4 Position Tool Post

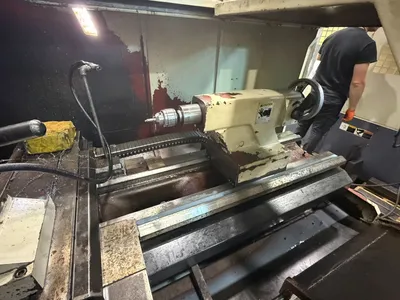

Tailstock
Coolant system
