USED 2002 HARE 25HP
Overview

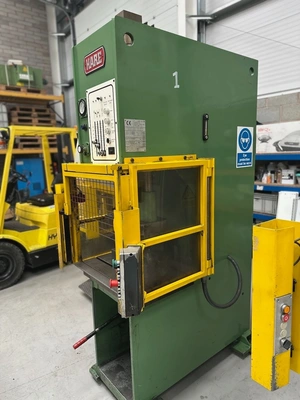

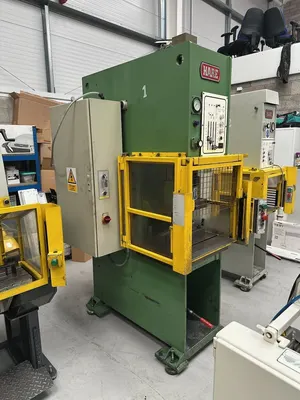

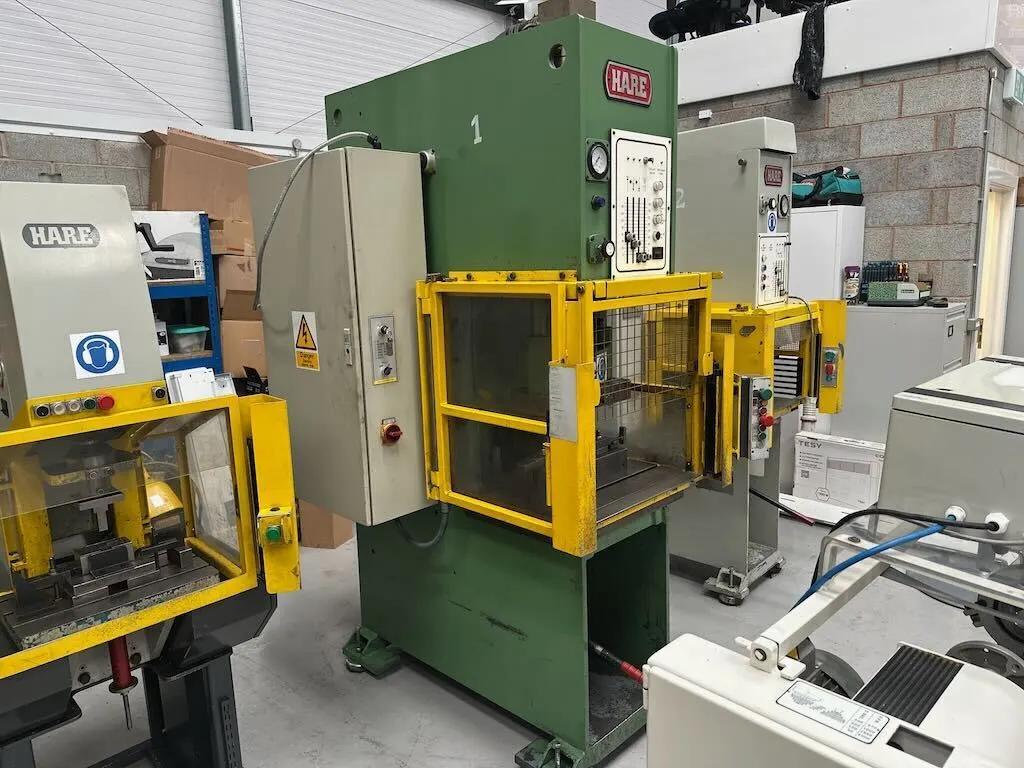

Heavy-duty British-built hydraulic production press suitable for pressing, forming, punching, assembly and general production work.

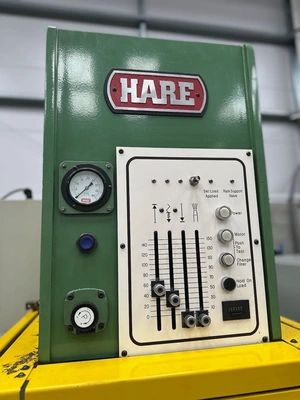

Fitted with adjustable ram/stroke and load controls, hold-on-load facility, ram support system, tonnes/kN load gauge, guarded working area and light-screen safety protection.

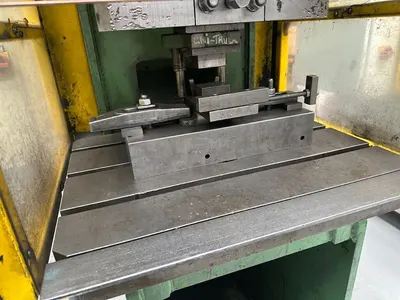

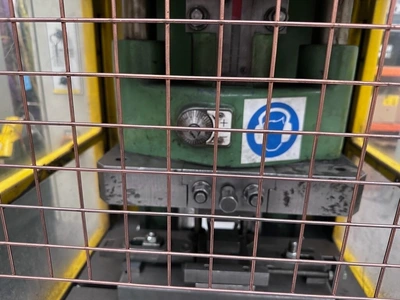

The machine is equipped with a substantial 650 x 480 mm T-slotted bed, approximately 450 mm maximum daylight, 250 mm throat depth and a 680 x 300 mm guard opening.
Powered by a 7.5 kW hydraulic motor from a 415 V three-phase supply
Specs

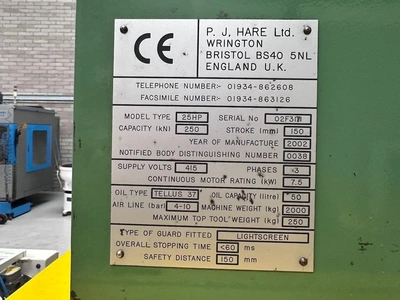

Manufacturer P.J. Hare Ltd
Model 25HP
Year 2002
Serial No. 02F3171
Capacity 250 kN / 25 Ton
Maximum Stroke 150 mm
Bed Size 650 x 480 mm
Maximum Daylight 450 mm
Minimum Shut Height 200 mm
Shut Height Adjustment 100 mm
Throat Depth 250 mm
Guard Aperture 680 x 300 mm
Bed Height 900 mm
Top Platen 420 x 220 mm
Tool Holder Diameter 40 mm
Motor 7.5 kW
Electrical Supply 415 V, 3 Phase
Air Supply 4–10 Bar (plate rating)
Oil Capacity 50 Litres
Machine Weight 2,000 kg
Maximum Top Tool Weight 250 kg

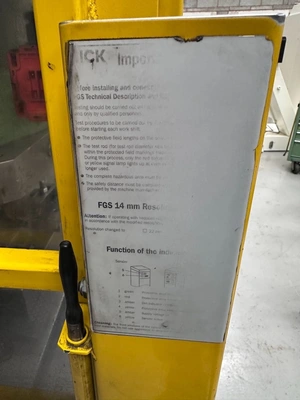

Safety Guarding Light Screen
Safety Distance 150 mm
Stopping Time <60 ms
Features

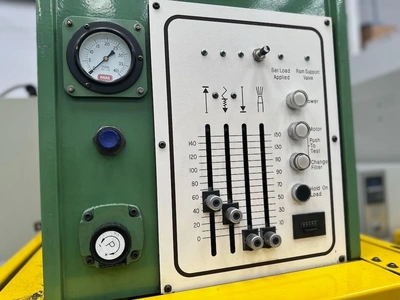

Adjustable ram/stroke positions
Adjustable pressing load
Hold-on-load function
Ram support valve
Set-load indication

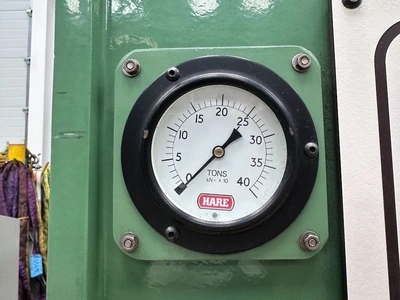

Tonnes / kN load gauge
Hydraulic pressure adjustment
Filter-change indicator

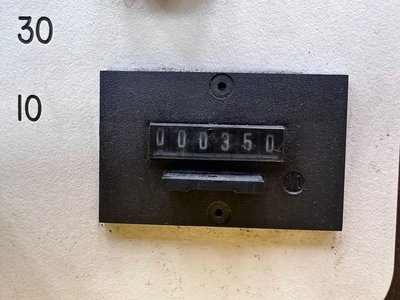

Cycle counter

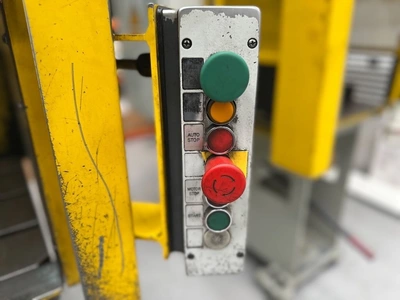

Emergency stop
Light-screen safety guarding

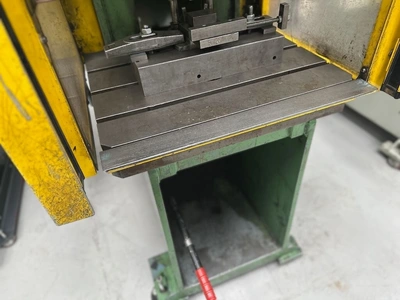

Large T-slotted bolster table
Fitted production tooling
