USED 2003 HAAS SL-30T

Illinois, United States
Your Partners in productivity. 520 Machinery Sales specializes in new and used machine tools sales.
Overview
CNC Lathes

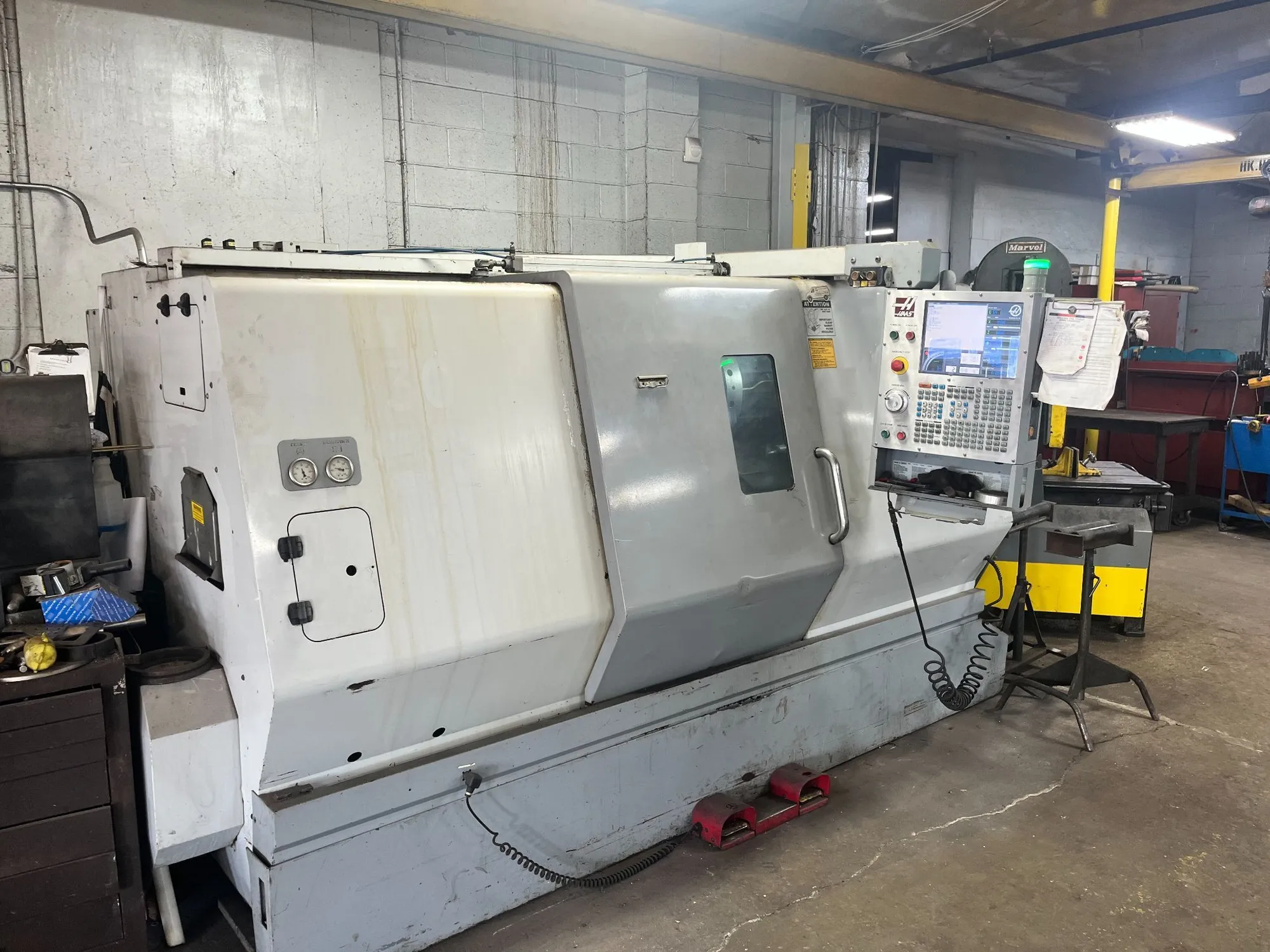

For sale: 2003 HAAS SL-30T CNC Lathe. Features 10" chuck, 30" swing, 32" machining length, 17" turning diameter, and 30 hp. Equipped with programmable hydraulic tailstock, chip conveyor, tool presetter, and VDI turret. Machine runs great and includes the tool holders. Available for inspection under power.

Specs
Chuck Size
10"
254 mm
Swing
30"
762 mm
Machining Length
32"
812.8 mm
Bar Capacity
3"
76.2 mm
Live Tooling
No
No
Y-Axis Milling
No
No
Sub Spindle
No
No
# of Turrets
1
1
Turning Dia
17"
431.8 mm
Power
30 hp
22.4 kW
Max RPM
3,400 RPM
3,400 RPM
Tailstock
Yes
Yes
Control
CNC (Haas)
CNC (Haas)
Dimensions
171" x 90" x 98"
171" x 90" x 98"
Weight
14,300 lbs
14,300 lbs
Equipped With

Auto Door
Programmable Hydraulic Tailstock
Chip Conveyor
Tool Presetter
10" 3 Jaw Chuck
VDI Turret with all available tool holders
3 Phase/480 Volt High Voltage
