USED Dake 18-479
Overview
50 TO DAKE "18-479" 4-POST HYDRAULIC DIE TRY-OUT SPOTTING PRESS w/SLIDING BOLSTER - Swing Down Top Platen - 45" x 36" Bed & Ram - 34" Stroke - 40" Daylight - 10 HP Hydraulic Unit
Specs

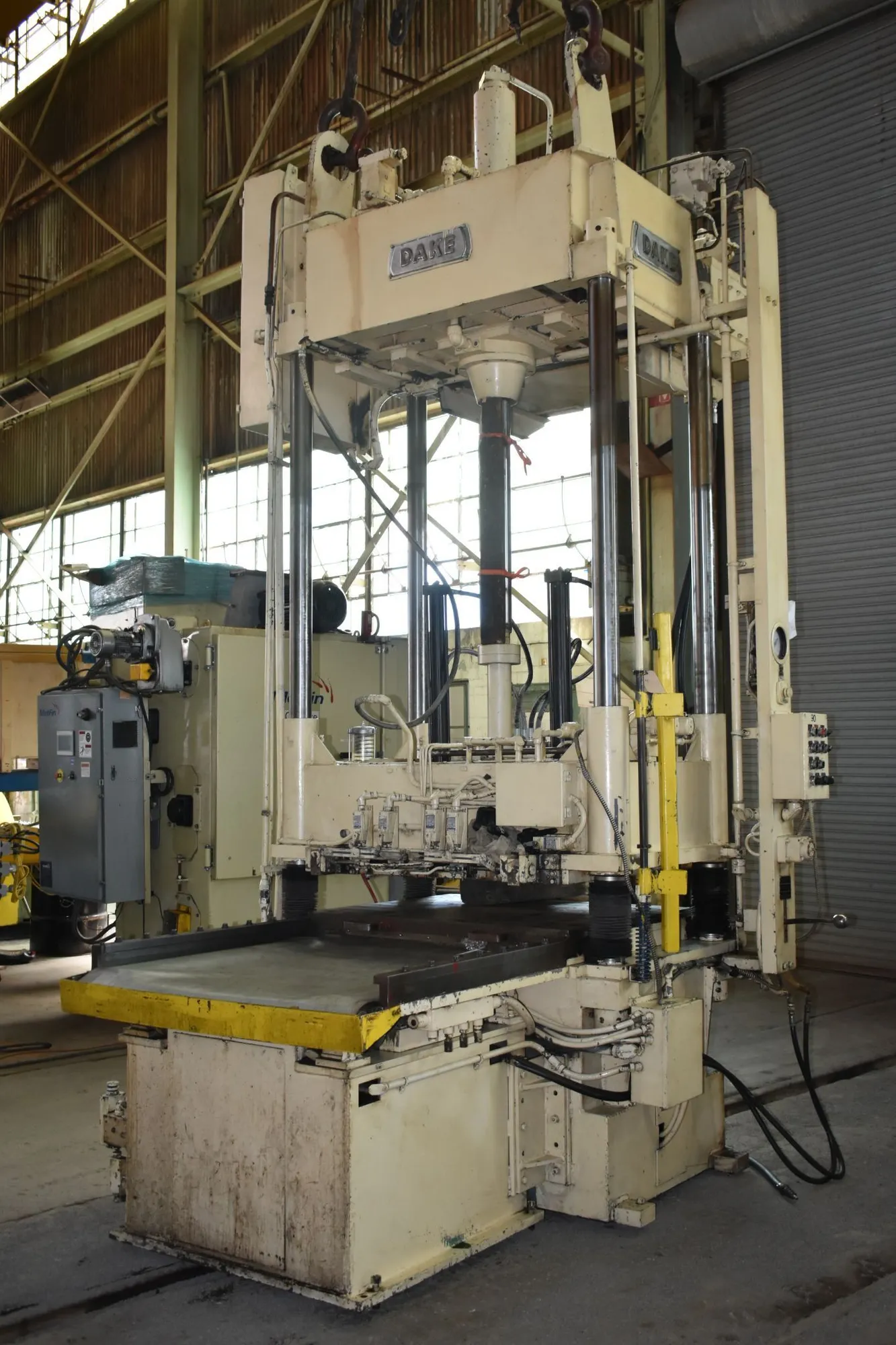

50 TON DAKE 4-POST HYDRAULIC DIE TRY-OUT PRESS
w/SLIDING BOLSTER
Serial No 167166, Model 18-479
EQUIPPED WITH:
4-Post Design w/Tie Rod Construction
Hydraulically Controlled Sliding Bolster
Swing Down Top Platen
10 HP Top Mounted Hydraulic Unit
Graco Automatic Lube System
CATALOG SPECIFICATIONS:
Tonnage Capacity, Down Stroke 50 TON
Tonnage Capacity, Up Stroke 18 TON
Top Ram & Bed Area 36" x 45"
Stroke 34"
Daylight 40"
Stroke Advance 42 IPM
Return Speed 101 IPM
Hydraulic Motor Horsepower/RPM 10 HP/1745 RPM
Electrical SYStem 230-460/3/60
Overall Dimensions, L-R x F-B 90" x 104"
Overall Height 169"
F.O.B. OUR WAREHOUSE
