USED BEIER MACHINERY CO., LTD. QX-MC1000-00

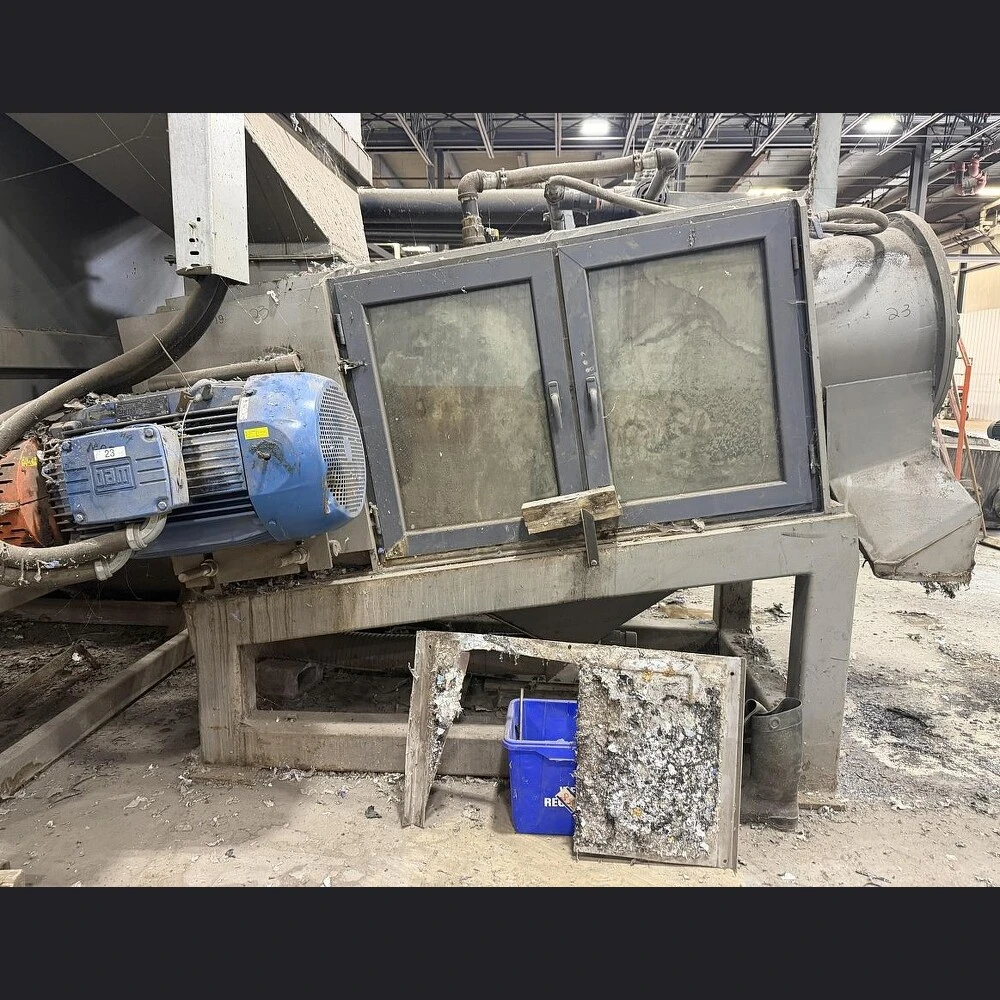

Beier QX-MC1000-00 High Speed Friction Washer

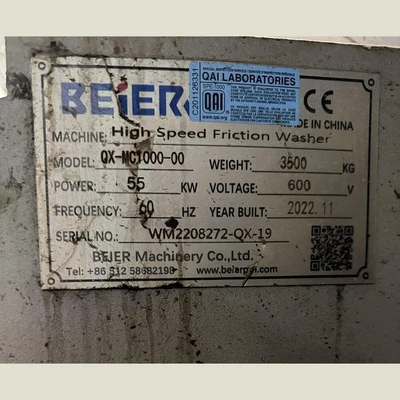

Make: Beier Machinery Co., Ltd.
Model: QX-MC1000-00
Type: Plastic Flake Washer
Style: High-Speed Friction Washer
Year: Nov. 2022
Condition: Used Condition - Functional Unit Removed From Active Plastic Recycling Line
Application: Used in PET, HDPE, LDPE, and PP Plastic Recycling and Washing Systems to Maximize Flake Purity before Melting and Pelletizing
Operation: Fast-Rotating Shaft, Driven by a 55kW Motor, Scrubs Flakes Against Each Other to Remove Dirt, Sand, Adhesive Residue and Other Contaminants, Flushed Out Through a Mesh Screen with Water Jets.
General Model Specifications:
Max Capacity: 500-2000kg/hr.
Weight: 3,500kg

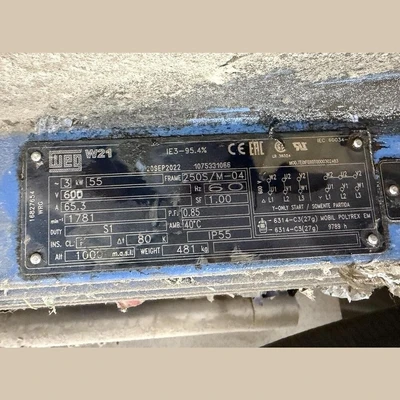

Drive Motor: WEG W21, IE3 (95.4% Efficiency), Frame 250S/M-04, Manufactured 2022
Power: 55kW
Rotating Speed: 1781 RPM
Voltage: 600 Volt
Current: 65.3 Amps
Frequency: 60Hz
Phase: 3-Phase
CE Certified, QAI Laboratories Inspected (SPE-1000 Code)
Integrated Glass-Panel Control Cabinet, Elevated Frame
Feed Hopper and Conveyor Discharge
Max Capacity: 500-2000kg/hr.
Weight: 3,500kg
Drive Motor: WEG W21, IE3 (95.4% Efficiency), Frame 250S/M-04, Manufactured 2022
Power: 55kW
Rotating Speed: 1781 RPM
Voltage: 600 Volt
Current: 65.3 Amps
Frequency: 60Hz
Phase: 3-Phase
Power: 55kW
Rotating Speed: 1781 RPM
Voltage: 600 Volt
Current: 65.3 Amps
Frequency: 60Hz
Phase: 3-Phase
CE Certified, QAI Laboratories Inspected (SPE-1000 Code)
Integrated Glass-Panel Control Cabinet, Elevated Frame
Feed Hopper and Conveyor Discharge
Location: East Central Canada
