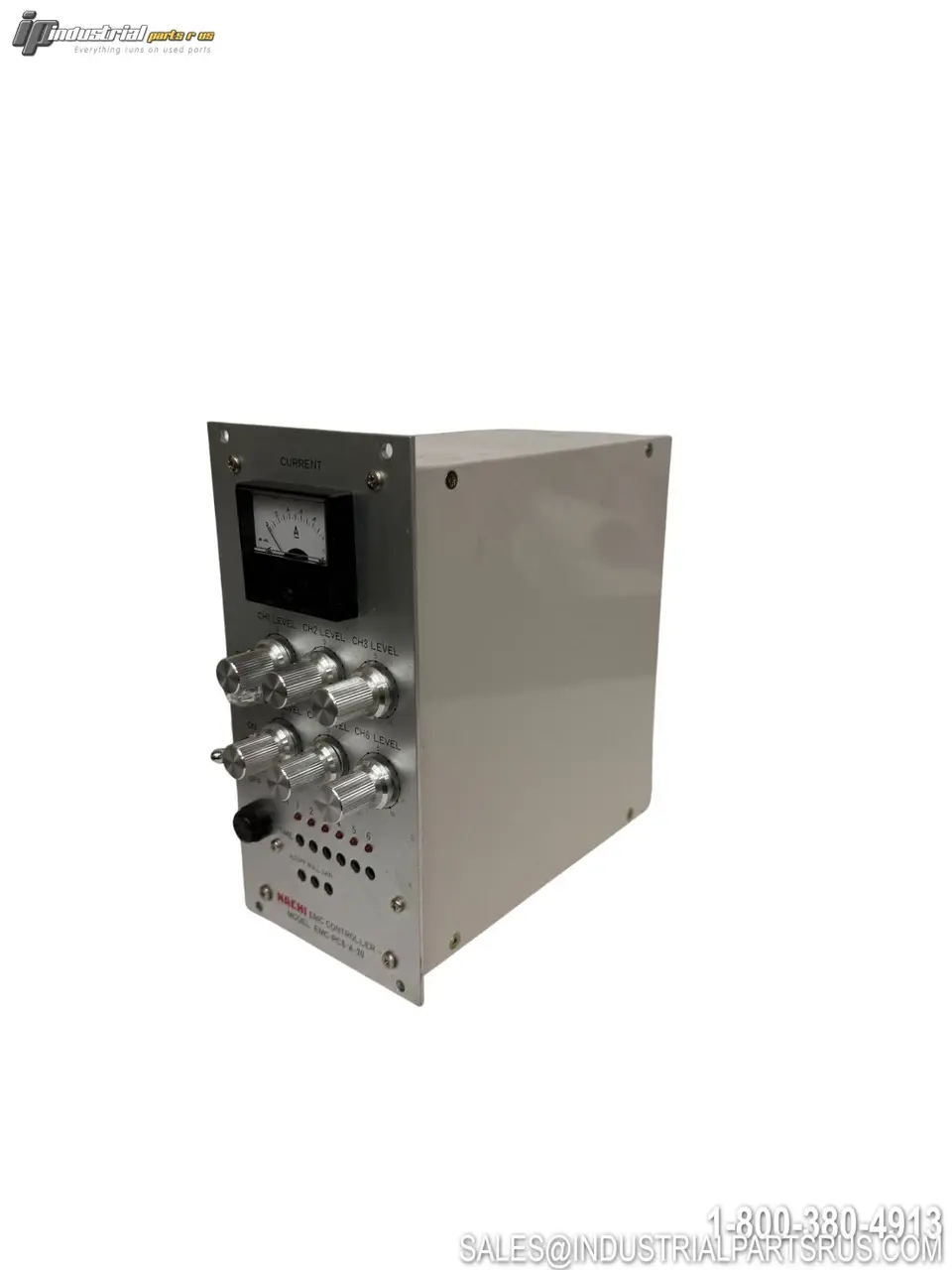

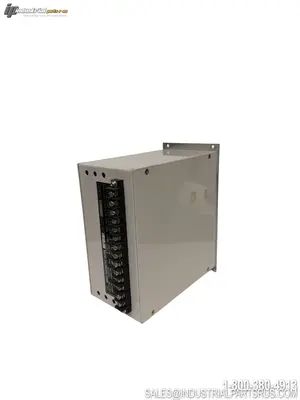

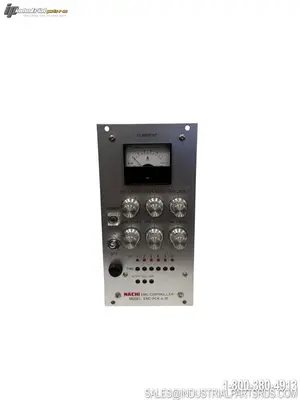

USED NACHI EMC-PC6-A-20

The Nachi EMC-PC6-A-20 is a 6-channel Controller Type power amplifier from Nachi-Fujikoshi's EMA/EMC Series, designed for driving electro-hydraulic proportional pressure, flow, and directional control valves. It performs multi-stage control of output current in response to ON/OFF signals from external contacts such as relay contacts, limit switches, or timer contacts. The unit features built-in command voltage setting potentiometers for each channel, internal dither adjustment, and supports both AC100/110V and AC200/220V power supply inputs.
Specification
Value
Brand
Nachi
Model / Part Number
EMC-PC6-A-20
Manufacturer
Nachi-Fujikoshi Corp.
Series
EMA / EMC Series
Product Type
Controller Type Power Amplifier (Electro-Hydraulic Proportional Valve Drive)
Function
Controller Type (multi-stage current control via ON/OFF external contacts)
Number of Channels
6
Maximum Output Current
900 mA (20Ω solenoid)
Zero Adjust (NULL)
0 to 900 mA
Dither Level
0 to 500 mAp-p (internal, semi-fixed)
Dither Frequency
50 to 220 Hz (internal, semi-fixed)
Supply Voltage
AC100/110V or AC200/220V (selectable)
Command Input
External contact inputs (CH1–CH6); relay contacts, limit switches, timer contacts
Built-in Command Voltage Setting
Yes (potentiometers, 1-rotation adjuster knob)
Output

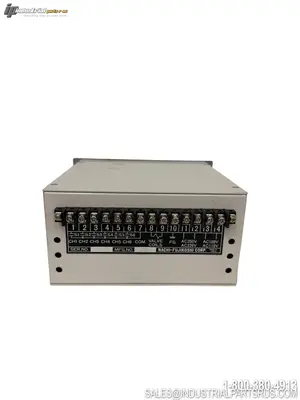

Direct to valve coil (terminals 8 & 9)
Compatible Valve Types
Electro-hydraulic proportional pressure, flow, and directional control valves
Mounting Type
Panel Mount
Width
10 in (254 mm)
Height
8 in (203 mm)
Depth
12 in (305 mm)
We warranty all items for 30 days from date of purchase.
