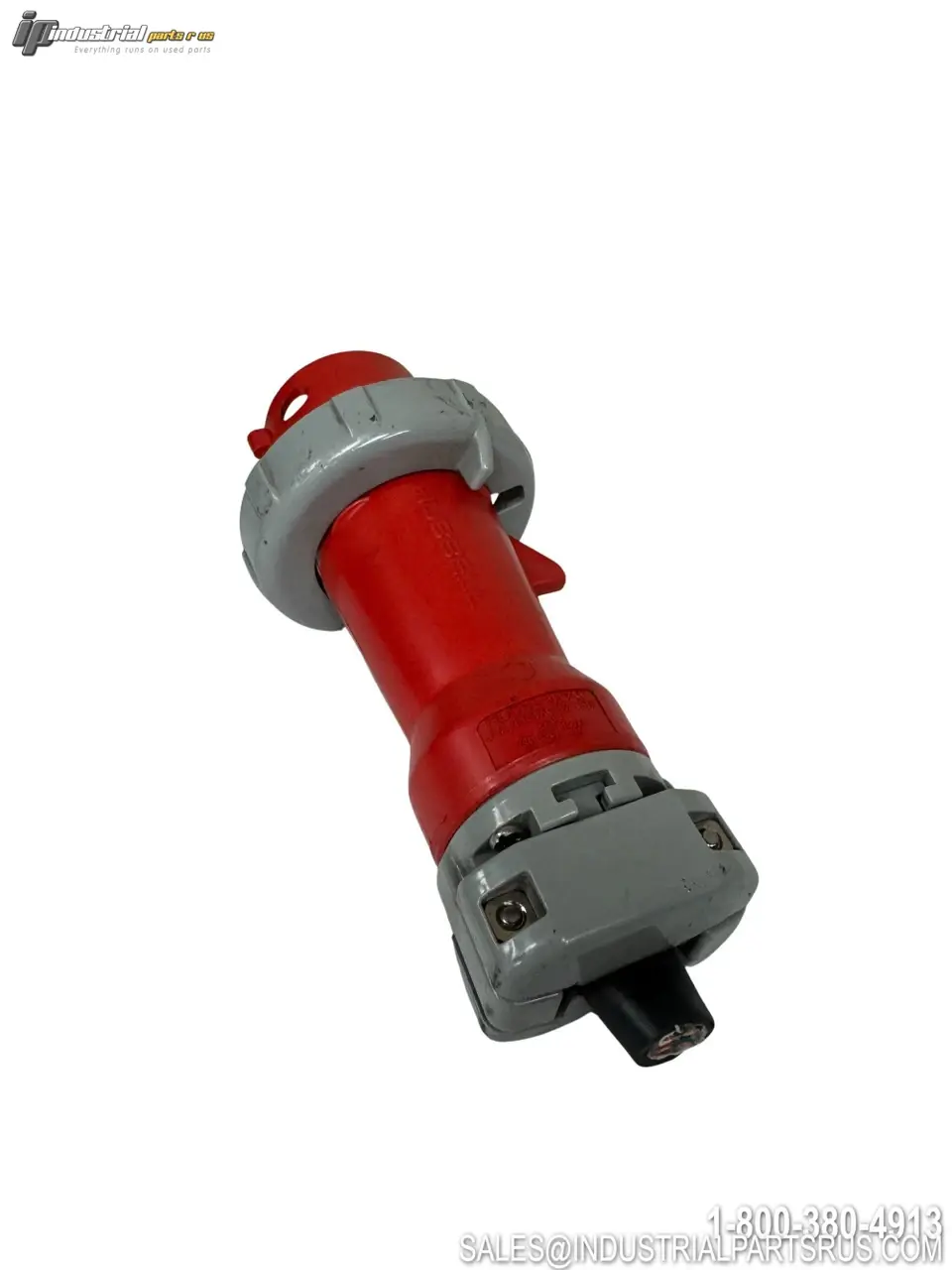

USED HUBBELL HBL430P7W

The Hubbell HBL430P7W is a heavy-duty industrial-grade IEC 60309 watertight male pin and sleeve plug rated for 30A at 480V AC, three-phase (3-pole, 4-wire with ground). Part of Hubbell Wiring Device-Kellems' HBL series, it features a rugged one-piece composite (nylon) housing, silver-plated solid brass pins, thermoset polyester contact carriers, and a neoprene gasketed sealing system to achieve an IP67/IP69K ingress protection rating. The cord-mounted design with an external heavy-duty cord grip provides superior strain relief for portable, high-ampacity industrial power connections including use as a horsepower-rated disconnecting means per NEC 430.109(F).
Specification
Value
Brand
Hubbell Wiring Device-Kellems
Model / Part Number
HBL430P7W
Product Type
IEC 60309 Pin & Sleeve Male Plug (Watertight)
Amperage
30A
Voltage (Rated)
480V AC, 3-Phase Delta
Maximum Working Voltage
600V AC RMS
Dielectric Voltage Rating
3,000V AC Min
Number of Poles
3-Pole
Number of Wires
4-Wire (3P + Ground)
Number of Contacts
4
Phase
3-Phase
Grounding
Yes
Enclosure / Ingress Protection
IP67, IP68, IP69K / Watertight (UL Type 4X)
Mounting Type
Cord Mount (Portable)
Terminal Type
Pressure Screw / Terminal Screws
Conductor / Wire Size
#12 AWG to #8 AWG
Maximum Cable OD
1.25 in
Housing / Body Material
Composite (Heavy-Duty Non-Conductive Nylon), One-Piece
Contact Material
Silver-Plated Solid Brass Pins
Contact Carrier
High-Impact Thermoset Polyester
Cord Clamp Material
Rynite SST35
Sealing Gasket
Neoprene
Color
Red
Operating Temperature
-40°C to +75°C (-40°F to +167°F)
Dimensions (Dia x L)
3.74 in x 8.05 in
Weight
1.3 lbs
Series
HBL (IEC 60309)
NEMA Designation
Non-NEMA
Standard / Compliance
IEC 60309-1 / IEC 60309-2
Certifications
UL Listed (UL 498/1682/1686), CSA Certified (File No. LR280C, CSA C22.2 No. 182.3), RoHS Compliant
Flammability Rating
HB or Better per UL 94 / CSA C22.2
Current Interrupting
Certified for current interrupting at full rated current
NEC Compliance
Meets NEC 430.109(F) – HP Rated Disconnecting Means
Mates With
HBL430C7W (Connector), HBL430R7W (Receptacle), HBL430B7W (Flanged Inlet)
We warranty all items for 30 days from date of purchase.
