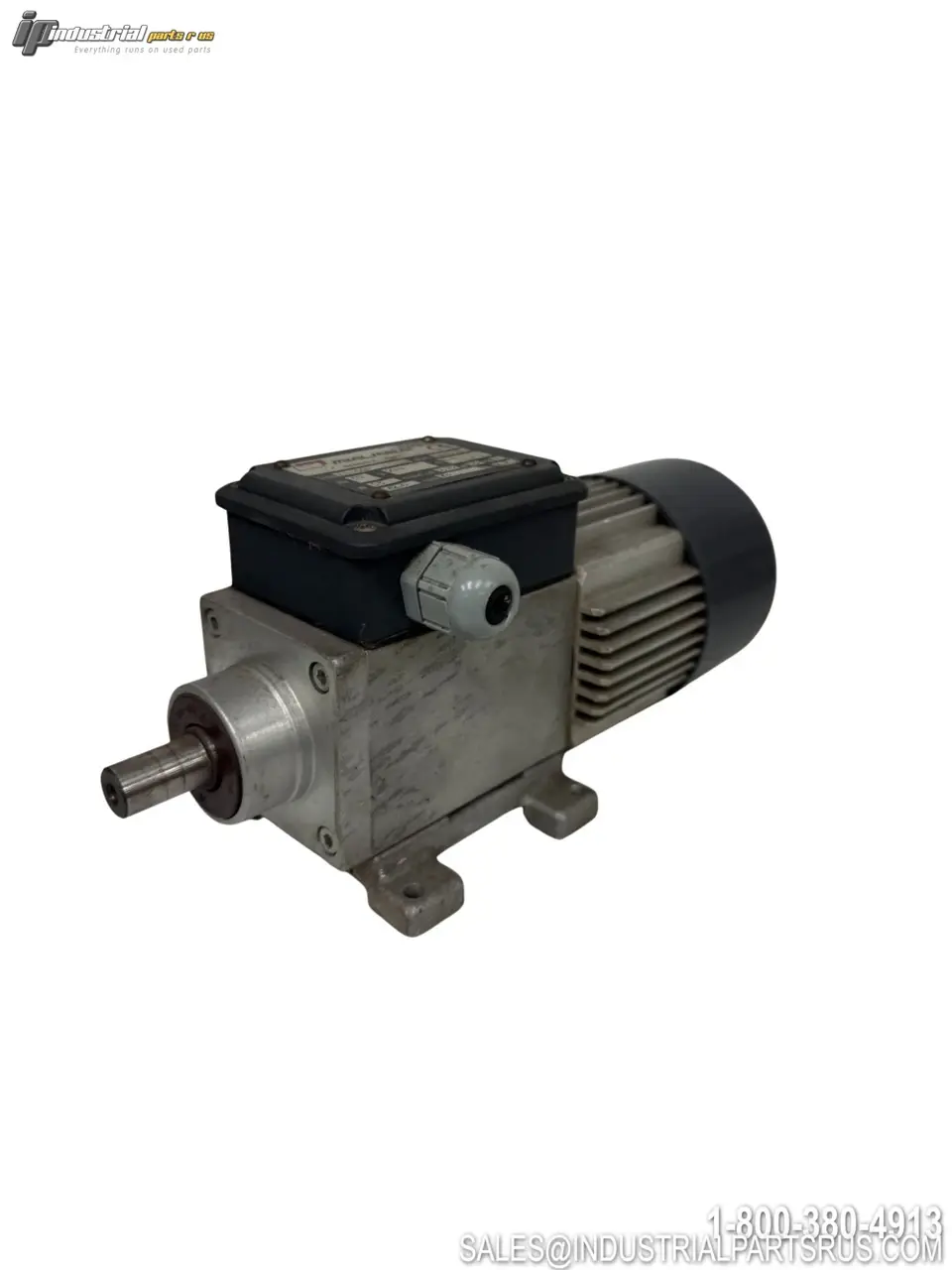

USED MINI MOTOR AC 100P

The Mini Motor AC 100P is a single-phase asynchronous coaxial geared motor with gear pairs, manufactured in Italy by Mini Motor S.r.l. It features a totally enclosed motor with external ventilation, a die-cast aluminium gear unit housing with case-hardened gear pairs, and is designed for applications such as label and packaging machines, conveyors, and pharmaceutical and medical machinery. The AC series offers up to 15 selectable gear ratios and is available in B3 foot or B5 flange mounting configurations. The motor is reversible and includes a built-in thermal cutout for overload protection. 10.9mm Shaft Diameter
Specification
Value
Brand
Mini Motor
Model / Part Number
AC 100P
Product Type
Coaxial AC Gearmotor (Gear Pairs)
Voltage
230V AC
Power Rating (Watts)
35W
Frequency
60 Hz
Full Load Amps
0.41 A
Phase
Single Phase
Output RPM
78 RPM
Output Torque
4.7 Nm
Rated Torque (Series Max)
5 Nm
Gear Ratio (I)
42.6
Available Gear Ratios
15 ratios, 7.4 to 441.9
Capacitor (Cond. UF)
3.15 µF
Insulation Class
Class F (Max 311°F / 155°C)
Enclosure / IP Rating
IP55 (IP65 per OEM spec sheet)
Motor Type
Asynchronous, Totally Enclosed, External Ventilation
Thermal Safety Cutout
Yes (single phase model)
Gear Unit Material
Die-cast aluminium
Gear Type
Coaxial / Inline, Case-hardened Gear Pairs
Bearing Type
Roller Bearings
Lubrication
Long-life oil
Sealing
Special high-temperature rubber sealing rings
Shaft Diameter
10.5mm
Mounting Type
B3 (Foot) or B5 (Flange)
Optional Brake
230V AC (ACKA) or 24V DC (ACKB)
Standards / Compliance
CEI EN 60529
Made In
Italy
We warranty all items for 30 days from date of purchase.
