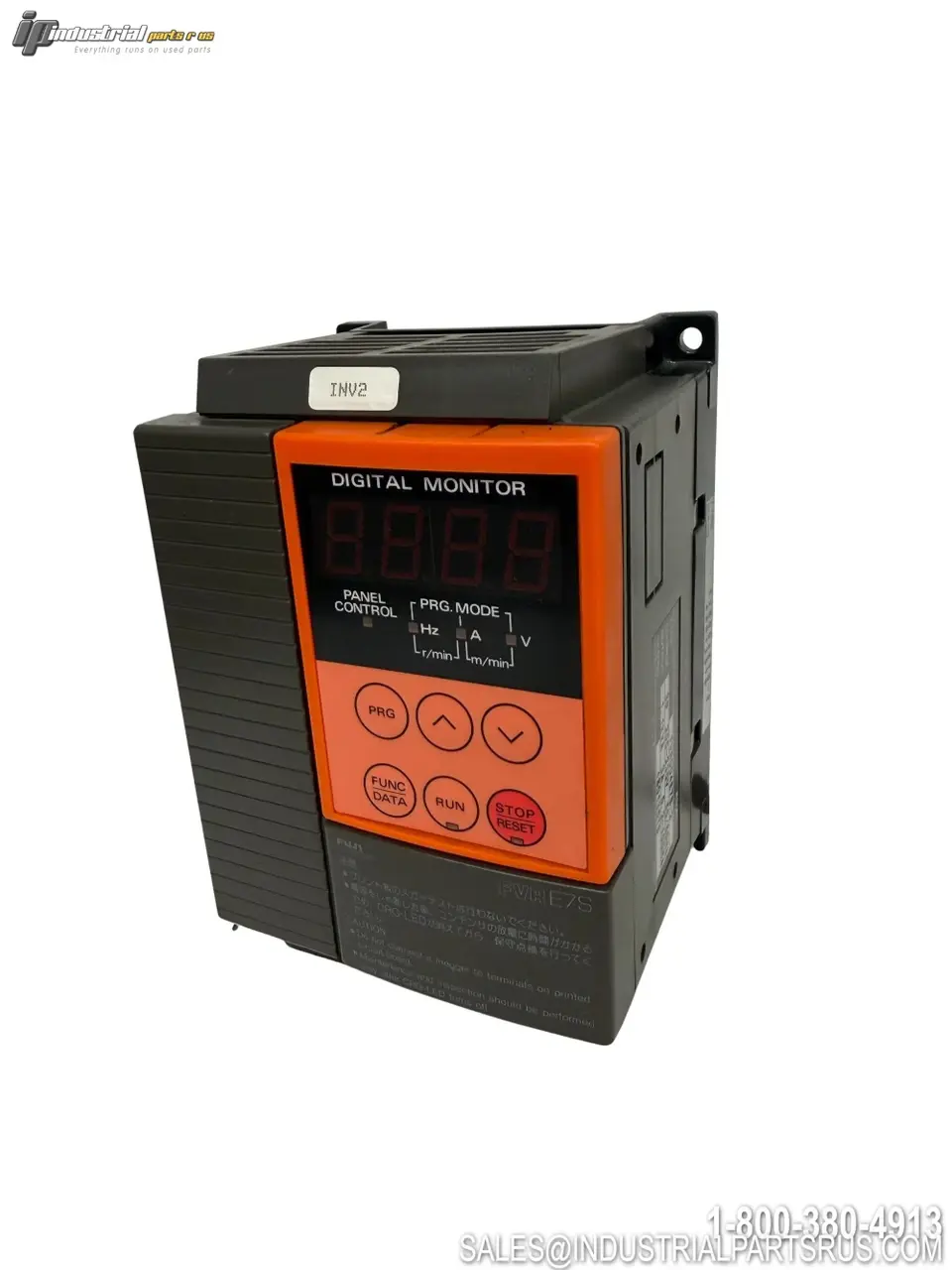

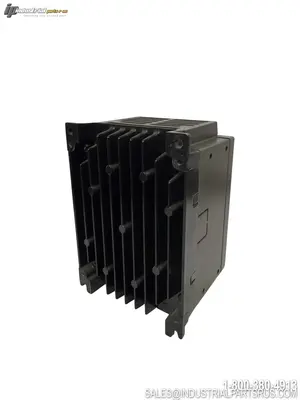

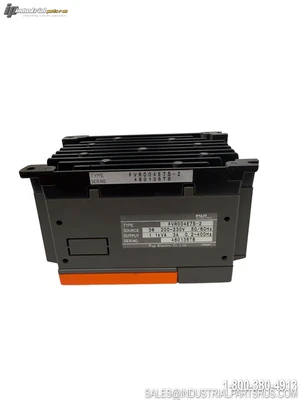

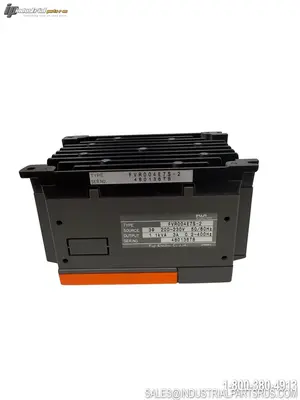

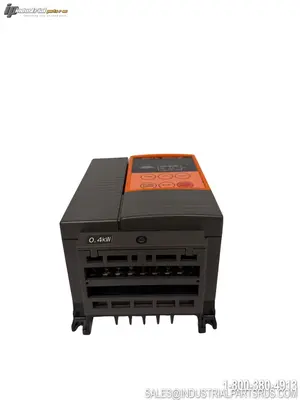

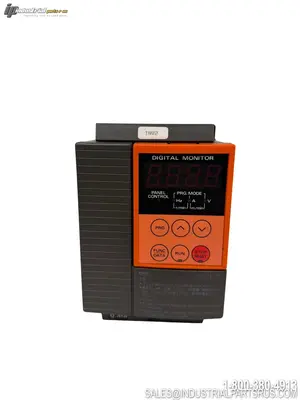

USED FUJI ELECTRIC FVR004E7S-2

The Fuji Electric FVR004E7S-2 is a compact general-purpose variable frequency drive (VFD/inverter) from the FVR-E7S series, designed to control 3-phase AC induction motors rated at 0.4 kW. It accepts a 3-phase 200/230V AC input at 50/60Hz and delivers a variable frequency output from 0.2 to 400Hz with a rated output of 1.1 kVA at 3 amperes. The drive features a built-in digital monitor and provides protection functions including overload, short circuit, and over-voltage protection.
Specification
Value
Brand
Fuji Electric
Model / Part Number
FVR004E7S-2
Series
FVR-E7S
Applicable Motor Power
0.4 kW (0.5 HP)
Input Voltage
200 / 230V AC
Input Phase
3-Phase
Input Frequency
50 / 60 Hz
Output Power (kVA)
1.1 kVA
Rated Output Current
3 A
Output Frequency Range
0.2 ~ 400 Hz
Output Voltage
3-Phase 200 / 230V AC (proportional to input)
Voltage Class
200V Class (-2 suffix)
Control Method
V/f Control, Speed Control, Torque Control
Display / Monitor
Built-in Digital Monitor
Protection Functions
Overload, Short Circuit, Over-Voltage
Product Type
Variable Frequency Drive (VFD) / Inverter
Origin
Made in Japan
We warranty all items for 30 days from date of purchase.
